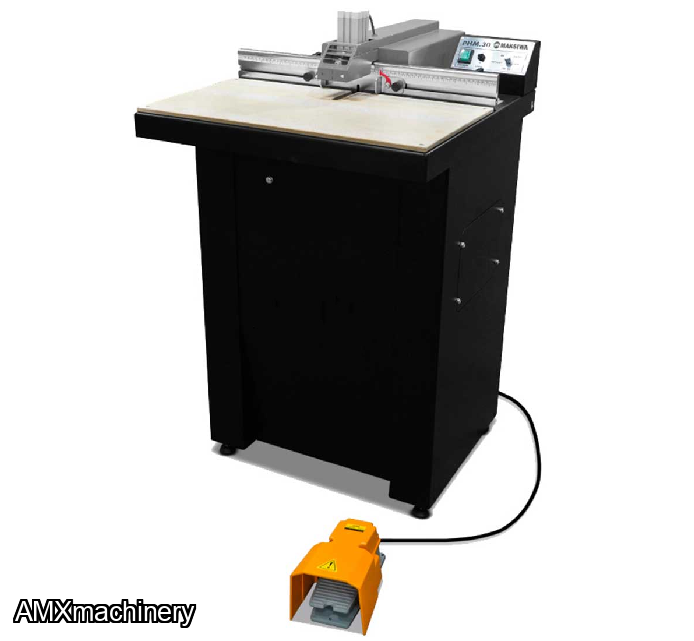

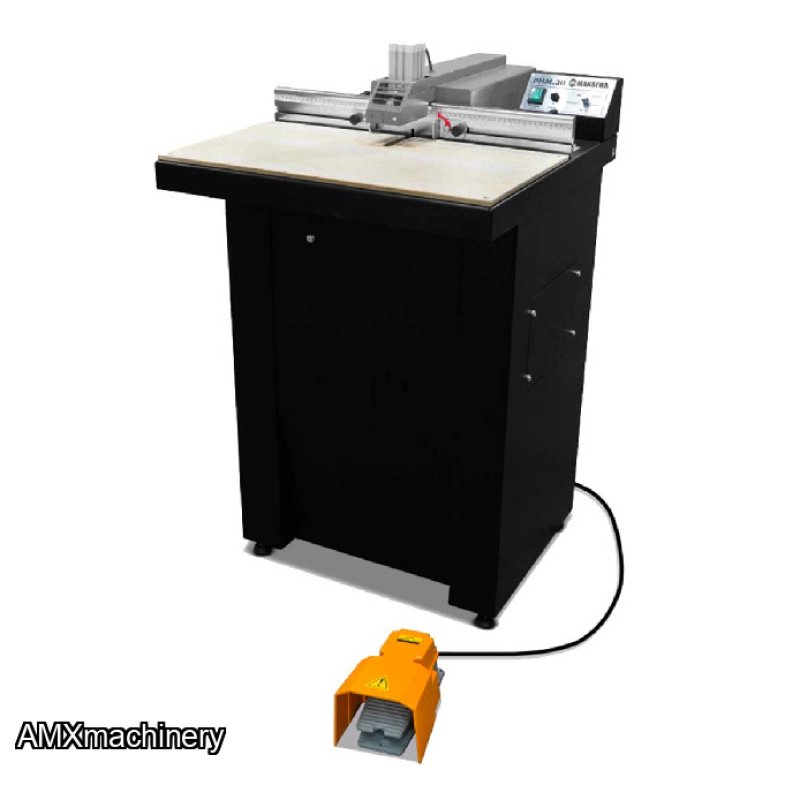

PARTE: 2MK-PHM.30 - BASTIDORA DE UNIONES - 1HP
Is engineered for professionals seeking efficiency and precision in production work. With a simple tap of the foot pedal, this durable machine clamps the stock, routes a pocket, and drills a pilot hole seamlessly.
Designed with a perfect 4º pocket angle, it creates the strongest wood joints for a variety of projects. Powered by a robust 2.25HP Bosch Router and a 1HP Bosch Drill Router, delivers all the power you need to tackle even the most demanding tasks. Ideal for cabinetry, furniture making, and more, this pocket hole machine enhances your workflow and elevates the quality of your craftsmanship.
| Technical Information | |
|---|---|
| Driver Bit Angled | 4° Angle |
| Power | 1PH -127 v |
| Height | 42.5" |
| Router | Bosch 2.25 Hp 16 amp |
| Drill Router | Bosch 1.0 Hp 12 amp |
| Router Bit | 3/8” bit 1/4’’ shank 2 |
| Drill Bit | 1/8” – 2 3/4” |
| Wood Thickness Limit | 1/2” – 1-9/16” |
| Adjustable Fence | Yes |
| Dust Port | 4’’ |
| Air Pressure | 85 psi |
| Footprint | 25” x 30” x 42 1/2" |
| Laser Guide | Yes |
| Speed Control | Yes |
| Dual Sided Top | Yes – Smooth & Textured |
| Depth Gauge | Yes – MM & Inches |
| Weight | 174 Lbs |
Pago y Devoluciones
- Forma de pago
- N/A
Publicar mensaje
Ingresar to ask the seller a question.
-500x500.png)
AMXmachinery1
DOBLADORA DE METAL 10' X 10 GA
DOBLADORA DE METAL 10' X 10 GA PARTE: 2GM-1010EThis machine has a 7 1/2 HP Motor, rated at 220V three phase.Power bending roll up/down with push button & display. 6.70" RollsSO 9001 certifiedTaiwan machinesAll (3) rolls are hardened rolls, up to 50-52 HRC3-rollers are driven to perform high accuracyAdjustable cone attachment included3/8”, ½” and 5/8” grooves on rollersOne wheel one-side operated for bending rollOne wheel one-site operated for ...
-500x500.png)
AMXmachinery1
MAQUINA DE COPEADO
PARTE: 2PI-CMJ -MAQUINA DE COPEADOIs a machine designed for chip free coping or tenoning of either square or profiled parts without the need for a back-up piece or chip breaker. One motor with a belt is a great fit for smaller shops that don’t need to change between multiple profiles.No backer board or chip breakers requiredTear out free parts every timeAccurate spindle adjustment for tool alignmentPart stays fixed while the carriage moves
AMXmachinery1
PARTE: 2CK-JDT75 - ENLAZADORA/COLA DE MILANO
PARTE: 2CK-JDT75 - ENLAZADORA/COLA DE MILANOThis fully automatic machine produces both the pin and tail of the dovetail simultaneously. All four sides of the drawer can be loaded into the machine for optimum production capacity.High-quality finish in both plywood and solid wood drawer box materialFast operation with up to 40 drawer boxes produced in an hourSolid cast iron machine structure for vibration-free dovetailing leading to a long machine lifeSuperior finish with two flute dovetail bitFEA...
-500x500.png)
AMXmachinery1

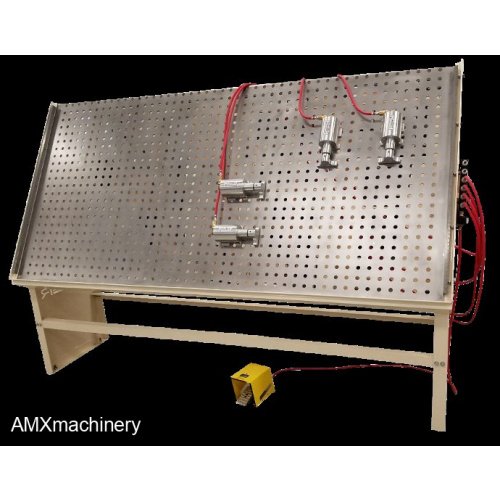

MESA DE MONTAJE - COMBINADO MARCO FRONTAL Y PUERTAS
