Descripción

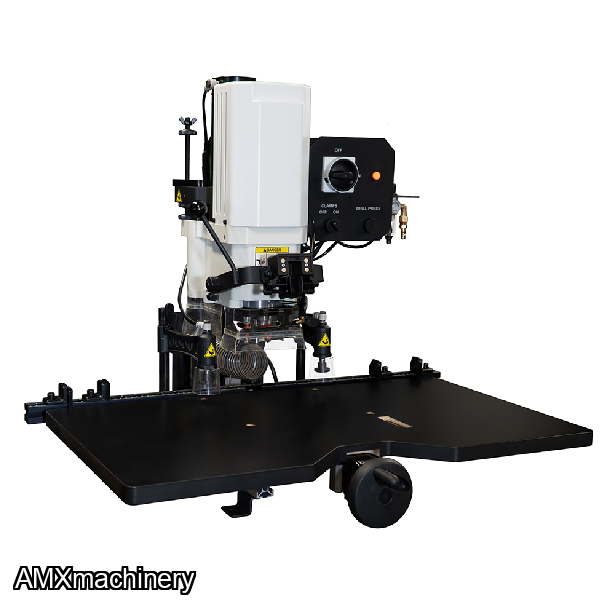

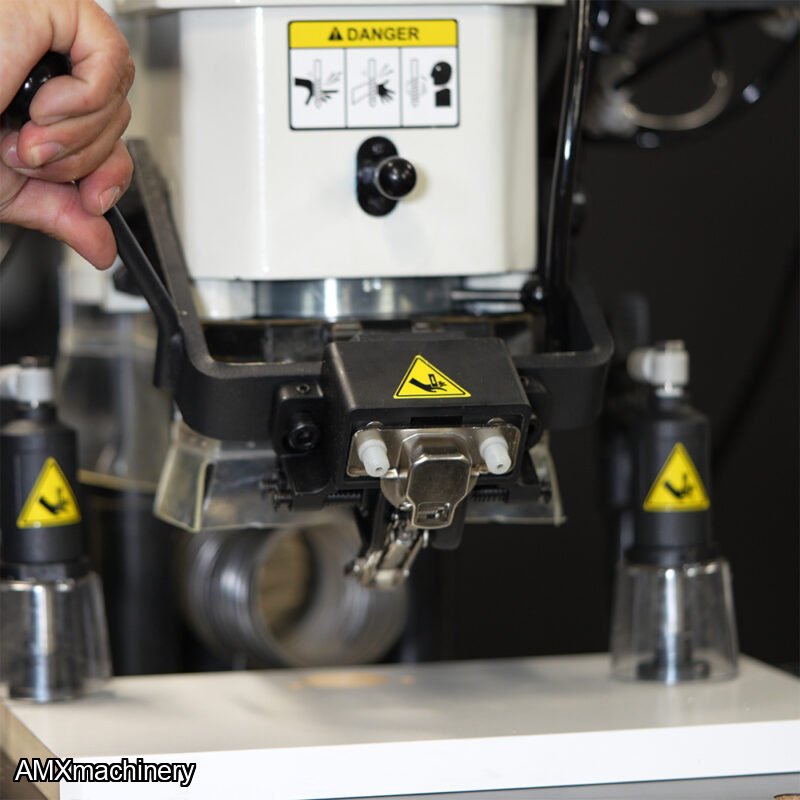

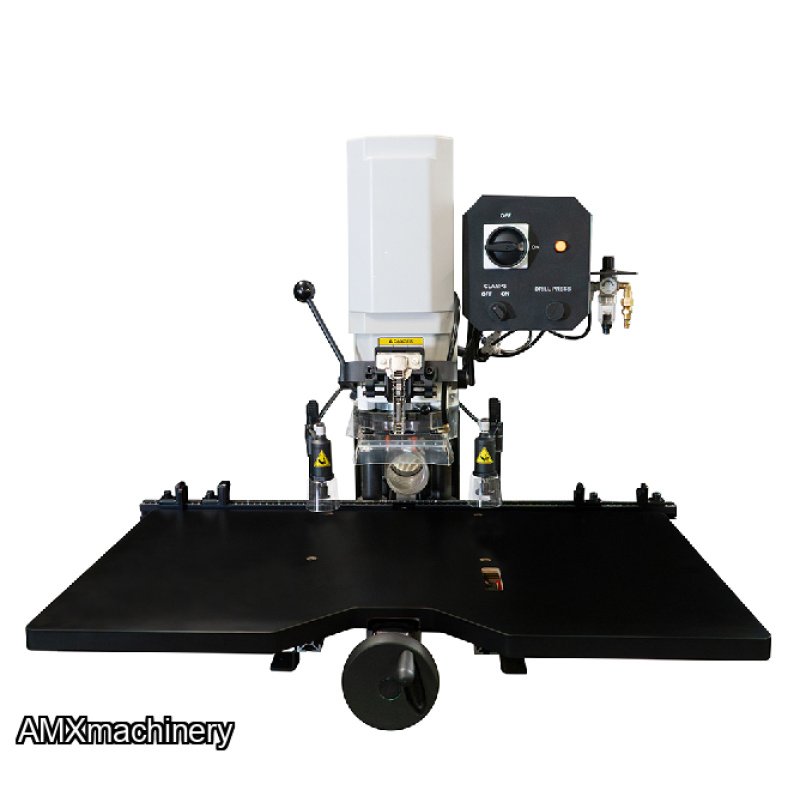

PARTE: 2MK-HBM.1000 - BISAGRADORA - 1.5 HP
Is a compact, high-precision machine designed for efficient hinge and hardware installation in cabinetry and furniture production. Powered by a 1.5HP motor, it delivers accurate 35 mm hinge cup bores using a carbide-tipped bit—ideal for hinges, mounting plates, and connectors.
| Technical Information | |
|---|---|
| Electrical specs | 1 Phase - 110V 13.6 AMPS / 220V 6.8 AMP |
| Motor Specs | 1.5 HP / 1.1 KW 3400 RPM |
| Table Size | 18” x 31 - 1/2” | 460 x 800 MM |
| Machine table height | 5 - 3/8” 136MM |
| Machine table depth | 2- 3/4” 70MM |

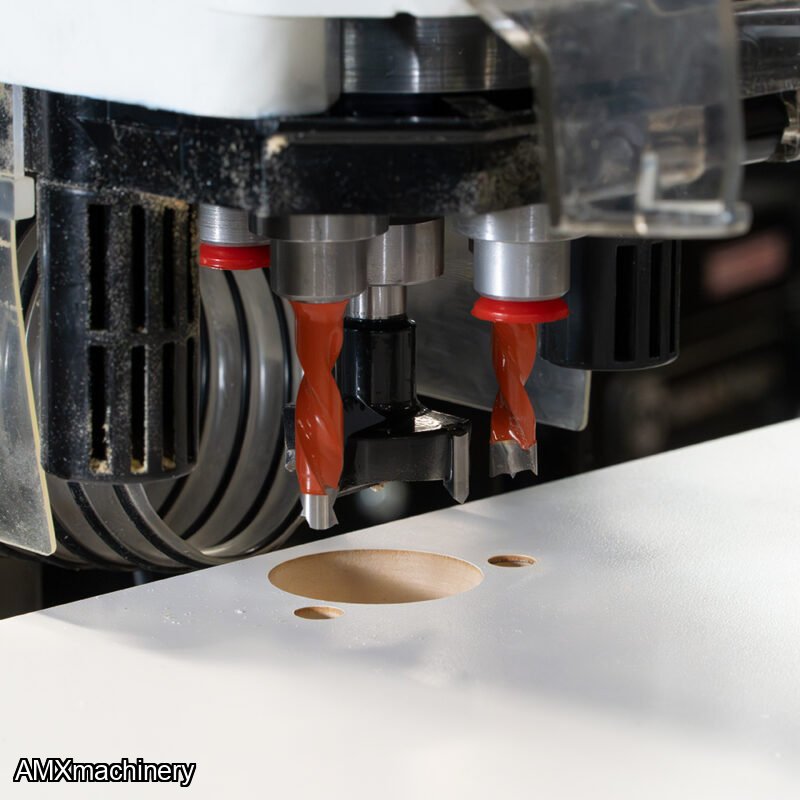

| Hinge boring Bit Diameter | Carbide Tipped - 35mm |
| Hinge boring Bit Rotation | Right |
| Hinge boring shank | 10MM |
| Hinge boring Length | 57MM |
| Drill bits Diameter | Carbide Tipped - 8MM |
| Drill boring Bits Rotation | Left |
| Drill boring shank | 10 MM |
| Machine Dimensions (LxWxH) | 33 7/16”x 28 3/8”x31 1/2” | 850mmx720mmx800mm |
| Number of Stops | 2 Left / 2 Right |
| Maximum Depth of Stroke | 4 - 5/16” | 110MM |
| Boring distance center spindle | 0 - 2 3/4” | 0 - 70 MM |
| Air requirement | 90 PSI - 3 SCFM |
| Machine Weight | 50Kg 110LBS |
| Avg Noise emissions | 78dB |
