Descripción

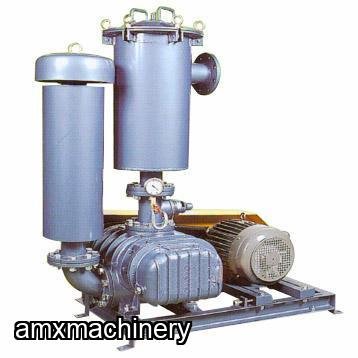

PARTE: 2TA-VC-RT07 – BOMBA DE VACIO – 15 HP – ROOTS TYPE
(VC-RT15) Roots Type Vacuum Blowers
Because there is no friction between the moving parts, the Root Blower allows high-speed rotation for offer a combination high flow-rates vacuum, high exhausting efficiency in medium or high vacuum, wide working range, obvious energy-saving results.
High automation, simple operation, easy maintenance, safe, reliable and durable running.
The Root Blower is a displacement-discharge blower as well as a suction type vacuum pump. The unit uses 2 rotors, in the shape of , rotating in opposite directions, for compressing or extracting the air to enhances precision and efficiency
It also minimizes the maintenance cost and prolongs the life span of the blower to a synchronized gear set. While rotating, the rotor-to-rotor and rotor-to-chamber gaps are maintained fractions of millimeters; therefore no lubrication is required, thus delivering non-contaminated air.
TEFC motor
Specification | VC-RT15 | VC-DR07 |
Max. Pressure (in. Hg) | 13 | 25 |
Max. Capacity (CFM) | 459 | 177 |
Speed (RPM) | 3650 | 1420 |
Motor Power | 15 HP | 7.5 HP |
Inlet size | 2" | 2" |
Weight (lbs) | 680 | 350 |
Machine Size | 56" x 29" x 58" | 38" x 23" x 19" |
Pago y Devoluciones
- Forma de pago
- Visa/Mastercard/American Express
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery
PARTE: 2NV-KDK-18N - SECANTE DE MADERA - CAPACIDAD 20,000 PIES TABLA
PARTE: 2NV-KDK-18N - SECANTE DE MADERA - CAPACIDAD 20,000 PIES TABLAUna estufa propia puede reducir los costos de almacenamiento, producción, transporte y dar valor agregado a su producción.Contactenos para una cotizacion detallada.
AMXmachinery
AFILADORA DE CUCHILLAS PARA MOLDURADORA
PARTE: 2TA-TG-9330 - AFILADORA
DE CUCHILLAS PARA MOLDURADORA
NUEVA CON GARANTIAFEATURES:
Economical model for small shop.
Work table back to front, left to right is moved on linear
bearing cross roller rail sets, accuracy and durability.
Grinding wheel head is micro adjustable and accurate. 2 HP
variable speed control motor for powerful grinding.
Easy setup template holder for accurate copy tracer.
Knife-edge angle is adjusted by dovetails are grooved;
grindin...
AMXmachinery
PARTE: 12676 - JUNTADORA TRANSVERSAL - RUCKLE FZS28.1
PARTE: 12676 - JUNTADORA
TRANSVERSAL - RUCKLE FZS28.1
USADA – BUENAS CONDICONES
Juntadora transversal RUCKLE FZS28.1
Juntado de tiras de chapa pre-encoladas
Largo máximo de trabajo (a favor de la
malla) 2800mm
Ancho máximo de caras/sabanas de chapa
confeccionadas especial, hasta 2700mm malla del través
Reformada en el año 2003, año de
construcción 1976
AMXmachinery
EXTRACTOR DE TURBINA - MOTOR 5 HP
PARTE:
12292 - EXTRACTOR DE TURBINA - MOTOR 5 HP
USADO - MUY BUENAS CONDICIONES - REVISADO Y CHECADO
MOTOR 5 HP, 220V, 3 FASES
3500 RPM
ASPAS METALICAS
ENTRADA REDONDA: 8”
DIAMETRO
SALIDA CUADRADA: 5.5”
X 7”
MEDIDAS TOTALES: 59
CM ANCHO X 52 CM FONDO X 62 CMQ ALTO
