ID: 785
Open
Description

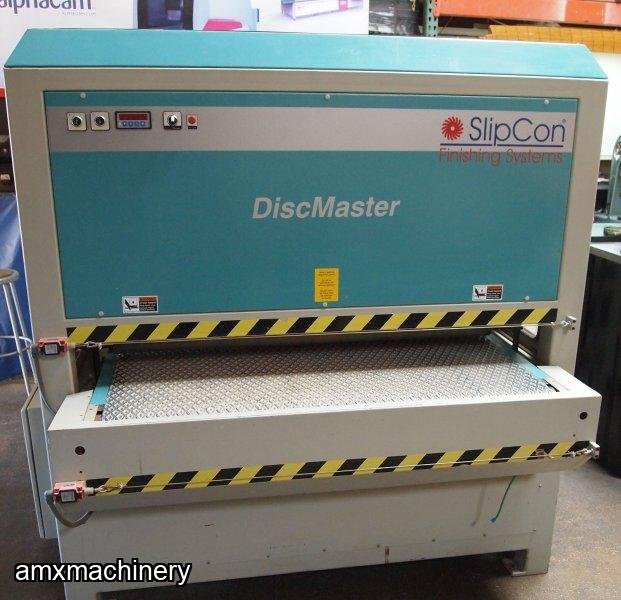

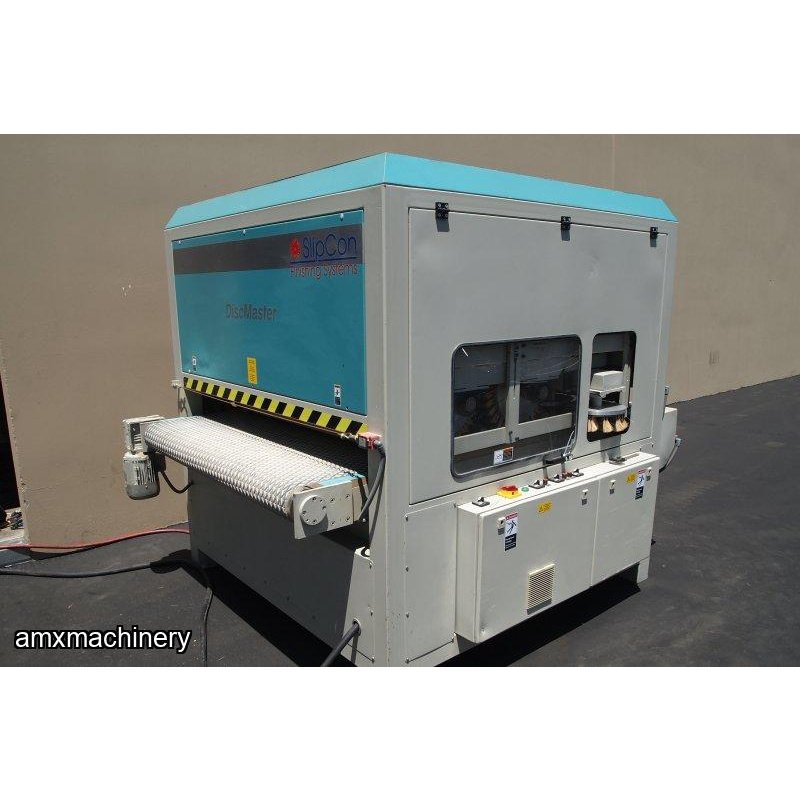

PARTE # 11780 - LIJADORA DE DISCOS Y CEPILLOS - SLIPCON
EN MUY BUENAS CONDICIONES
MODELO: DBB-1350
Specifications
· Working width: 1350mm
· Maximum thickness of work-piece: 100mm
· Minimum thickness of work-piece: 1mm
· Motor disc-station: 1.5 kW with 50-300rpm
· Oscillation: 0.37 kW, 10-40rpm, 100mm
· Motor (each sanding roller): 2.2 kW, 14-300rpm (400mm)
· Diameter sanding roller: 300/400mm
· Speed of feed belt: 3-15 m/min
· 230v, 60Hz 3ph
Standard Features
· Automatic, pneumatically-controlled centering of feed belt
· Motorized height adjustment of sanding unit (constant height of through-feed)
· Easy pull-out of disc-station on left and right for speedy changing of sanding strips
· Separate height adjustment of disc-station from sanding rollers
· Motorized height adjustment of disc-station
· Electronic digital display of work-piece height
· Blowing device for cleaning work-piece
· Antistatic device
Extras
· Vacuum bed/device for holding down smaller work-pieces
Payments & Returns
- Payment Methods
- Visa/Mastercard/American Express
Post Message
Sign in to ask the seller a question.
AMXmachinery
ASTILLADOR SCHUTTE
PARTE # 11802 - ASTILLADOR - SCHUTTE 1360IN GOOD CONDITIONS, AS-ISTop infeed is 21-1/2" x 23".Currently has 1" thick swinging hammers. Screen included (not installed) has 1/2" dia. round holes. Has been modified to a pneumatic discharge.Includes sub base, motor pedestal and permanent magnet installed in infeed chute.
AMXmachinery
PARTE: 12455 - TROMPO - POWERMATIC
PARTE: 12455 - TROMPO - POWERMATIC
USADA - BUENAS CONDICIONES
AMXmachinery
PARTE: 12571 - SIERRA MULTIPLE - MOTOR 30 HP - RAIMANN
PARTE:
12571 - SIERRA MULTIPLE - MOTOR 30 HP - RAIMANN
USADA - MUY BUENAS CONDICIONES
FLECHA LARGO: 23” CON RISCA
FLECHA DIAMETRO: 2.5”
DIAMETRO DISCOS: 12”
MFG: 2001
MOTOR 30 HP, 460V, 3 FASES, 60 HZ, 70 AMP - FALTA CONFIRMAR
LOS 30 HP
PESO MAQUINA: 2,000 KG
AMXmachinery
PARTE: 12172 – TORNO COPIADOR - LOCATELLI BIG ARRIET
PARTE: 12172 – TORNO COPIADOR - LOCATELLI BIG ARRIET
USADO
– BUENAS CONDICIONESFully operationally
over
$9,000 in steady rests and tooling
max.
capacity 4" dia. x 6" length
Sequence
as follows;
roughing
knife
steady
rest
traveling
roughing knife
second
roughing pattern knife
finishing
pattern knife
parting
knife
Also
....if needed
end
boring bit or formed bit
second
end boring bit or formed knife with side sliding movementLocatelli Dime...
