PARTE: 2CK-GT635ARD

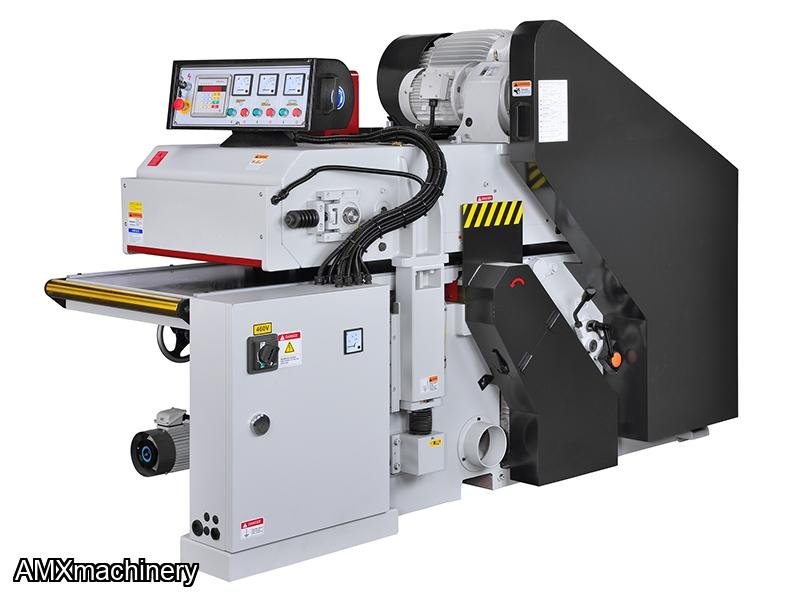

Has a robust cast-iron body for industrial planing day in and day out. The spiral insert knife cutterheads produce a smooth planed finish with maximum stock removal. The material is passed over the bottom head with a spring-loaded pin feed system allowing it to act like a jointer to flatten the board prior to being planed to an accurate thickness with the top head.

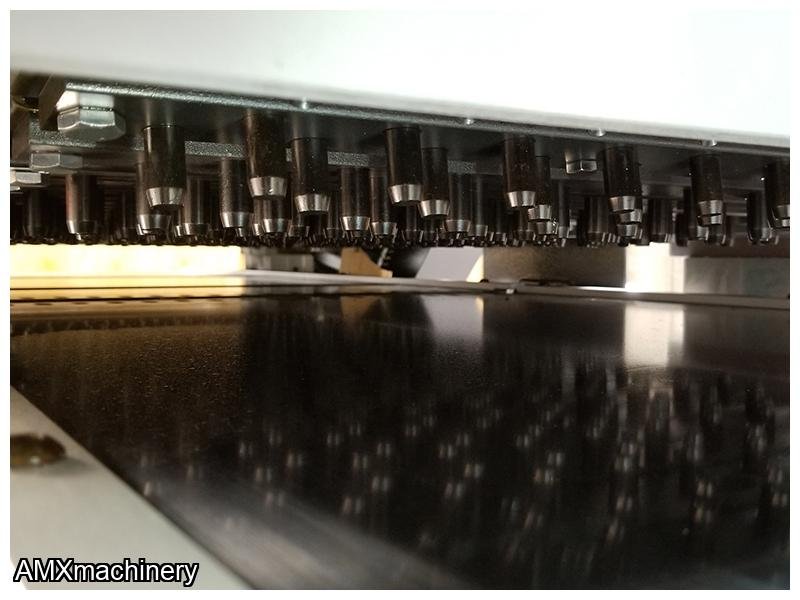

- Spring loaded conveyor pin system ensures material is passed over the bottom cutterhead to resulting in a flat and uniform board prior to planing to thickness on the top head

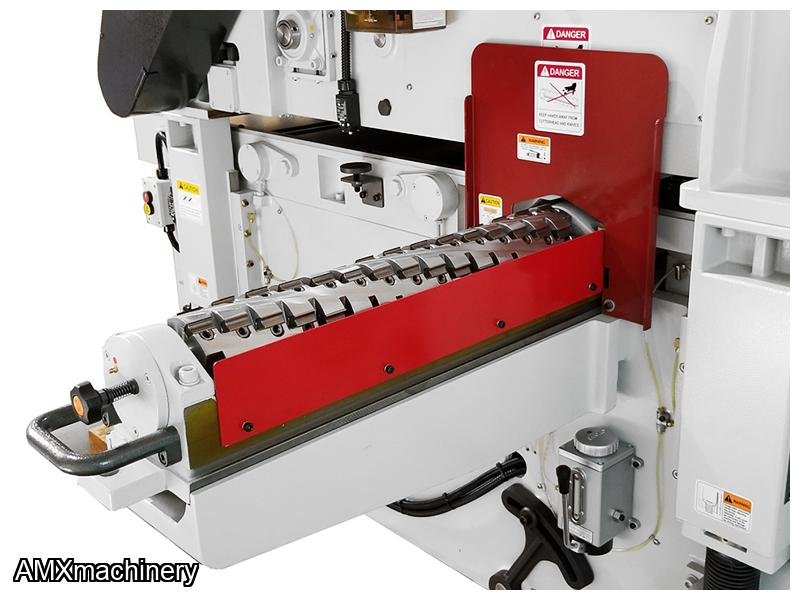

- Spiral insert knife cutterheads with two-sided solid carbide knives produce a smooth finish with increased stock removal capacity and extremely quiet operation
- Heavy-duty cast-iron machine body and table for vibration free cutting
- Digital electronic thickness adjustment in INCH and MM (Inch = 0.001” / mm = 0.01mm resolution) for precise thickness control
KEY ADVANTAGES

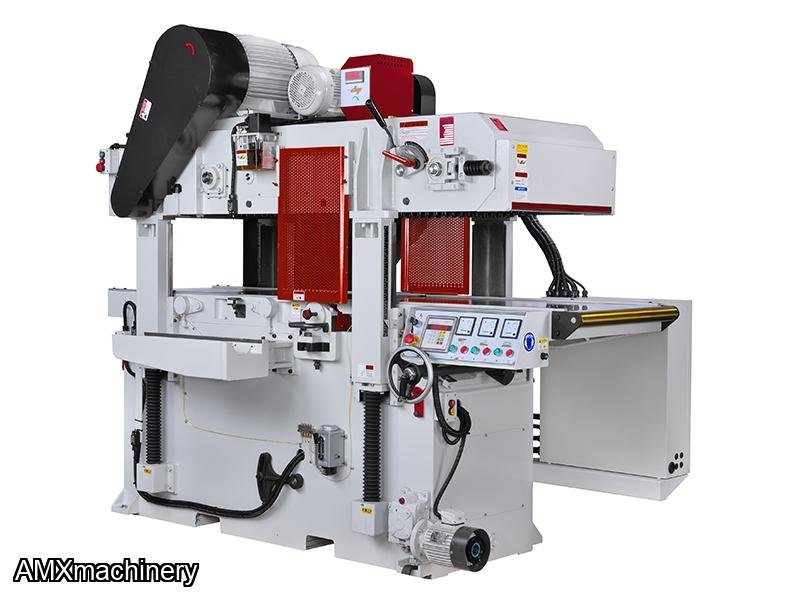

- 25″ x 8″ capacity as standard with optional 16″, 20″, 24″ thickness capacity
- Cutterheads are spiral insert type with six (6) rows of carbide inserts
- (2) driven and (1) idle bed roll for superior feeding of even difficult material

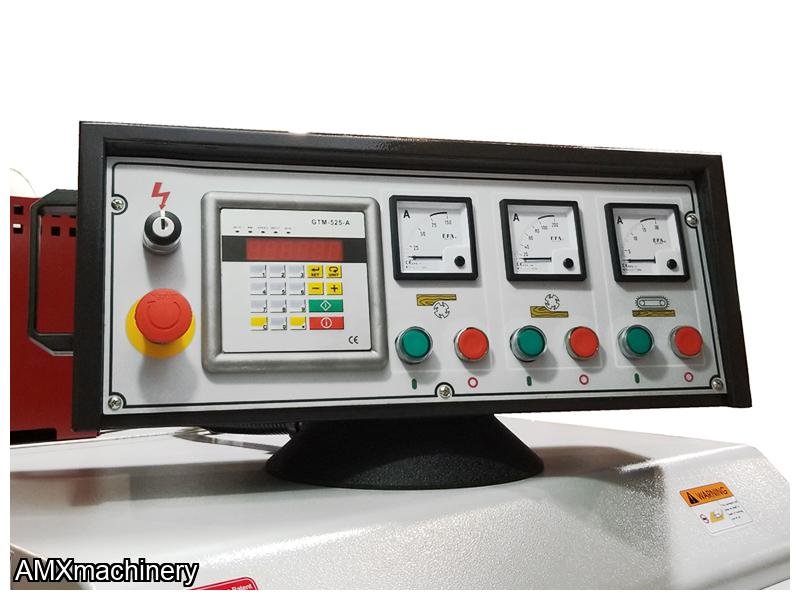

- Swiveling control panel for more ergonomic access to machine controls

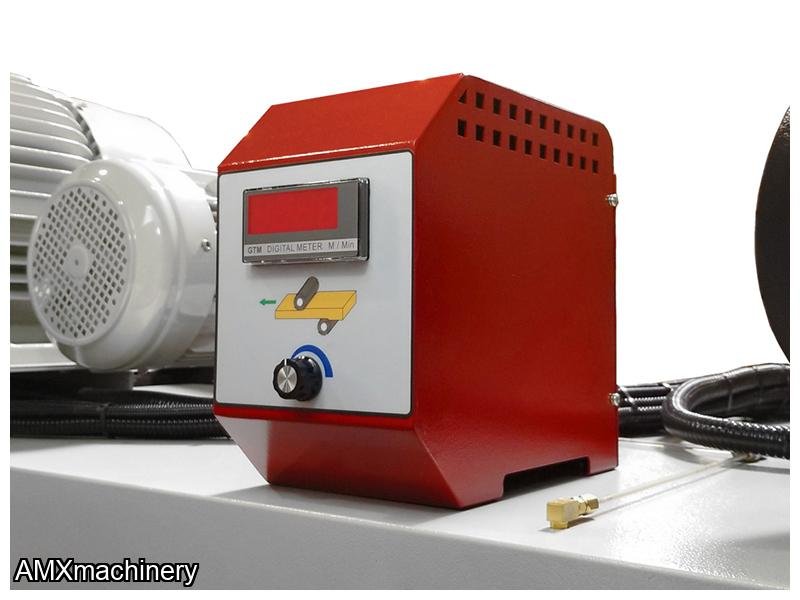

- Inverter variable speed control with feed speeds from 26 to 80 FPM

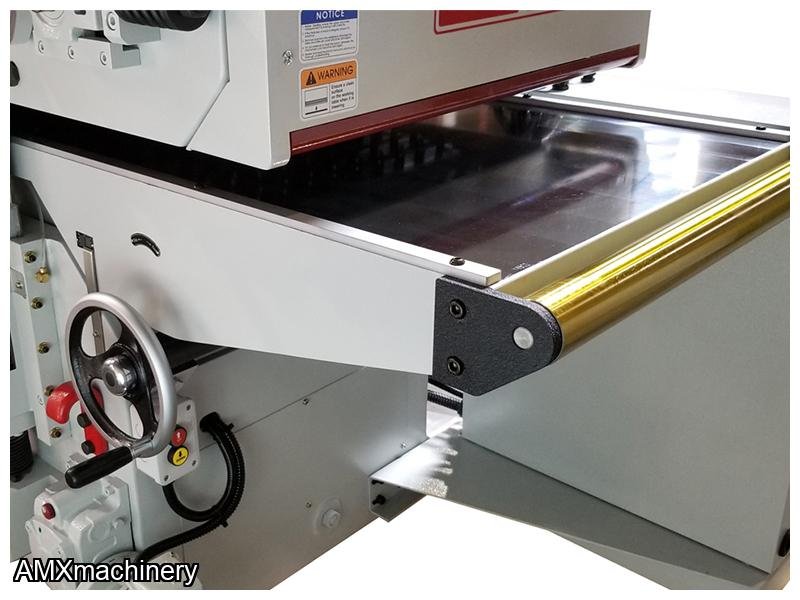

- Easy to access external handwheel adjustment of infeed bed
- Hard chromed worktable for high wear resistance
- Auto lubrication to conveyor chain, central lubrication for dovetail elevation guideways

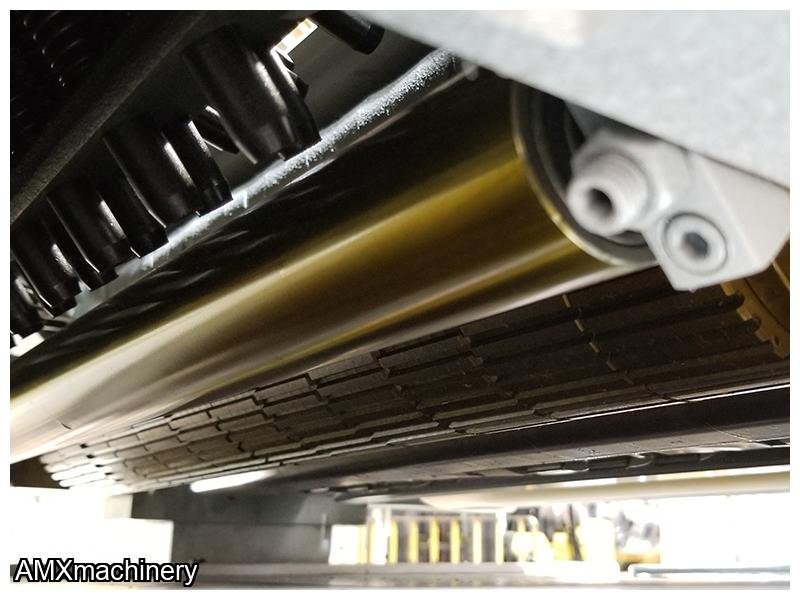

- Section chipbreaker and sectional feed roller before top cutterhead
- Rubber outfeed top roller to prevent chip marking
- Over thickness safety shut-off bar across infeed.
- Ammeter for each motor on control panel to monitor motor load
|
Max. working width |
25″ |
|
Max. working thickness |
8″ (16″, 20″, 24″ optional) |
|
Min. workpiece length |
12.2″ |
|
Bottom head motor |
20 HP |
|
Top planing head motor |
25 HP (30 HP optional) |
|
Feed motor |
5 HP |
|
Table elevation motor |
1/2 HP |
|
Knife dimensions |
30mmx12mmx1.5mm (96 pcs per head) |
|
Cutterhead speed |
5400 RPM |
|
Feed speed (variable) |
26-80 FPM |
|
Machine dimensions (LxWxH) |
105″ x 45.1″ x 67.7″ |
|
Net weight |
6600 lbs |
|
Gross weight |
7700 lbs |
