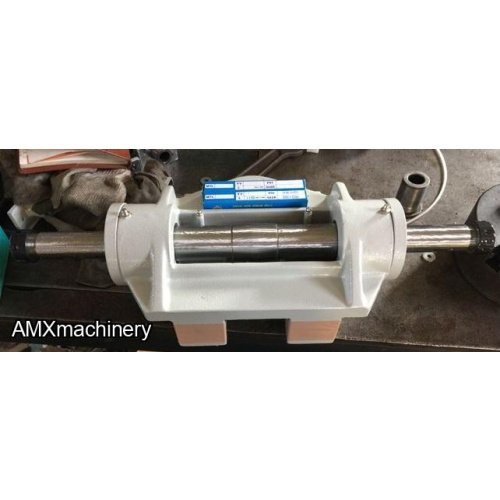

PARTE:  3YC-YOM-120-A – SET FLECHA - ESCOPLO OSCILANTE - 2 MESASNuevo con garantíaFlechaBalerosBase hierro forjado

PARTE: 2CK-ST152C - ESPIGADORA SENCILLA - 1 LADO NUEVO CON GARANTIAOffers superior tenoning results in a economical solution.  The 12” trim saw unit is mounted in front of the tenon heads and enables stock to be cut to the desired length.  The two horizontal spiral insert knife tenoning heads are capable of producing a tenon up to 6” long.  The heads are accurately adjusted using mechanical digital readouts.  The spiral insert heads produce an extremely smooth finish result.  The tw...

PARTE: 4NE-ECNC - ESCOPLO CNC - MESA DOBLE - 100 MMMachine Weight : 400kgMachine Dimension ( W*L*H ) : 970mm* 1210mm* 1220mmTotal Power : 2,05 kWVoltage : 3*380 / 50 HzAir: 6 BarLegnth of Drill : 0 – 100mm + Blade DiameterDepth of Drill : 100mm

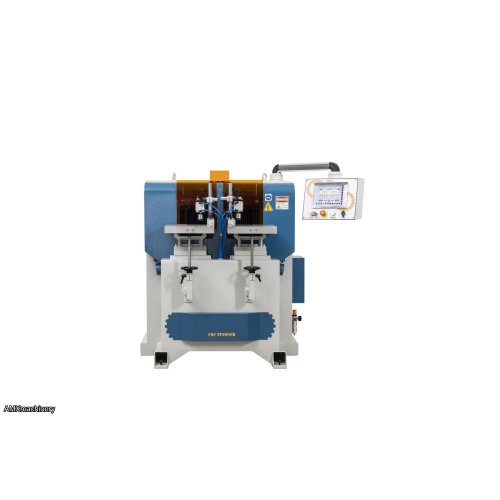

PARTE: 4NE-TCNC - ESPIGADORA CNC - MESA DOBLE - 90 MM X 130 MMTenon Max. Length Horizontal: 130mmTenon Max. Length Vertical: 90mmTenon Debth : 0mm to 50mmTenon Degree : 0 to 90 degreeCapacity : 700 tenons/hMachine Weight: 700kgMachine Dimension ( W*L*H): 1230mm* 1220mm* 1520mmTotal Power: 5kW

PARTE: 1SL-DC-WJ6P - CANTEADORA 6" - MOTOR 1.5 HP Motor: 1.5 H.P., 110/220V., 60Hz, 1 ó 2 Fases Altura De La Mesa: 32” Tipo De Empaque: 1 caja Peso De La Máquina: 93 Kg. Máx. Profundidad De Corte: 6” x 1/8”, 3” x 1/4” Capacidad Máx. De Traslape: ½” Inclinación De La Guía: 45°, 90° y 135° Cantidad De Cuchillas: 3 pzas. Ancho Máximo De Desbaste: 6" Dimensiones De La Mesa De Entrada: 22” x 7-1/2”

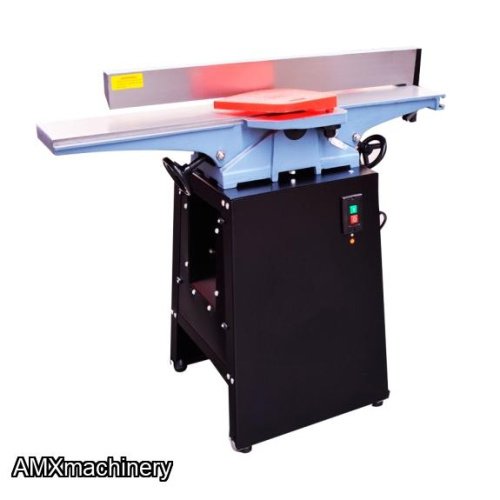

PARTE: 1SL-DC-WJ6-W - CANTEADORA DE 6" - MOTOR 1 HP Nuevo con garantía Motor: 1 H.P., 110 V. 60Hz Tipo De Empaque: 1 caja Máx. Profundidad De Corte: 6” x 1/8”, 3” x 1/4” Capacidad Máx. De Traslape: ½” Inclinación De La Guía   : 45° y 90° Dimensiones De La Guía: 29-1/4” x 4-1/2” Cantidad De Cuchillas: 3 piezas Ancho Máximo De Desbaste: 6” Dimensiones De La Mesa De Entrada: 17-1/2” x 6-1/2” Dimensiones De La Mesa De Salida: 17-1/2�...

PARTE: 2CK-PCM120Power stroke of head permits easy, fast and accurate successive cuts.Separate fan blower to keep work clean and free from dust and chips.Manual adjustable table height and lateral positionHeavy duty cast iron construction.Convenient centralized control panelFoot pedal actuated cycle.Pneumatic workpiece clamping by lever Chisel range 1/4″~3/4″ Motor 2HP Spindle speed 3400 RPM ...

PARTE: 2CK-J168LH - CANTEADORA - 16" ANCHOIs a truly industrial long bed jointer capable of producing perfectly jointed material used in the production of wood furniture, doors, face frames. and more.  The heavy-duty cast iron infeed & outfeed table and back fence provide superior vibration damping which results in an optimum jointed finish.  The spiral insert cutterhead with its two-sided solid carbide inserts provides optimum stock removal with a superior finish.  The insert knife cutterhe...

PARTE: 2CK-J127LH - CANTEADORA - 12" ANCHOIs a truly industrial long bed jointer capable of producing perfectly jointed material used in the production of wood furniture, doors, face frames. and more.  The heavy-duty cast iron infeed & outfeed table and back fence provide superior vibration damping which results in an optimum jointed finish.  The spiral insert cutterhead with its two-sided solid carbide inserts provides optimum stock removal with a superior finish.  The insert knife cutterhe...

PARTE: 1SIL-DC-YOM120 - ESCOPLO OSCILANTE - 2 MESAS NUEVO CON GARANTIA Tipo De Empaque: 1 Caja Peso De La Máquina: 700 Kg. Motor De Corte: 3 H.P 220V, 3 P.H. 60 Hz. Motor Oscilante: 1/2 H.P. 220V, 3 P.H. 60 Hz. Largo Máx. De Escopleado: 120 mm Método De Trabajo: manual/automático Profundidad Máx. De Escopleado: 50 mm Velocidad De Corte: 9500 rpm Dimensiones Del Empaque: 1430 x 1340 x 1410 mm Presión De Trabajo: 6 kg/cm²

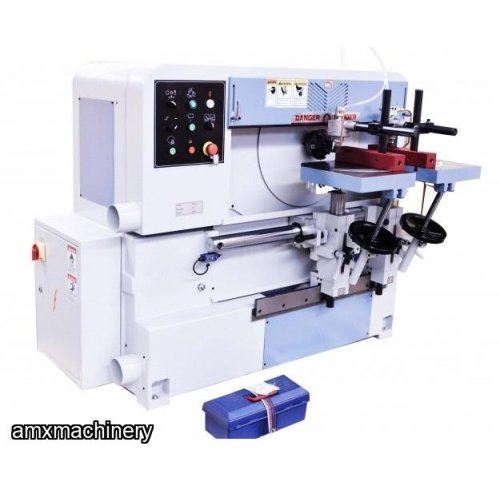

PARTE: 1SIL-DC-YRT-115 – ESPIGADORA OSCILANTE – 2 MESAS – 5 HP NUEVA CON GARANTIA Tipo De Empaque: 1 Caja Peso De La Máquina: 1200 kg Motor De Corte: 5 H.P 220V, 3 P.H. 60 Hz. Motor Oscilante: 1 H.P. 220V, 3 P.H. 60 Hz. Método De Trabajo: manual/automático Velocidad De Corte: 6000 rpm Dimensiones Del Empaque: 1840 x 1210 x 1530 mm Largo Máx. De Espiga: 115 2R mm Profundidad Máx. De Espiga: 45 mm Presión De Trabajo: 6 kg/cm²

PARTE: 2MK-FH.16.C - ESCOPLO – MESA MOVIBLE – 1 LADO - MAKSIWAMobile table, appropriate to drill horizontally in wood with straight cutter or drill. It has eccentric clamping device, articulated arms and extended base. It is conceptually different from the other drills in that during operation, the table is lifted into the work piece. 2 Year Warranty. SpecificationsMobile table dimensions: 18-1/8" x 7-4/8"Horizontal table track: 5-3/8"Vertical table track: 8-5/8"Chuck track: 4-7/8"Chuck cap...

PARTE: 2MK-DE-1800-4 – CANTEADORA 8 PULGADAS – 1 HP, 1 FASEThe Wood Jointer DE.1800/4 has 4 knives coupled to the main axis operating simultaneously resulting in an excellent cut finish.An ideal size table for large pieces, reinforced structure, precise adjustment and modern design.Has 4 knives coupled to the main spindle operating simultaneously; resulting in an excellent fine finish! An ideal size table for large pieces with a reinforced cabinet. With the rack and pinion mechanism the tabl...

PARTE: 2MK-DE-1200-3 – CANTEADORA 6 PULGADAS – 1 HP, 1 o 3 FASESThe Wood Jointer DE.1200/3 has the thickness function adjustable, making cuts adjustment in small pieces of wood, plywood and MDF.Based on structural plate and table in die casting, its axis works with 3 knives, which ensures a quality finish to their final product.Has a depth of cut adjustment feature for precise cuts in small pieces of wood, plywood and MDF. Wood Jointer DE.1200/3 is easy to adjust and operate.2 Year Warranty....

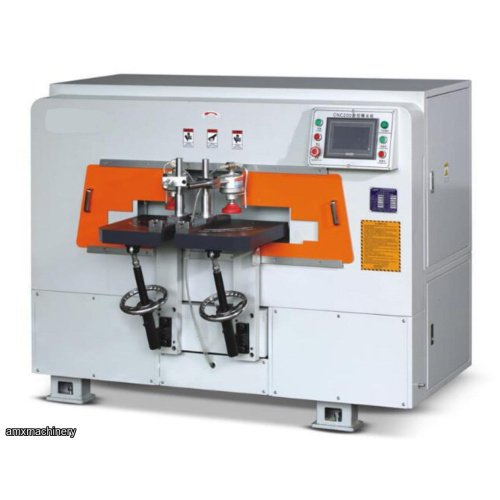

PARTE: 3UD-CT-200 – ESPIGADORA 2 MESAS – CNC NUEVA CON GARANTIAMAX. WORKING SIZE  140X80 MMMAX. WORKING PIECES SIZE  430 MM / 140 MMMAX. WORKING WIDTH  80MMMAX WORKING DIAMETER  80 MMMAIN SPINDLE SPEED  9000 RPM POWER  5.5 KW

PARTE: 2TA-SET-60 - ESPIGADORA 1 LADO - FINGER JOINTFeatures:It performs cut off, burrs trimming, and moulding functions.Two 4" D x 5" L max. tenon cutters, cope spindle accepts general shaper cutter. Suited for cutting tenons, finger joints for window or doorframe and general joint-tenon.Hand, manual operated clamping and feeding of stock.First the trim saw to cut off the end of stock evenly.Then two moulding, tenon spindles are mounted at the rear of saw enable machine performs edge moul...

PARTE: 2BA-PICO – ESPIGADORA MESA DOBLE - BALESTRINI PICOThe PICO machine cuts round dowels or round end tenons on chair and case goods components. PICO cuts horizontal or vertical tenons on three compound angles sim-ultaneously without the use of special fixtures. The PICO machine is equipped with the exclusive, patented Balestrini anti-splitting cycle. With this system, the tables are fixed and the tool always enters the wood with the grain (climb cutting) and eliminates any tear-out.The PIC...

PARTE: 2TA-SET-100 - 3YC-YRT-115 - ESPIGADORA - 2 MESAS - AMX MACHINERYNueva con garantiaBuilt with two working tables for high efficiency operations.Table longitudinal traverse is pneumatic operated for smooth cutting.Tenon’s width is easily adjustable by hand wheel.Convenient tenon depth adjustment from outside without removing covers.Table can be tilted to 20 degrees at each side for angular tenon.Cutter moving speed is infinitely adjustable to achive the best results.Pneumatic hold down c...

PARTE: 1SL-DC-MS3840 - ESCOPLO VERTICAL - MOTOR  1 HPNUEVO CON GARANTIAMotor1 H.P., 110V.,60Hz, MonofásicoCapacidad del cortador1/4” - 1”Zanco del cortador3/4”Desplazamiento del cabezal210 mm.Velocidad1720 rpm.Tamaño del buje del escoplo3/4”Capacidad del broquero3 - 16 mm.Mov. lateral de la mesa180 mm.Mov. transversal de la mesa100 mm.Dimensiones de la mesa450 x 150 mm.Altura máxima de la madera200 mm.Ancho máximo de la madera140 mm.Peso139 Kg.Tipo de empaque1 caja

PARTE # SL-DC-MS3840-T - ESCOPLO VERTICAL - MOTOR 1 HP - EJE Y MESA INCLINABLENUEVO CON GARANTIAMotor1 H.P., 110V, 60Hz. MonofásicoCapacidad del cortador1/4” - 1”Desplazamiento del cabezal210 mm.Tamaño del buje del escoplo3/4”Capacidad del broquero3 - 15 mm.Profundidad máxima de corte76 mm. (3”)Velocidad de Rotación1400 rpm.Dimensiones de la mesa540 x 190 mm.Altura máxima de la madera165 mm.Peso138 Kg.Tipo de empaque2 cajas  * Inclinación de Eje y mesa para perforación diagonal...
