Identificador: 3191
Abierta
.PNG)
Descripción

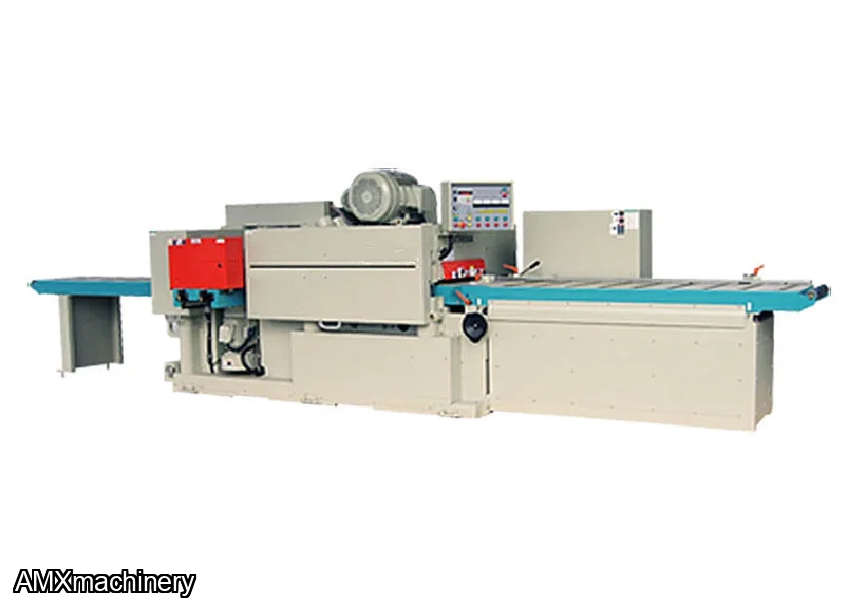

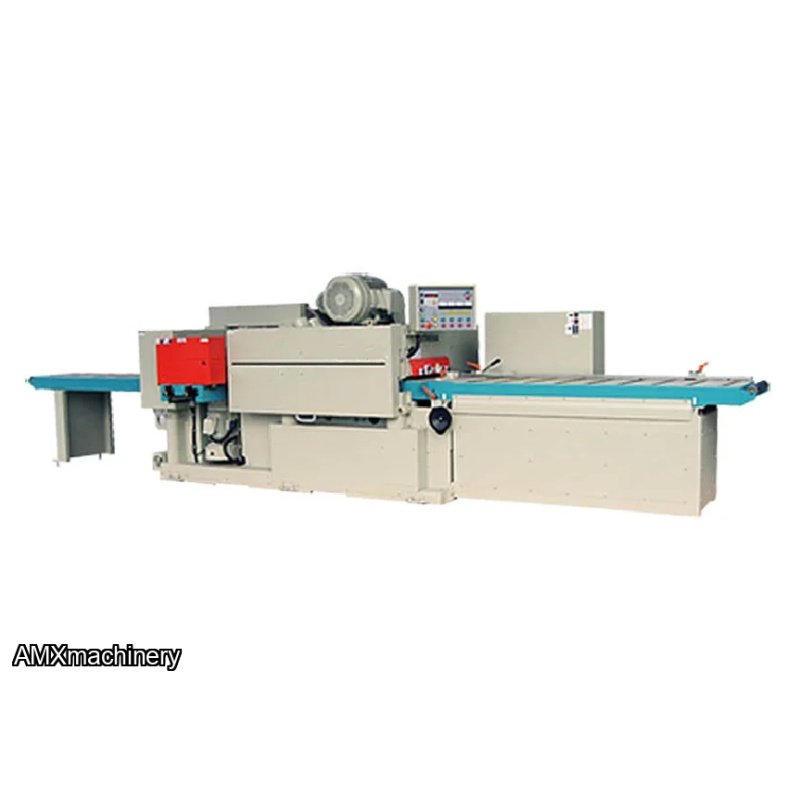

PARTE: 2EX-SXP-425 - CEPILLO 4 CARAS - 25" ANCHO
Details:
- 50 HP Top, 40HP Bottom
- 15 HP side Motor
- 6000 RPM Cutter heads
- Air Loaded Sectional feed roller
- Digital PLC Thickness Controller
- Long infeed and outfeed tables
- Moulder Style Side heads
- Carden Shaft drive System
- Segmented Roller Feed System
Specifications:
- Horsepower: 50/40/15/15HP
- Width: 25"
- Top Motor: 50 HP
- Bottom Motor: 40 HP
- Left Motor: 15 HP
- Right Motor: 15 HP
- Elevation Motor: 2 HP
- Feed Motor: 5 HP
- Standard Max Thickness 8"
- Max Available Thickness: 12"
- Min Length: 28"
- Cutterhead RPM: 6000
- Top Cutter Access: Super Slide
- Bottom Cutter Access: Super Slide
- Side Cutter Access: Moulder Style
- Side Spindle Movement: Manual Screw
- Infeed Table Length: 90"
- Outfeed Table Length: 72"
- Disc Brakes: Yes
- Feed System: 39 - 130 ft/min
- AMPS (220V/440V): 311A / 156A
