Description

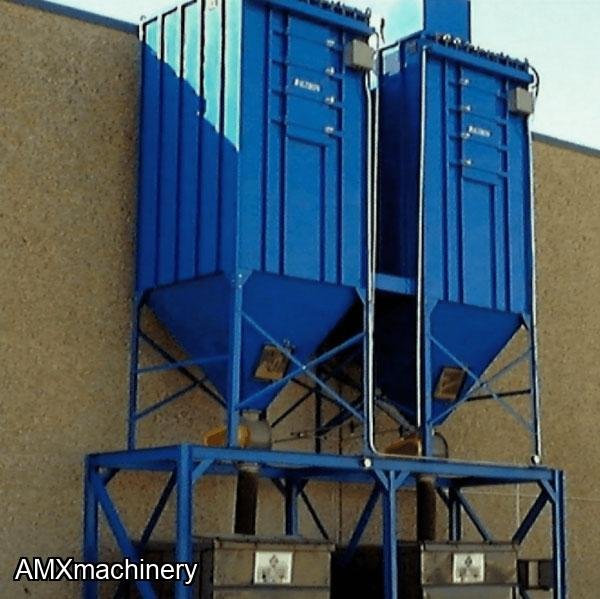

PARTE: 2FC-BT-140-10 – COLECTOR DE ASERRIN – DE BOLSAS – USO RUDO
Nuevos con garantía
Specifications
14 gauge with ribs
Magnehelic gauge
16 oz. singed polyester felt
Internal Venturi
Galvanized bag cages
Nitro blue enamel
4.75" diameter bags - 6, 8, or 10 ft. Long
Options
Direct mounted blower/motor
Volume control damper
Fan silencer
Bin vent design
Rotary air lock
Platform & ladder packs
Explosion vents
Photohelic gauge
THE 99.9% EFFICIENT CONTINUOUS-DUTY DUST COLLECTOR
Heavy-Duty
Comes in a full range of sizes,
from 67 sq. ft. to 1750 sq. ft. of filter, thus giving CFM's of air moved from
as low as 500 CFM and as high as 25,000 CFM. In addition, custom / larger sizes
are available.
|
Model |
# of Bags |
Bag Length |
Filter Sq Ft |
CFM @ 5FPM |
CFM @ 10FPM |
CFM @ 15FPM |
|
BT-4-6 |
9 |
6 |
67 |
335 |
670 |
1005 |
|
BT-9-8 |
9 |
8 |
90 |
450 |
900 |
1350 |
|
BT-16-6 |
16 |
6 |
120 |
600 |
1200 |
1800 |
|
BT-16-8 |
16 |
8 |
160 |
800 |
1600 |
2400 |
|
BT-25-6 |
25 |
6 |
187 |
935 |
1870 |
2805 |
|
BT-25-8 |
25 |
8 |
250 |
1250 |
2500 |
3750 |
|
BT-36-6 |
36 |
6 |
270 |
1350 |
2700 |
4050 |
|
BT-36-8 |
36 |
8 |
360 |
1800 |
3100 |
5400 |
|
BT-49-8 |
49 |
8 |
470 |
2450 |
4500 |
7350 |
|
BT-49-10 |
49 |
10 |
612 |
3060 |
6120 |
9180 |
|
BT-64-8 |
64 |
8 |
640 |
3200 |
6400 |
9600 |
|
BT-64-10 |
64 |
10 |
800 |
4000 |
8000 |
12000 |
|
BT-81-8 |
81 |
8 |
810 |
4050 |
8100 |
12150 |
|
BT-81-10 |
81 |
10 |
1012 |
5060 |
1012 |
15180 |
|
BT-100-8 |
100 |
8 |
1000 |
5000 |
1000 |
15000 |
|
BT-100-10 |
100 |
10 |
1250 |
6250 |
1250 |
18750 |
|
BT-140-10 |
140 |
10 |
1750 |
8750 |
17500 |
25250 |
