TORNO COPIADOR – NAVAJA TRASERA – LOBO

PARTE # 11623 – TORNO COPIADOR – NAVAJA TRASERA – LOBO

En buenas condiciones de opracion

Produccion 4-7 piezas por minuto

Motor 7.5 HP, 220/440V, 3 fases, 60 cy

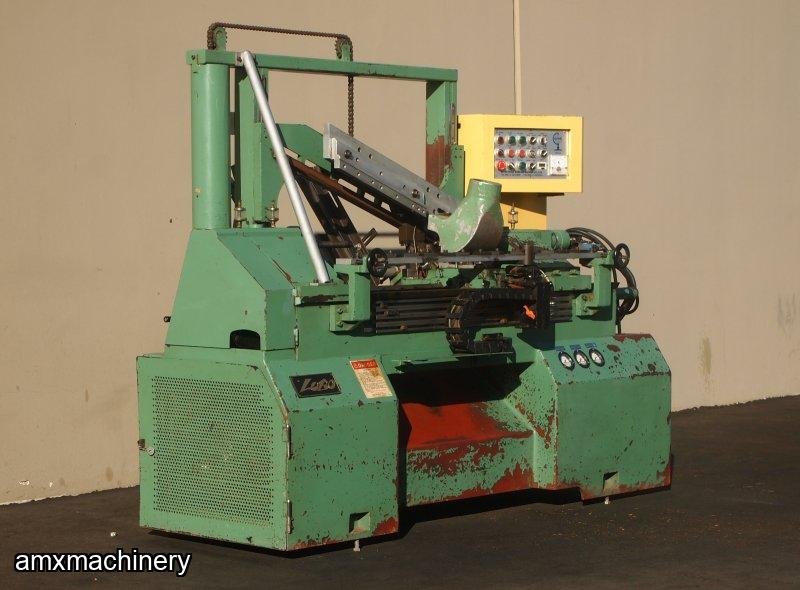

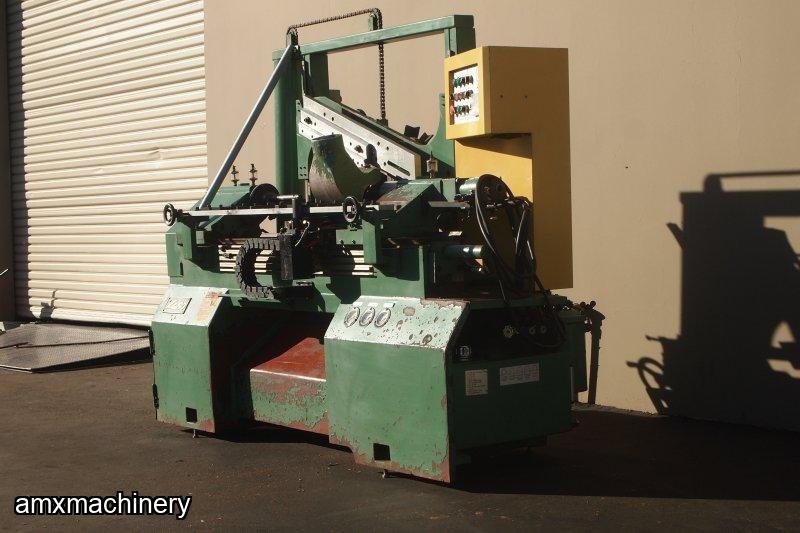

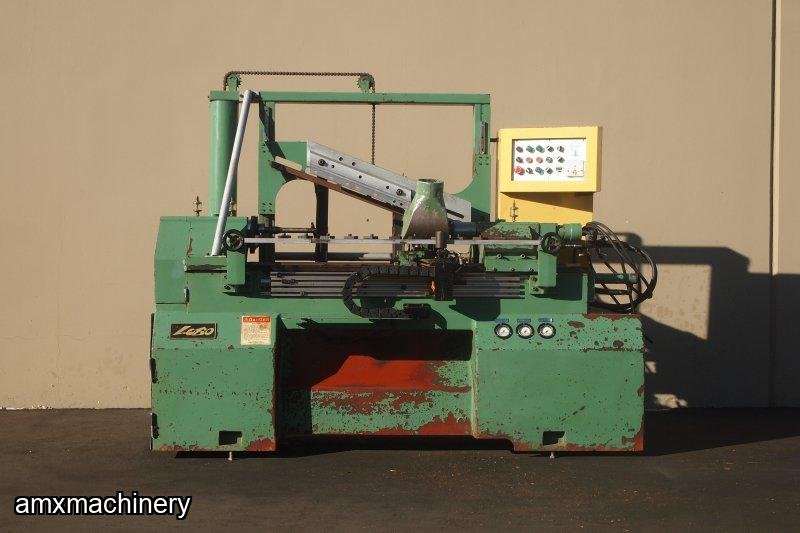

LOBO CP-168A Hydraulic Copy Lathe with  hopper feed with automatic chucking, square or round stock can be hopper feed.

This unit is designed to produce (4 - 7) pieces a minute.

Equipped with 7.5 HP Spindle motor, 1,800 - 3,200 RPM spindle speed adjustable by pulley change and 3 HP hydraulic motor.

Features:

Designed for the fast, efficient productions of indicate turning, the LOBO Fully Automatic Back Knife Lathe is ideal for high production of wide variety turnings.

Main frame is made of cast iron with heavy ribbed construction, stress relieved for stability and accuracy.

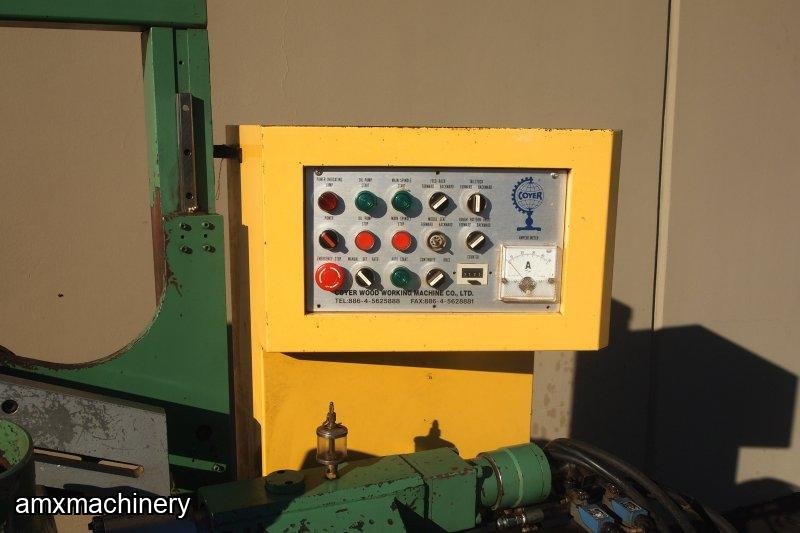

All machine functions are controlled from one conveniently located swiveling panel.

This unit automatically lubricates all slides surfaces for maximum wear resistance.

The workpiece support collar is automatically lubricated to reduce heat and friction. This allows for smoother cutting and better support.

Carriage speed is automatically varied for deferent turning section.

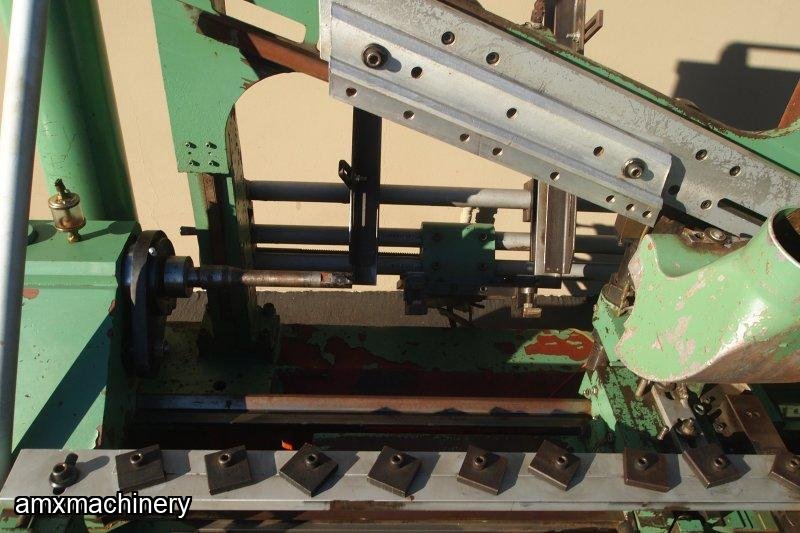

Hydraulic hopper feeds one stock to the centering device after each turning is accomplished, thus enables the machine to be fully automatic operation.

Easily and quickly adjusts for all size of stock.

The tail stock housing is made of FC-25 cast iron for strength and stress relieved for stability.

The internal bore is heat-treated to resist wear and precision ground for accuracy.

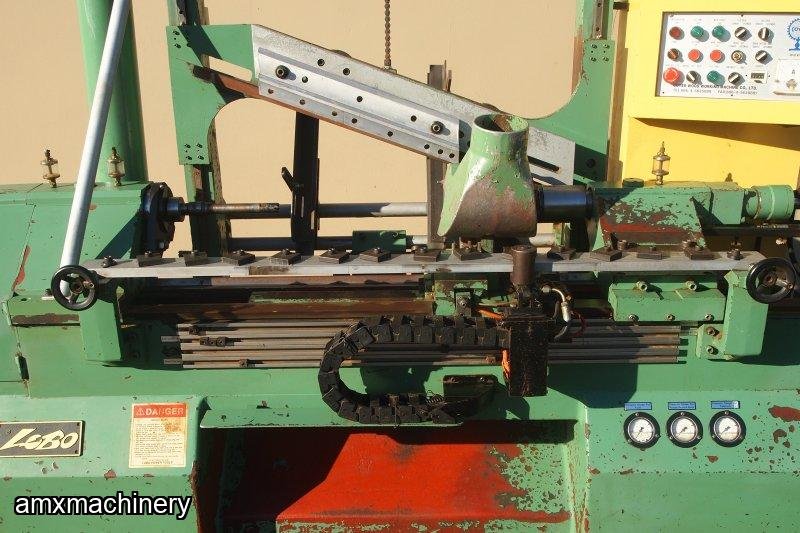

The tool rest is equipped with two U & V pattern knives and driven by hydraulic power which allow for a smooth cutting action and the produce of large, deep-cut turning.

The big diameter column is chrome hardened, precision ground for long lasting accuracy.

The back knife is securely fastened to the knife bar which is counter balanced to given a smooth, even cutting action.

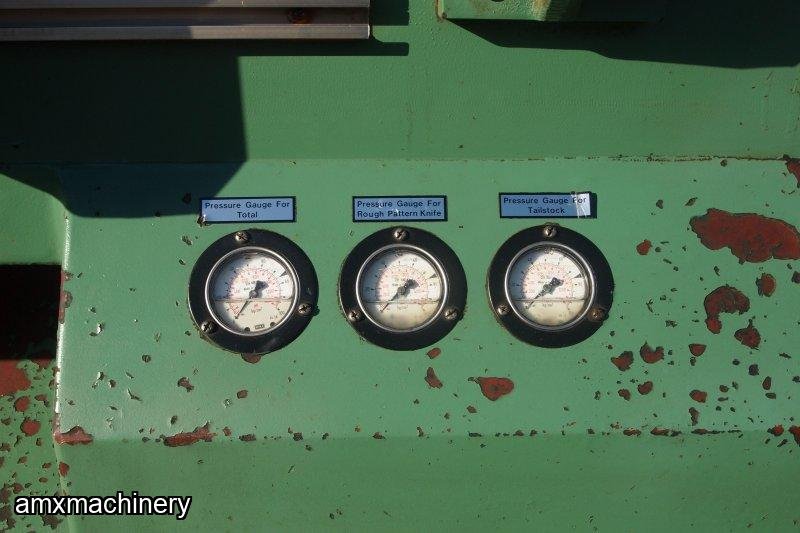

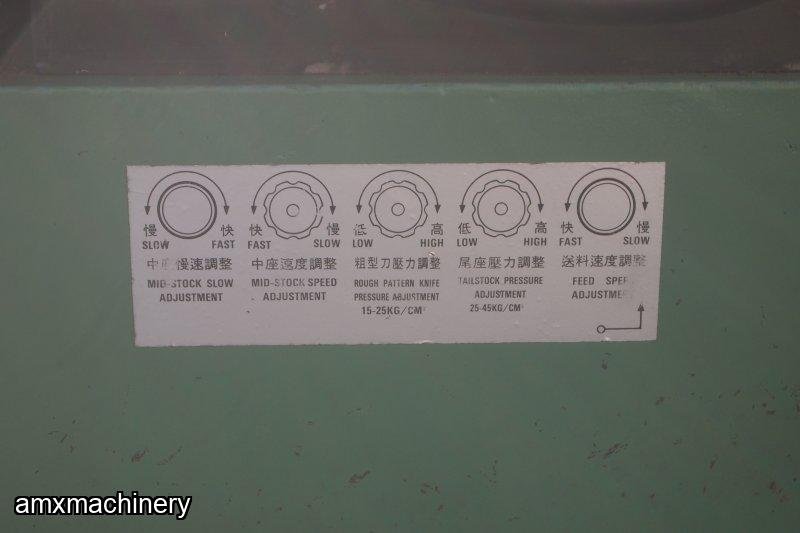

Centralized hydraulic controls: Carriage fast and slow speed, roughing knife pressure and tailstock holding pressure adjustments are all centralized at one convenient location.

The back knife slides on precision linear motion guides, providing effortless, smooth movement

Specifications:

length of stock and 1/2" - 4" max. diameter cap

7.5hp Spindle motor

1800-3200 Spindle rpm

Power : 440/220 60Hz 3Ph

3hp Hydraulic Motor

26 1/2" length cap. with 4" min

Min Stock Lenght 4"

4-7 pieces a Min.

Weight Net. 3700lb   Gross. 4150lb
