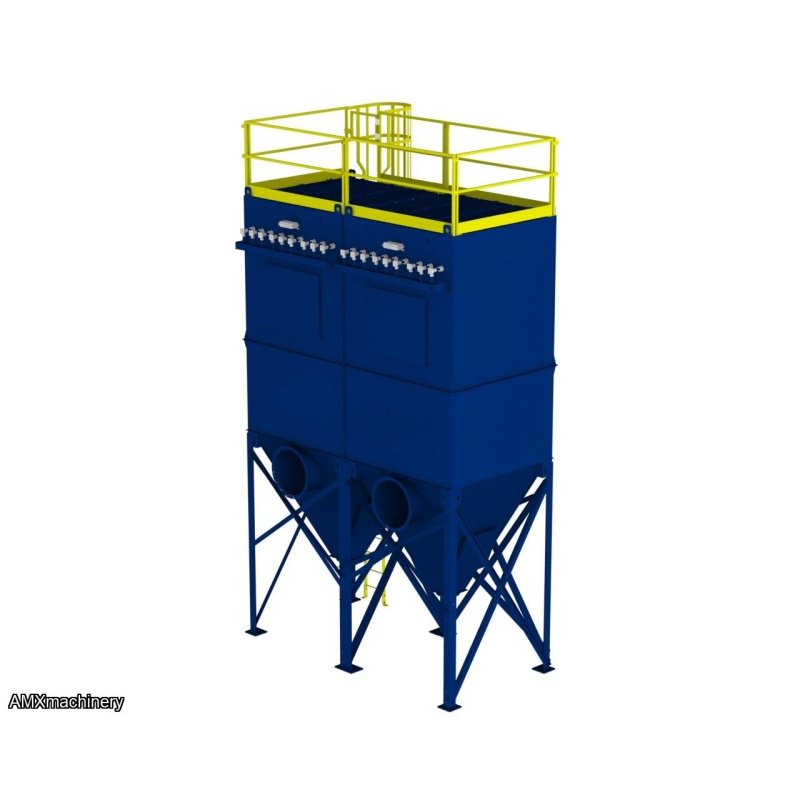

PARTE: 2AC-TLM-162-10 - COLECTOR DE ASERRIN – DE BOLSAS – USO RUDO
NUEVO CON GARANTIA
• 162-Bag High-Efficiency
• Includes (162) 10’ 16 oz. polyester snap-band bag filters rated for up to 300°F
• Total Filter Area: 2,545 ft2
• Air-to-Media Ratio @ 15,000 cfm: 5.89:1
• Top Door, Clean-Side Filter Access – no confined space required
• Solid Welded Main Filter Housing/Heavy Duty 7 and 10 gauge construction
• Automatic Venturi-Assisted Pulse-Jet Filter Cleaning System
• Dwyer Pulse Control Timer Board with built-in digital pressure switch/gauge
• Goyen Diaphragm and Electrical Solenoid Valves
• OSHA-compliant Caged Access Ladder and Roof Perimeter Handrail

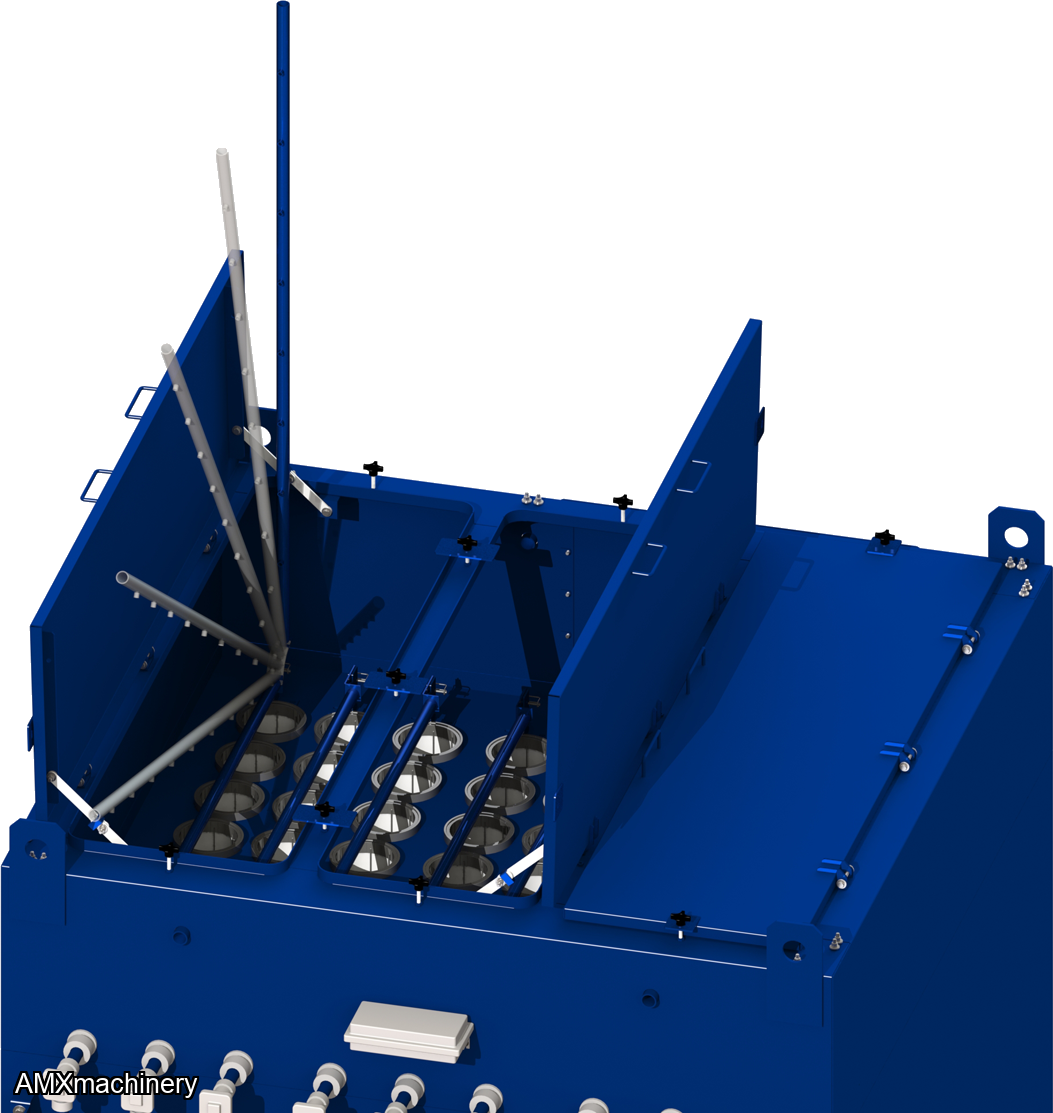

• ACTion-Lock Quick-Release Filter Access with swing-away blowpipes
• Hopper Level Dirty Air Inlets with abrasion resistant deflection baffle
• Steel Support Structure
• 5 year workmanship and materials warranty
• Manufactured and Assembled in the United States
• 60 HP motor with Chicago Blower rated for 18,000 CFM @ 15", arrangement 4, ground mount, clockwise rotation, up-blast discharge, VFD suitable motor.
|
QTY |
PART CATEGORY |
PART # |
DESCRIPTION |
|
1
|
VFD Control Panel |
DC29160-460 |
All-in-one starter/disconnect/timer board/digital pressure gauge 460V 3ph with VFD |
|
2 |
Explosion Vent Installed with Hardware |
DCA52004 |
36" x 44" explosion relief panel. 10.6 sq ft vent area. Domed for durability. Kst value required. |
|
2 |
Rotary Airlock Adapter |
DC12005 |
Adapter to bolt airlock to hopper (Price is per hopper) - Pre-FAB |
|
1 |
Silencer |
Custom - Silencer |
exhaust silencer for Chicago Blower |
|
2 |
NFPA Compliant Air Lock |
DC37200 |
10" NFPA Compliant Air Lock with wipers |
|
6 |
Leg Extensions |
DC16020 |
Standard Leg Length + 1" to 23" Price is Per Leg |
|
1 |
VF - Explosion Isolation Valve |
DCA51281 |
28" VF - Explosion Isolation Valve Assembly: • Locking mechanism • Flanges (ANSI) • Inspection door • ATEX certified • Inductive proximity shut down switch • Dust level sensor • Includes Control Panel |
|
2 |
Rotary Air Locks |
DC29710 |
ADDER: Airlock starter in control panel (DC29710) |
|
1 |
Control Panel Adders |
DC29732 |
Shut Off Landing Spot in Control Panel for Back Draft Damper |
|
2 |
Hopper Access Door |
DC15010 |
Bolt on Hopper Access Panel |
Heavy-duty internally reinforced 10-gauge walls and robust structure meet industry demands. Utilizing computerized simulation software, the pulse-jet cleaning system operational design has been optimized for efficient cleaning and airflow. Hinged filter access doors and our exclusive tool-free bag replacement, allow for the quickest, easiest maintenance.

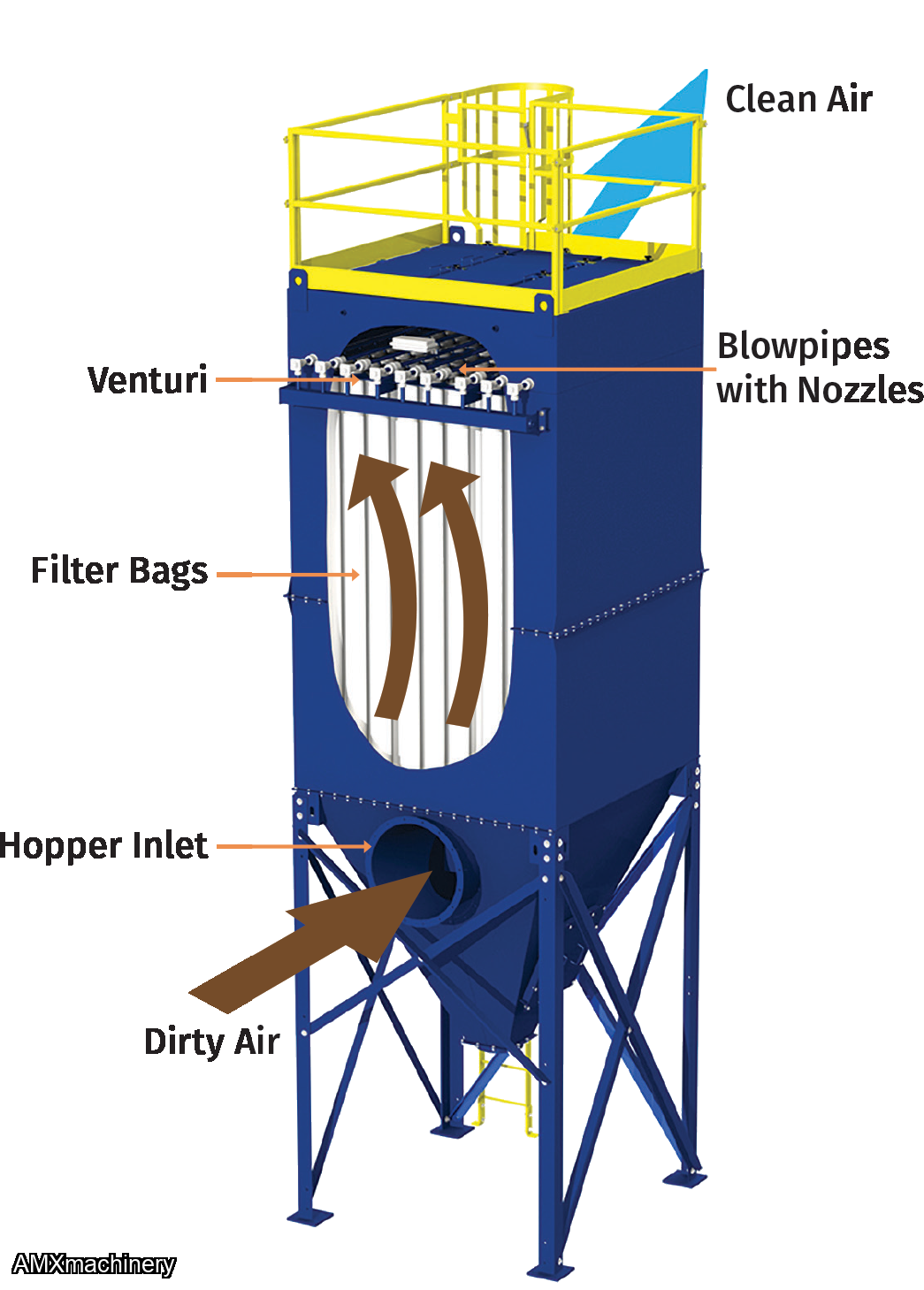

Operation is simple, proven and efficient. Dust-laden air is drawn from the source through a duct system and into the hopper inlet. Through air expansion and an internal deflection plate, the airstream velocity is reduced so large particles drop into the hopper below. The remaining dust particles are filtered through the bag filters. This ensures that only clean air passes into the top of the unit, through the fan, and is either exhausted to the atmosphere or returned to the building.
