ID: 1316
Open
Description

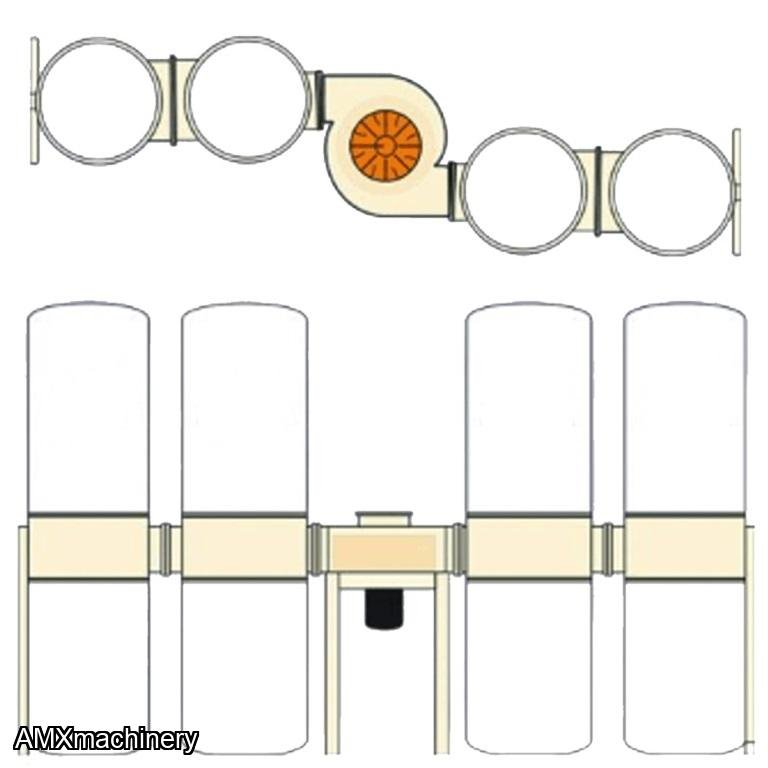

PARTE: 2EX-DC-3200 – COLECTOR DE ASERRIN MODULAR - MOTOR 20 HP – 8975 - CFM
Nuevo con garantía
MODELO 2EX-DC-3200
Horsepower 20
Filter Bags 4
Phase Three
CFM 8975
Amps @ Voltage 49A @ 220V
Dimensions (H x W x D) 112" x 156" x 50"
Inlet Size 16”
Filter Area (sq. ft.) 132
Storage Capacity (cu. ft.) 48
Fan RPM 1725
Fan Size 26”
Weight 1000 lbs
Magnetic Starter Included Yes
Opcional:
Bolsas Adaptadoras para cada tambo de 200 litros
Cambio de Voltaje a 440V
