Identificador: 100 Abierta

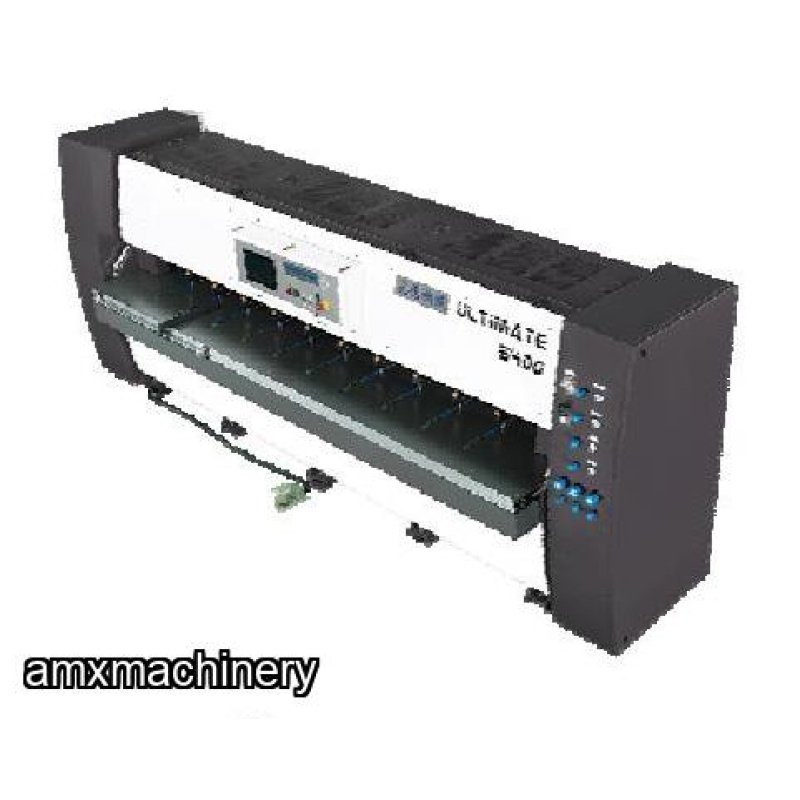

PARTE: 3NN-ULTIMATE2800 - ARMADORA DE SABANAS DE CHAPA

PARTE: 3NN-ULTIMATE2800 - ARMADORA DE SABANAS DE CHAPA

AMXmachinery

Contacte al Vendedor
Descripción

PARTE: 3NN-ULTIMATE3400 - ARMADORA DE SABANAS DE CHAPA – 3400 MM

PARTE: 3NN-ULTIMATE2800 - ARMADORA DE SABANAS DE CHAPA – 2800 MM

Machine Specification

Model

UltiMate 3400

UltiMate 2800

Veneer Strip Length

450 ~ 3400 mm

450 ~ 2800 mm

Veneer Strip Thickness

0.25 ~ 1.5 mm

0.25 ~ 1.5 mm

Veneer Strip Width

min. 75 mm (85 mm for 1  strip)

min. 75 mm (85 mm for 1  strip)

Production Speed

up to 15 ~ 20 cycles/min.

up to 15 ~ 20 cycles/min.

Electric Power

approx. 28 kw

approx. 23 kw

Compressed Air

5 bar

5 bar

Dimensions (L x W x H)

4800 x 1800 x 1800 mm

4200 x 1800 x 1800 mm

Net Weight

approx. 6200 kg

approx. 5300 kg

Color

RAL 8019 / RAL 9003

RAL 8019 / RAL 9003



The UltiMate crossfeed splicing machine is designed for glue-spliced joint for long and panel-sized veneer faces.

Veneer bundles can be well-cut straight with double knife guillotines and then pre-glued on the edges as

preparation. The pre-glued veneer strips are fed into the machine manually with feeding stoppers for fast and easy

operation. The efficient production output of the crossfeed splicing machines is a great deal faster than the

longitudinal splicing machines, especially beneficial for long veneers. We also supply Automatic Stacking

System with Trimming as optional equipment for a big step towards the automated production. Together with

our Double Knife Veneer Guillotine, CutMate D series, Double Sided Veneer Glue Applicator, GlueMate

700, and Veneer Fanning Machine, FanningMate, a full set of veneer splicing line is completed.



Features

- veneer aligned after clipping

- JAPAN YUKEN hydraulic system

- JAPAN MITSUBISHI PLC control system

- self-diagnosis system for fast maintenance

- infeed guides for veneer jointing alignment

- air cleaning system for photoelectric sensors

- program setting for different species of veneers

- GERMANY FESTO pneumatic system

- safety guard of light curtain with European safety standards

- fix-length (cut-to-size) and endless (fix-jointed) splicing modes offered

- pre-feeding stopper system to avoid mismatching in the beginning of feeding stage

- hydraulic driven clipper for the pre-selected width of veneer faces

- “clear-and-easy” operation control panel with user-friendly PLC based interface touch screen

- veneers with the thinness as low as 0.2 mm spliced (certain species of veneers)



UltiMate series

- independent cylinders for crossbeam pressure for thin veneers splicing even possible with extremely thin

veneers

- remote monitoring maintenance system for faster access from the manufacturer in case of machine breakdown

- In case of machine breakdown, our service personnel can check customers’ PLC program via the internet so as to solve the problem in time
