Descripción

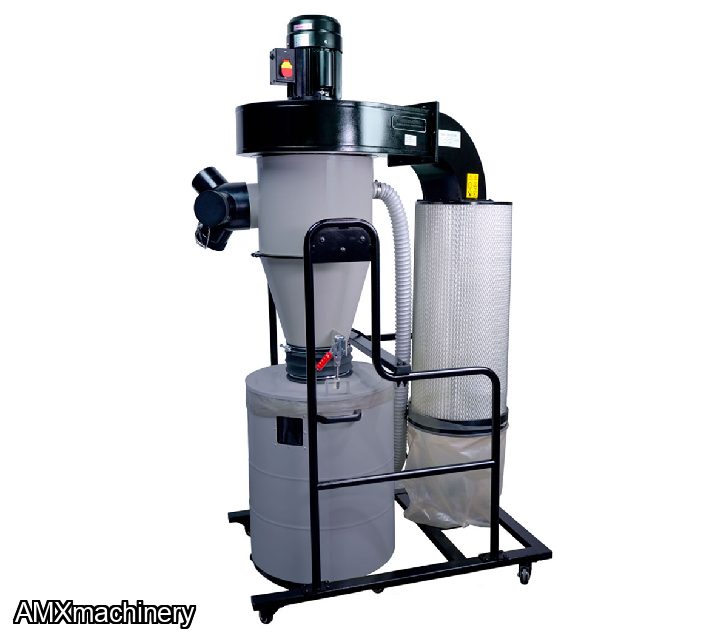

PARTE: 2MK-CY/3.C - COLECTOR DE POLVOS - 3HP

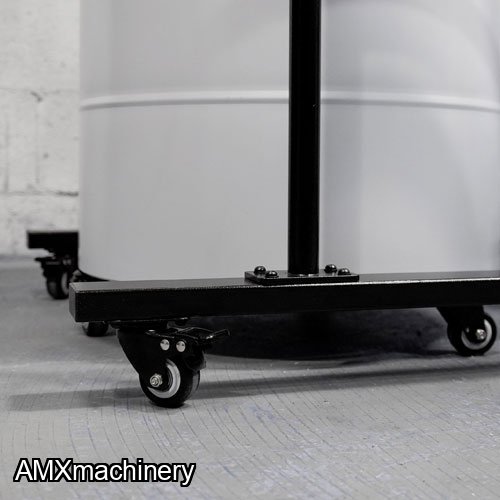

The Dust Collector was developed for cabinet shops with high production. Collects dust of up to 3 machines simultaneously. A light weight and easily transportable machine.
| Technical Information | |
|---|---|
| Motor Spec | 1 Phase 220V 3HP 15A |
| Airflow Capacity | 1941 CFM |
| Sound Rating | 80db |
| Fan Diameter | 14' / 356 mm |

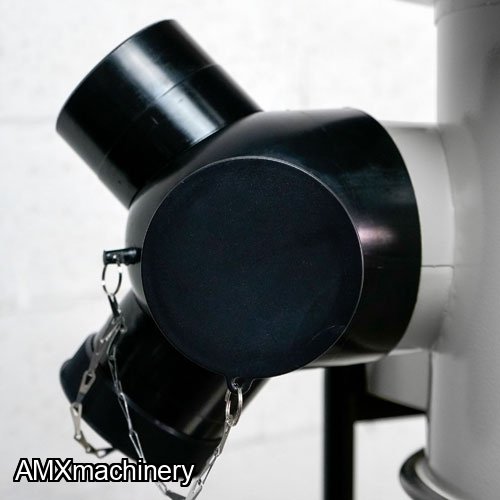

| Number Inlet | 3" |
| Inlet Size | 4" |

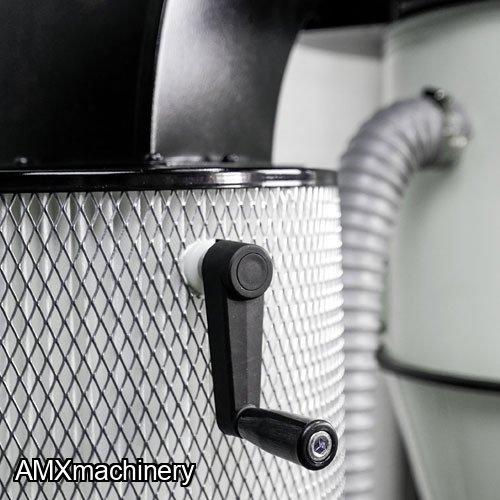

| Filtration | 1- micron |
| Cartridge Filtration size | 13" x 31" |
| Cartridge Bag Size | 14.5" x 29.5" |
| Drum Size | 31 Gal |
| Drum Bag Size | 20" x 43" |
| Machine Dimensions | 45" x 26" x 72" |
| Machine Weight | 181 lbs |
