ID: 196
Open
Description

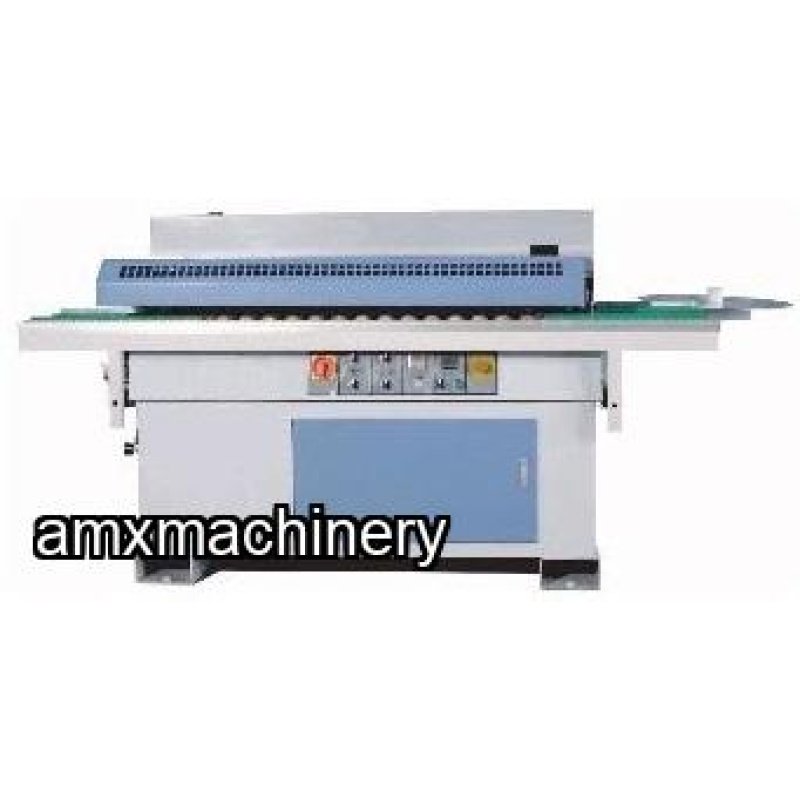

PARTE: 2TA-EB-3ESB - ENCHAPADORA DE CANTOS
- Automatic feed station for: Gluing, Front & Rear End Trimming, Top & Bottom Edge Trimming, Top & Bottom Edge Polishing,
- Total enclosure covers with dust hood connector.
- Heavy and rigid construction to ensure necessary accuracy and stability.
- To guarantee straight-line feed of the panel, a double row of rubber rollers is off centered onto top pressure beam and bottom feed track with rubber calibrated pads is running on cylindrical guide.
- The top pressure beam is supported with two reinforced columns are equipped with visible linkages for thickness adjustment.
- The feed of edging material, by strip or coil is automatic and synchronously with panel feed.
- Extension rollers support for wider panels.
- The electric and pneumatic system is incorporated in the built-in control cabinets.
- Side Pressure Unit: Standard with one row of vertical rollers for straight edges.
- Gluing Unit: With the use of melt glue applied on straight Panel for edges banding.
- Double End Trimming Unit: Application for fine trimming front & rear edge by HIGH FREQUENCY saw motor
- Edge Trimming Unit: This top and bottom edge trimming unit is complete by cutter heads with two independent HIGH FREQUENCYmotors
- Polishing Unit: Apply the finest finish surfacing process on top and bottom edge.
| SPECIFICATIONS | EB-3ESB |
| Edging PVC Band Thickness | 0.0015” ~ 0.118” (0.4 ~ 3 mm) |
| Edging Band Width | 0.55” ~ 2” |
| Work Piece Thickness | 0.47” ~1.77” |
| Work Piece Minimum Length | 11” |
| Work Piece Minimum Width | 3.5” |
| Edge Band Feed Motor | 25 W |
| Gluing Motor | 60 W |
| End Trimming Saw Speed | 12000 RPM |
| End Trimming Motor | ½ HP |
| Edge Trimming Cutter Speed | 12000 RPM |
| Edge Trimming Motor | ½ HP x 2 |
| Polish Wheel Speed | 1400 RPM |
| Polish Motor | 1/8 HP X 2 |
| Feed Speed | 0 ~ 23 FPM |
| Feed Motor | ½ HP |
| Heating Element Power | 1250 W |
| Total Power | 4 HP (3 KW) |
| Power | 220V 3PH |
| Air Pressure | 90 PSI |
| Machine Size | 87" x 28" x 48" |
| N.W. | 950 LBS |
