ID: 968
Open
Description

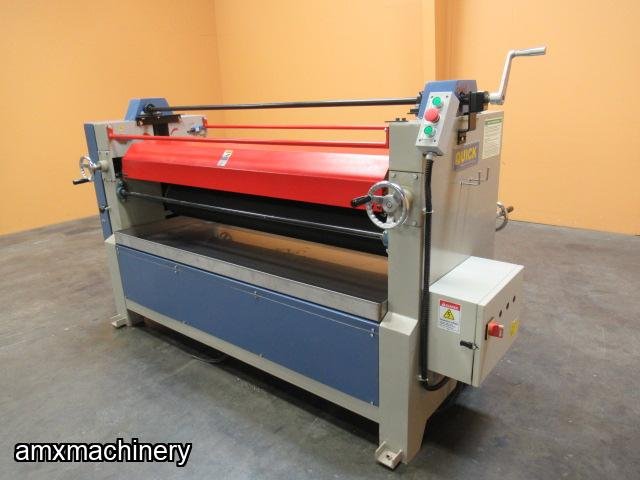

PARTE: 12132 - ENGOMADORA 1 LADO – 63” ANCHO - QUICK
COMO NUEVA – NUNCA USADA
Width capacity: 63"
Maximum opening: 1-3/4"
Feed rate: 64 FPM (single speed)
8.27" diameter grooved acid and heat resistant SBR rubber covered glue rolls
6.9" diameter hard rubber covered doctor rolls
Glue spread and material thickness are manually adjusted made by turning chrome plated hand wheels
Aluminum drip pan catches clean up water
Powered by 2 HP motor
Includes roll guards and emergency stop bars
Dimensions: 94" W x 37" D x 54" H
Machine weight: 1,600 lbs.
Electrical requirements: 15 amps @ 220 Volt 3-phase
