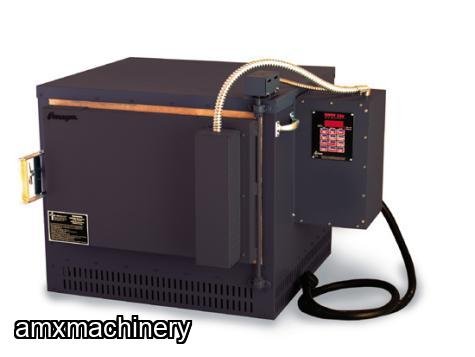

HORNO PARA CERAMICA, VIDRIO, METALES - 132 LITROS

PARTE: 2PG-JANUS24 – HORNO PARA CERAMICA, VIDRIO, METALES - 132 LITROS

NUEVO CON GARANTIA

Heating elements are mounted in the top, sidewalls, and door.

Select between glass and pottery with the flip of a switch. With the switch in the glass position, heat comes from the top elements and the middle sidewall element. With the switch in the pottery position, heat comes from only the sidewall elements.

In the glass mode, fuse and sag large glass projects placed on a single shelf. In the pottery mode, fire to cone 10. You can also fire several shelves of smaller glass pieces in pottery mode.

The Janus-24 digital heats from the top, three sides and door for unsurpassed heat distribution. Bend glass for curved windows or cabinet doors and to repair lampshades. Make huge glass-fused platters. Crack the door to drag a rod across the softened glass or to emboss designs in the surface. Explore small-to-medium sized casting and pâte de verre. Enjoy the glittering beauty of dichroics. Make treasured gifts.

The elements in the roof are mounted in a firebrick “ball” groove that eliminates element pins. The element coils are wider than the groove opening, so the elements stay in place without pins. The groove dissipates heat efficiently.

Wires are fastened to the elements with heat-dissipating connectors refined and proven over many years in Paragon kilns. Elements are coiled from the finest high-temperature wire available.

Will you anneal glass for long periods in your Janus-24? Then you should order the mercury relay upgrade. The mercury relays found on our large industrial kilns outlast mechanical relays. The life of the quiet, reliable mercury relay has been measured in millions of on/off cycles. Please call for a price on the mercury relay upgrade.

The insulating firebrick, wrapped in heavy-gauge steel, soak up heat for slow, efficient cooling. A double heat shield and air gap between the kiln and ventilated switch box help keep electrical components cool for long, trouble-free service. Costly heavy-gauge nickel-plated copper wiring is covered with high temperature glass-braided insulation. The thermocouple, which senses temperature inside the kiln, is protected with a high-nickel stainless steel sheath for long life.

The spring-pressure latch and a ½" recess around the edge of the firebrick door keep the door tightly closed. The door remains rock-steady on a heavy hinge shaft. Four hand lifts aid moving. The base is open in the back and slotted to dissipate heat.

Watch the red-hot glass through two tapered peepholes, drilled one above the other in the wall opposite the switch box. Peephole plugs are included.

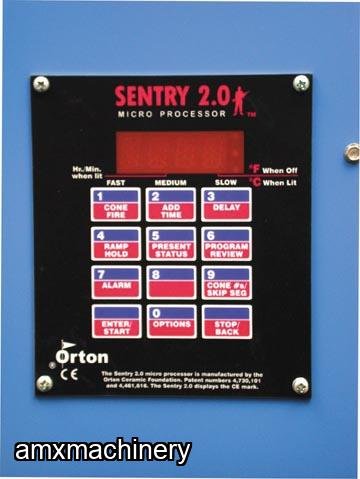

The digital Sentry 2.0 includes two modes: Cone-Fire with programmed slow cooling and 18-Segment Ramp-Hold. Manufactured by the Orton Ceramic Foundation exclusively for Paragon.

You will be amazed at the convenience of digital firing. The reliable solid-state Sentry controller continually monitors the firing so you can spend your time productively without closely watching the kiln. (Please remember, however, to check the kiln during firing and to monitor it near the expected shutoff time.) The sealed touch pad keeps out dust and is easy to wipe clean.

Paragon’s innovative controller will help you achieve consistent results from one firing to the next. The controller has powerful features that you will enjoy using. Yet we have also worked hard to make the controller user-friendly.

Do you ever wonder how much electricity your kiln uses? The digital controller can figure this for you with the press of a button. Find out how little a kiln actually costs to fire. Learn to conserve energy by experimenting with firing speed, load density, etc.

The Janus-24 has a durable high temperature, water-base finish. We chose water-base paint because of the low emissions during spraying. This creates a safer working environment for our employees and cuts down on pollution.

And, of course, the Janus-24 is proudly made in America by skilled workers. Many of them have been with Paragon for over a decade.

Martin Bush of Richardson, Texas owns a Janus-24. “What I like about it is the ability to fire ceramics, so I can make my own molds for slumping glass,” said Martin. “I have noticed that in the glass mode, the kiln cannot handle fast temperature rates (500 degrees per hour or higher), usually when I do pot melts. No problem. I just use the ceramic mode, which easily handles the higher rates. The size is great for a variety of projects, from small to large. Now that I see where I can use the ceramic setting with multiple shelves on small projects, even better!”

Made in America

Glass/pottery selection switch

3” insulating refractory firebrick walls

Operate the door latch with one hand.

Sidewall elements in dropped, recessed brick grooves are easy to replace.

Two peepholes on the left kiln wall

A steel floor pan supports the entire brick bottom.

One year limited warranty

Available in 240, 200, 208, or 380 volt, 50 or 60 hertz, single or 3 phase.

Since the Janus-24 is designed for porcelain, it also easily fire ceramics, china paint, decals, gold and, of course, glass.

The Furniture Kit (Sold Separately)

The furniture kit consists of carefully selected fireclay shelves and posts for the Janus-24. When estimating the price of the kiln, add the cost of furniture. The furniture allows you to stack multiple layers of ware. Without it, you could fire only the ware that would fit on the kiln bottom.

Furniture Kit for Janus-24

1 - C-22GL - 22” Square Shelf

2 - C-30 – 22” x 11” Shelves

1 1/2" wide Square Posts, 4 of each – 1/2”, 1”, 2”, 3”, 4”, 5” lengths

1 lb. Glass Separator

Furniture Kit Shipping Weight: 76 lbs.

SPECIFICATIONS

Max. Temperature: 2350F/1287C

Max. Temperature: 2350F/1287C

Amps: 45

Phase: 1

Watts: 10800

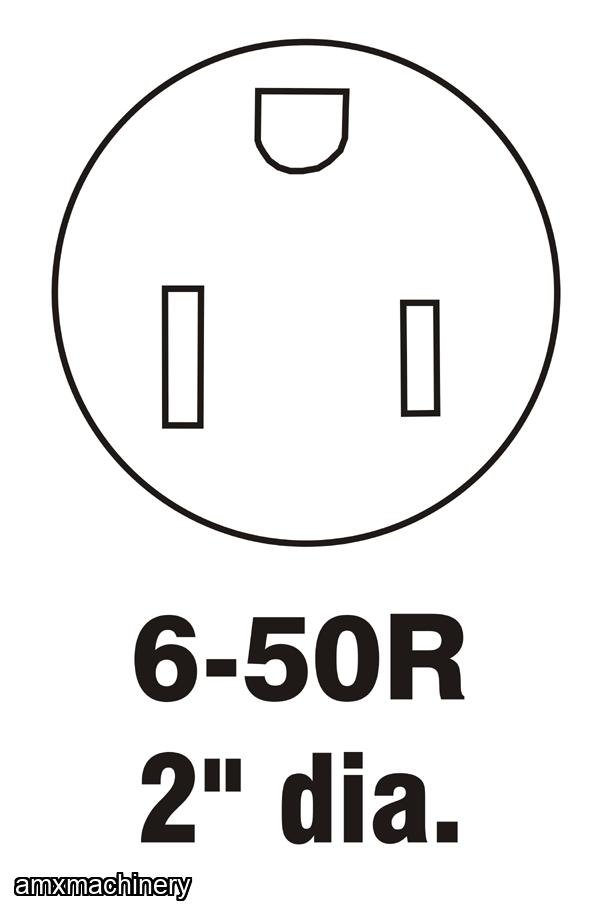

Nema: 6-50R

Breaker Size: 60

Circuit Copper Wire Size: 6 gauge

TUV tested to CSA and UL Standard 499: Y

CE: N

IMPORTANT: Some areas such as Canada and Europe require a lid or door safety switch on kilns.

Control Type: Sentry Digital 12-key Ceramics

Voltage: 240

Hertz: 60

Nema Details

Kiln Type: Front Loading Square

Sides: 4

Understanding Chamber Measurements

Chamber Volume: 4.68 CU.FT. - 132.52 liters

Chamber Width: 24.00 IN - 610 mm

Chamber Depth: 22.50 IN - 572 mm

Chamber Height: 15.00 IN - 381 mm

The Outer Size of the Kiln and the Shipping Size: Width = Left to Right; Depth = Front to Back; Height = Top to Bottom

Outer Size: 40.50W x 32.00D x 29.50H Inches - 1029W x 813D x 749H mm

Ship Size: 47.00W x 43.00D x 42.00H Inches - 1194W x 1092D x 1067H mm

Ship Weight: 425.00 Lbs. - 192.78 Kg.

Ship Method & Notations: This Kiln Ships Via Truck

Part Number: 38612N4GGA   * Base Model

Disclaimer: The specifications above assume that the kiln will be plugged into a dedicated circuit. Local electric codes supersede our recommendations.

The pricing and electrical specifications for the above products reflect their design for use in the United States. The International versions of most models will have variations in electrical specifications and price due to consumer safety requirements or electrical regulations.
