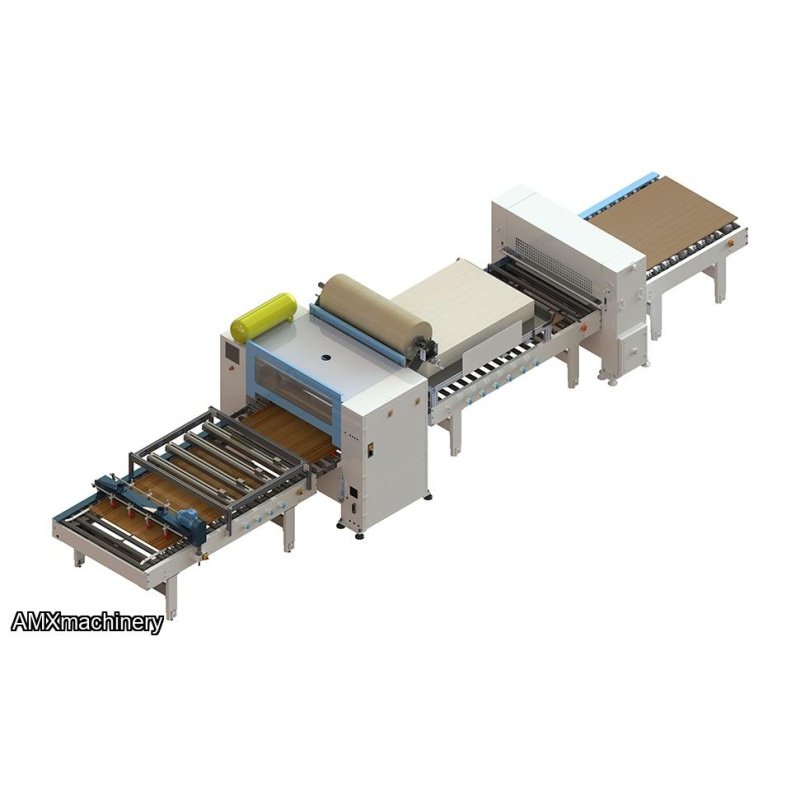

LAMINADORA DE PANELES - COMPACTA - FOIL

PARTE: 4VE-VFL-1400-CRL - LAMINADORA DE PANELES - COMPACTA - FOIL

Nueva con garantía

COMPONENTES:

PARTE: 4VE-VCH-1300-L3-NABI - TRANSPORTADOR CON 4 CALENTADORES INFRAROJOS Y CEPILLO

NO          STANDARD SPECIFICATIONS                       QTY

1              Silicone coated pipes (with anti static system )          20

2              Panel guiding system (Adjustable from the center)     1

3              The belt drive system                                                  0

                                                                TECHNICAL DATA

MOTOR POWER                                             : 0,75 kW 900 d/d i : 7,5 geared

CONVEYOR WORKING SPEED                   : 5 - 30 m / min

ROLL DIAMETER AND LENGTH                  : Ø63mm x 1450 mm

ROLLER AXIS INTERVAL                            : 150 mm

CONVEYOR WORKING HEIGHT                 : 1000 mm

CONVEYOR WORKING WIDTH                   : 200 - 1300 mm

CONVEYOR DIMENSIONS                           : 1600 x 3000 x 1000 mm , 400 kg

PARTE: 4VE-VFL-1400-C - APLICADOR COMPACTO DE PEGAMENTO PLANO

NO       STANDARD SPECIFICATIONS                                                             QTY

1          Laminating machine just for flat surfaces                                                1

2          Steel Gluing Roller, Silicon Dosage Roller, Silicone Pressure Roller         1

3          Heating system                                                                                        4

4          Glue level sensor                                                                                      1

5          PLC screen                                                                                                1

                                                                        TECHNICAL DATA

MOTOR POWER : -

DOSAGE ROLLER                                            : 0,75 kW 1400 d/d i : 50 geared

GLUE APPLİCATİON ROLLER                          : 1,5 kW 1400 d/d i : 40 geared

PALET GRUBU                                                 : 2,2 kW 1400 d/d i : 50 geared

ISITICI GÜCÜ                                                   : -

HEATER POWER                                             : 4,8 kW

GLUE APPLİCATİON ROLLER                          : 4,8 kW

TOTAL POWER                                                : 20,35 kW Gluing System

PALLET WORKING SPEED                                : 5 - 15 m / min

ROLL DIAMETER AND FEATURE                      : -

DOSAGE ROLLER                                             : Ø 218 mm (Silicon)

GLUE APPLİCATİON ROLLER                           : Ø 240 mm (Steel)

PRESSURE ROLLER                                           : Ø 250 mm (rubber coating)

PANEL OPERATING RANGE                             : 4mm - 45 mm

CONVEYOR WORKING WIDTH                        : 200 - 1300 mm

DIMENSIONS                                                   : 2500 x 2000 x 1850 mm (W x D x H)

PARTE: 4VE-VCH-1300-L2-NA - TRANSPORTADOR DE SALIDA

NO       STANDARD SPECIFICATIONS                                     QTY

1          Silicone coated pipes                                                     14

2          The belt drive system                                                     1

3          Suitable till 1300 mm panel width                                  1

4          Panel guiding system (Adjustable from the center)        1

                                                                        TECHNICAL DATA

MOTOR POWER                                              : 1,1 kW 1400 d/d i: 10 geared

CONVEYOR WORKING SPEED                        : 5 - 30 m / min

ROLL DIAMETER AND LENGTH                       : Ø63mm x 1450 mm

ROLLER AXIS INTERVAL                                 : 150 mm

CONVEYOR WORKING HEIGHT                      : 1000 mm

CONVEYOR WORKING WIDTH                        : 200 - 1300 mm

CONVEYOR DIMENSIONS                               : 1600 x 2000 x 1000 mm , 400 kg

PARTE: 4VE-HY-M-55 - 200 KG TAMBOR, MANGUERAS, PISTOLAS APLICADORAS

NO       STANDARD SPECIFICATIONS             QTY

1          Suitable for panel laminating line            1

2          Stable Gluing                                            1

3          Quickly Melt Glue                                     1

4          Provide higher working speed                 1

                                                TECHNICAL DATA

200KG DRUM                           :

WORKİNG ABİLİTY                   : 50kg/Hour

SİZE                                         : 1660 x 650 x 2240 mm

WEİGHT                                   : 305 kg

MAİN POWER                          : 14,6 Kw

WORKİNG VOLTAGE               : 380V 50/60HZ

AİR COMPRESSOR                  : 8,0 kg/cm2

MOTOR ROTATİNG                  : 0,5 - 60 / min

HOSE 5M                                 : 2 pcs

GLUE GUNS                             : 2 pcs
