ID: 1303
Open
Description

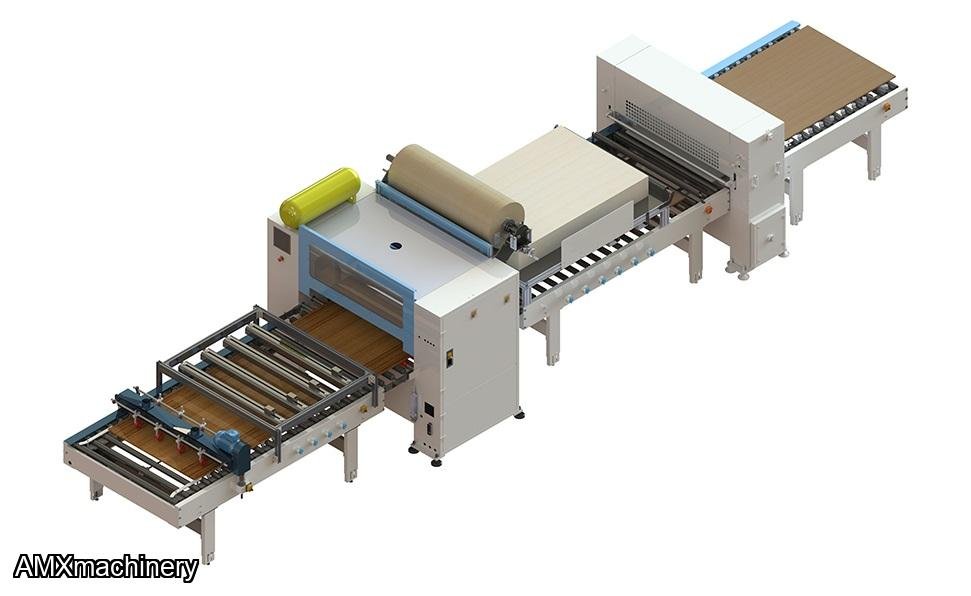

PARTE: 4VE-VFL-1400-CRL - LAMINADORA DE PANELES - COMPACTA - FOIL
Nueva con garantía
COMPONENTES:
PARTE: 4VE-VCH-1300-L3-NABI - TRANSPORTADOR CON 4 CALENTADORES INFRAROJOS Y CEPILLO
NO STANDARD SPECIFICATIONS QTY
1 Silicone coated pipes (with anti static system ) 20
2 Panel guiding system (Adjustable from the center) 1
3 The belt drive system 0
TECHNICAL DATA
MOTOR POWER : 0,75 kW 900 d/d i : 7,5 geared
CONVEYOR WORKING SPEED : 5 - 30 m / min
ROLL DIAMETER AND LENGTH : Ø63mm x 1450 mm
ROLLER AXIS INTERVAL : 150 mm
CONVEYOR WORKING HEIGHT : 1000 mm
CONVEYOR WORKING WIDTH : 200 - 1300 mm
CONVEYOR DIMENSIONS : 1600 x 3000 x 1000 mm , 400 kg
PARTE: 4VE-VFL-1400-C - APLICADOR COMPACTO DE PEGAMENTO PLANO
NO STANDARD SPECIFICATIONS QTY
1 Laminating machine just for flat surfaces 1
2 Steel Gluing Roller, Silicon Dosage Roller, Silicone Pressure Roller 1
3 Heating system 4
4 Glue level sensor 1
5 PLC screen 1
TECHNICAL DATA
MOTOR POWER : -
DOSAGE ROLLER : 0,75 kW 1400 d/d i : 50 geared
GLUE APPLİCATİON ROLLER : 1,5 kW 1400 d/d i : 40 geared
PALET GRUBU : 2,2 kW 1400 d/d i : 50 geared
ISITICI GÜCÜ : -
HEATER POWER : 4,8 kW
GLUE APPLİCATİON ROLLER : 4,8 kW
TOTAL POWER : 20,35 kW Gluing System
PALLET WORKING SPEED : 5 - 15 m / min
ROLL DIAMETER AND FEATURE : -
DOSAGE ROLLER : Ø 218 mm (Silicon)
GLUE APPLİCATİON ROLLER : Ø 240 mm (Steel)
PRESSURE ROLLER : Ø 250 mm (rubber coating)
PANEL OPERATING RANGE : 4mm - 45 mm
CONVEYOR WORKING WIDTH : 200 - 1300 mm
DIMENSIONS : 2500 x 2000 x 1850 mm (W x D x H)
PARTE: 4VE-VCH-1300-L2-NA - TRANSPORTADOR DE SALIDA
NO STANDARD SPECIFICATIONS QTY
1 Silicone coated pipes 14
2 The belt drive system 1
3 Suitable till 1300 mm panel width 1
4 Panel guiding system (Adjustable from the center) 1
TECHNICAL DATA
MOTOR POWER : 1,1 kW 1400 d/d i: 10 geared
CONVEYOR WORKING SPEED : 5 - 30 m / min
ROLL DIAMETER AND LENGTH : Ø63mm x 1450 mm
ROLLER AXIS INTERVAL : 150 mm
CONVEYOR WORKING HEIGHT : 1000 mm
CONVEYOR WORKING WIDTH : 200 - 1300 mm
CONVEYOR DIMENSIONS : 1600 x 2000 x 1000 mm , 400 kg
PARTE: 4VE-HY-M-55 - 200 KG TAMBOR, MANGUERAS, PISTOLAS APLICADORAS
NO STANDARD SPECIFICATIONS QTY
1 Suitable for panel laminating line 1
2 Stable Gluing 1
3 Quickly Melt Glue 1
4 Provide higher working speed 1
TECHNICAL DATA
200KG DRUM :
WORKİNG ABİLİTY : 50kg/Hour
SİZE : 1660 x 650 x 2240 mm
WEİGHT : 305 kg
MAİN POWER : 14,6 Kw
WORKİNG VOLTAGE : 380V 50/60HZ
AİR COMPRESSOR : 8,0 kg/cm2
MOTOR ROTATİNG : 0,5 - 60 / min
HOSE 5M : 2 pcs
GLUE GUNS : 2 pcs
