Identificador: 147
Abierta
Descripción

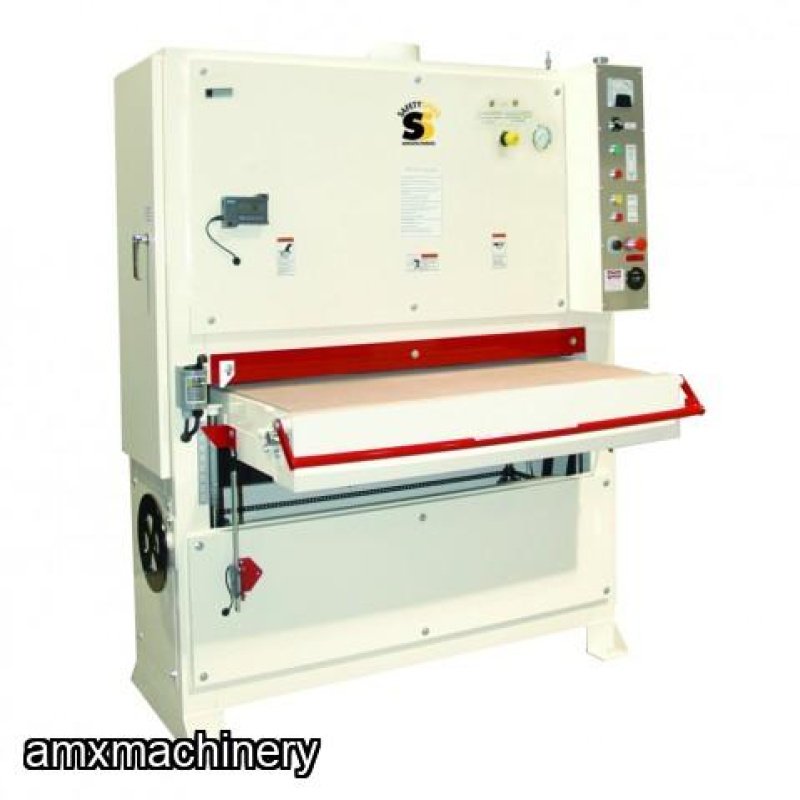

ARTE # 2SS-4375-10 - LIJADORA - 42" ANCHO - 1 LIJA - 10 HP 1 FASE
PARTE # 2SS-4375-20 - LIJADORA - 42" ANCHO - 1 LIJA - 20 HP 3 FASES
PARTE # 2SS-4375-30 - LIJADORA - 42" ANCHO - 1 LIJA - 30 HP 3 FASES
Lijadora - Calibradora
Cabezales: 1 cabeza
Capacidad: 42" ancho
Standard Equipment
Photo electric belt tracking.
Pneumatic belt tensioning.
2 ½” graphite covered felt pad and adjustable platen.
2 rubber-covered pinch rollers 2 ½” OD.
2 machined idler rollers 4 ¼” OD with 1″ bearings.
Rubber-covered contact roller 5 ¼” OD with 1 ⅝” drive bearing.
Conveyor table set on four 1″ acme thread jackscrews.
2 height adjustment indicators.
6″ internal dust chute.
5 emergency stops.
3 year warranty.
Max. Working Length: Unlimited
Min. Working Length: 12"/305mm
Main Motor Options: 10 Hp, 1~ 220V, 20 Hp, 3~ 208V, 30 Hp, 3~ 230V
Max. Working Width: 42"/1070mm
Max. Working Thickness: 7 1/4"/184mm
Min. Working Thickness: 1/8"/3mm
Vacuum Requirement: 1000 CFM
Conveyor Speed: 0-18 FPM
Durometer Of Contact Roller: 60
Sanding Belt Size: 43" x 75"
Product shipping information
Weight: 2389 lbs
Dimensions: 60 x 62 x 71 in
OPCIONALES:
Lector digital de altura de la mesa
Contador de horas
Posicionador de la mesa electrica
Lijas abrasivas
