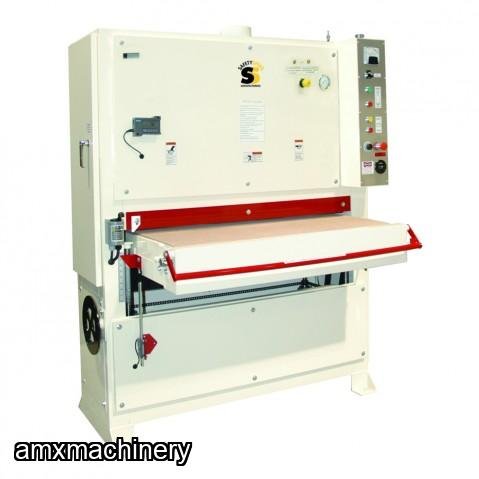

LIJADORA 42"

ARTE # 2SS-4375-10 - LIJADORA - 42" ANCHO - 1 LIJA - 10 HP 1 FASE

PARTE # 2SS-4375-20 - LIJADORA - 42" ANCHO - 1 LIJA - 20 HP 3 FASES

PARTE # 2SS-4375-30 - LIJADORA - 42" ANCHO - 1 LIJA - 30 HP 3 FASES

Lijadora - Calibradora

Cabezales: 1 cabeza

Capacidad: 42" ancho

Standard Equipment

Photo electric belt tracking.

Pneumatic belt tensioning.

2 ½” graphite covered felt pad and adjustable platen.

2 rubber-covered pinch rollers 2 ½” OD.

2 machined idler rollers 4 ¼” OD with 1″ bearings.

Rubber-covered contact roller 5 ¼” OD with 1 ⅝” drive bearing.

Conveyor table set on four 1″ acme thread jackscrews.

2 height adjustment indicators.

6″ internal dust chute.

5 emergency stops.

3 year warranty.

Max. Working Length: Unlimited

Min. Working Length: 12"/305mm

Main Motor Options: 10 Hp, 1~ 220V, 20 Hp, 3~ 208V, 30 Hp, 3~ 230V

Max. Working Width: 42"/1070mm

Max. Working Thickness: 7 1/4"/184mm

Min. Working Thickness: 1/8"/3mm

Vacuum Requirement: 1000 CFM

Conveyor Speed: 0-18 FPM

Durometer Of Contact Roller: 60

Sanding Belt Size: 43" x 75"

Product shipping information

Weight: 2389 lbs

Dimensions: 60 x 62 x 71 in

OPCIONALES:

Lector digital de altura de la mesa

Contador de horas

Posicionador de la mesa electrica

Lijas abrasivas
