Descripción

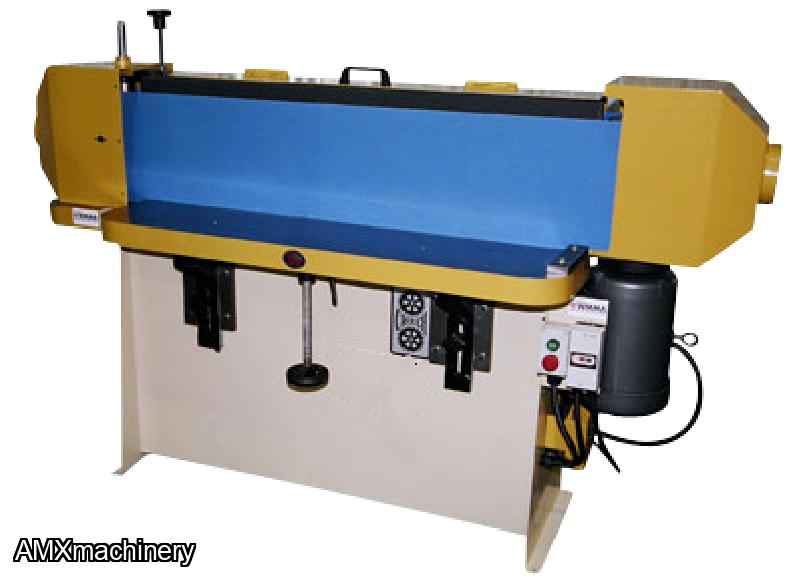

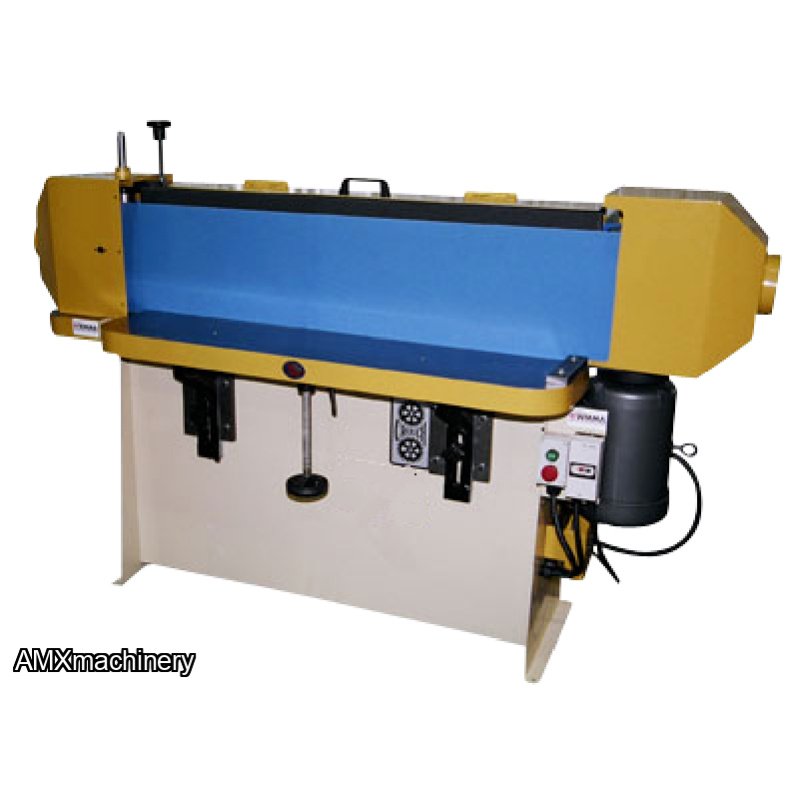

PARTE: 2RI-R258 - LIJADORA DE BANDA - 8"
Description:
The entire platen assembly raises and lowers to give the operator use of the entire belt surface. Designed for use with edge finishing devices common to the furniture and custom woodworking industry. The ability to use the machine for a variety of edge finishing applications makes this the industry’s most universal edge belt sander.
Standard Features:
- Single Sided Ground Steel Platen
- 6-Way Adjusting Front Table
- Swing Away Safety Dust Hood with 6" End Openings for Dust Collection
- Adjustable Oscillation Stroke Cam
- Dry-Lin Oscillation Ways
- Air-Jet Belt Cleaning Device
- Tiltable End Table
- Magnetic Controls
- Oscillation/Non-Oscillation Selector Switch
Technical Data and Specifications:
- Belt Size: 8" x 144"
- Platen Size: 10" x 56"
- Oscillation: 0"- 1" Adjustable
- Drive Wheel: 7.75" x 9"
- Drive Motor: 7.5 HP
- Oscillation Motor: 0.25 HP
- Electrical: 230V, 3Ø, 60Hz or 460V, 3Ø, 60Hz
- Air: 40-60 PSI
- Work height: 36″
- Footprint: 26.5" x 87″
- Table Area: 12″ x 56″
