Identificador: 1219
Abierta
Descripción

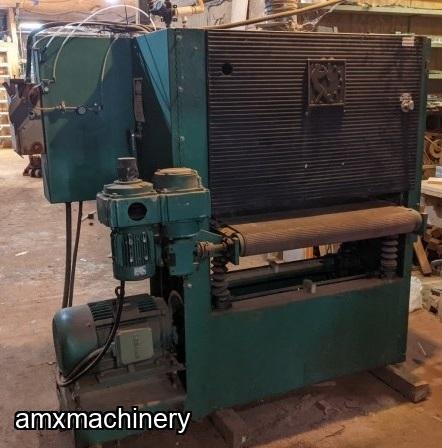

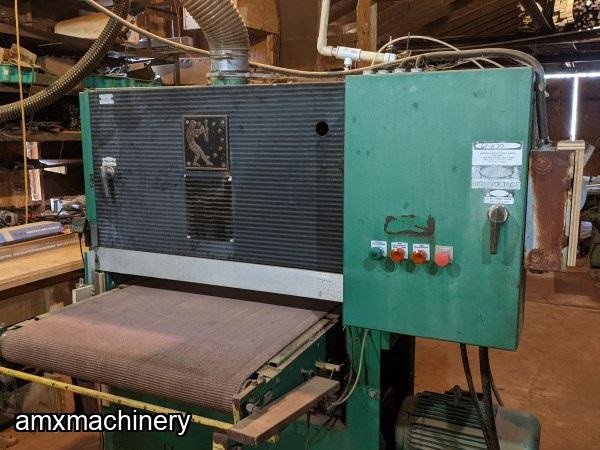

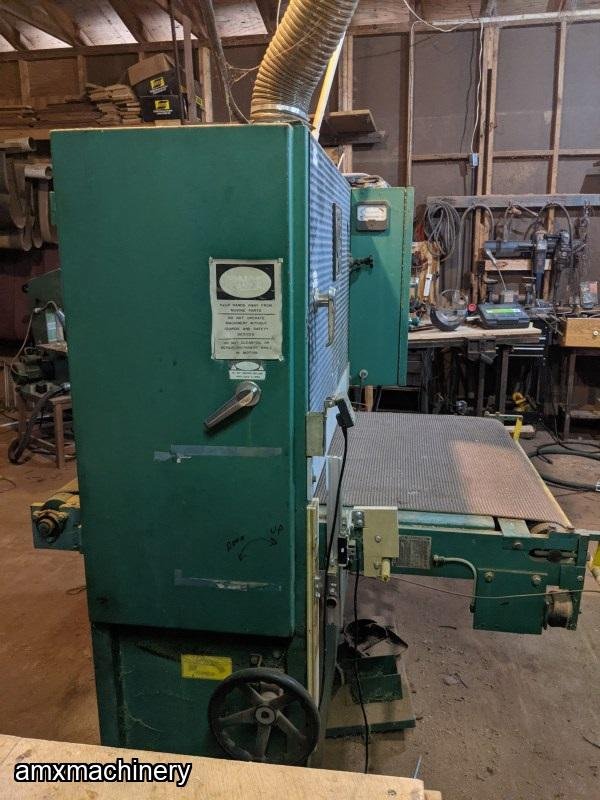

PARTE: 12219 – LIJADORA DE BANDA ANCHA – 36” ANCHO – 1 BANDA – TIMESAVERS
USADA – BUENAS CONDICIONES
0 to 8" thickness capacity, (manually adjusted via handwheel)
20 HP, 230/60/3 combination 4" diam. drum & platen sanding head
(60 - 65) durometer rubber covered contact drum
1 HP, 230/60/3 feed conveyor motor
(15 to 45 ft/min.) variable conveyor feed via variable speed pulley
24" infeed & 8" outfeed conveyor, (4 jack screws for raise & lower)
Automatic feed conveyor belt tracking
Dual rubber covered hold-down rollers before & after the sanding head
Retrofitted electric digital readout for thickness/opening
Electric eye abrasive belt tracking and amp meter
37" x 60" abrasive belts, (1950 SFPM abrasive belt speed)
6' x 5' x 6' approx. overall dimensions
Weighs approx. 3,750 lbs.
