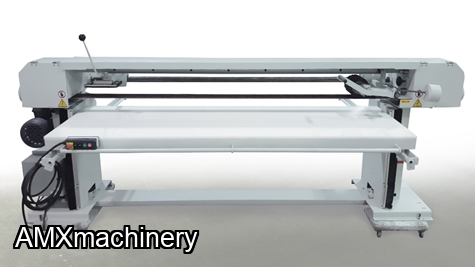

LIJADORA DE BANDA - MESA MOVIBLE – 2 BANDAS – MOTOR 5 HP - MESA 30”X 96” - USO RUDO
AMXmachinery
Description
PARTE: 2DO-PMC-HD2 – LIJADORA DE BANDA - MESA MOVIBLE – 2 BANDAS – MOTOR 5 HP - MESA 30”X 96”
USO RUDO
Nueva con garantía
Heavy duty welded structure. They feature dust hoods on both sides, a table with steel rollers and virtually wear free balanced and quiet running aluminum pulleys. All models are equipped with a magnetic starter (overload protection) and belt guards.
Maximum Part Length:
Pressure Pad Traveling Bar: 96"
Pressure Pad Traveling Bar Contact Wheel Assembly: 80"
Table size: 30" wide X 96" long
Steel table is covered with Russian Cherry wood plywood surface
Motorized vertical table with 28" vertical adjustment
Table weight capacity: 1000 lb
Two Abrasive Belt: 6" X 264", 4750 F.P.M.
Pulleys: 10" dia. X 6.25" face
Pressure Pad Traveling Bar
Hand Held Pressure Device
Magnetic starter with overload protection
Belt guards
Pneumatic tensioner
Sanding belt breaking detector
Dust collector outlet: 6" diameter @ 1200 cfm
Compressed air requirement: 90 psi
5 HP T.E.F.C. motor, 1750 rpm
Voltage: 220 or 440 / 3 / 60, 17 amps
OPTIONS
Single Phase 5 HP motor, 220 volts
Enlarge the table to 48"
Vulcanized Rubber Grooved Contact Wheel Assembly
- (for hairlining & fine graining)
Contact Wheel Assembly with Corrugated Stacked Disks
- (for weld seam removal & rough graining)
Variable speed for a 5 HP Motor:
- Allow belt speed between 3300 to 6300 ft./min.
Six (6) Vacuum cups with individual activation switch, to hold parts
