Identificador: 233
Abierta
.jpg)
.jpg)
Descripción

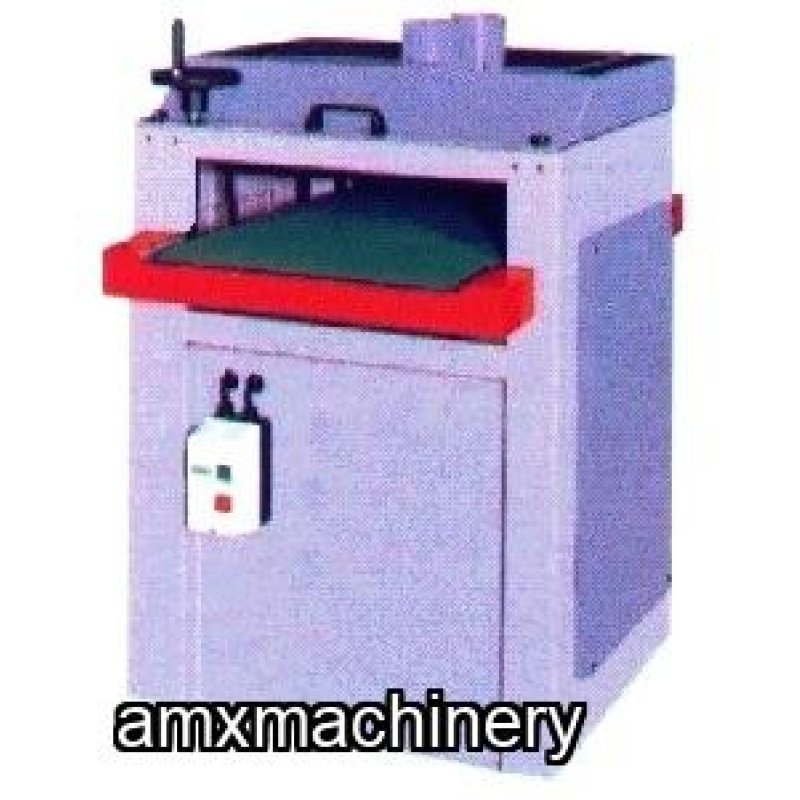

PARTE # 2TA-DS-2500 - LIJADORA DE TAMBOR LOBO/CASTALY - 25" DE ANCHO
PARTE # 2TA-DS-3700 - LIJADORA DE TAMBOR LOBO/CASTALY - 37" DE ANCHO
Caracteristicas:
- Easily operate with performance for sanding flat objects.
- Heavy sheet metal cabinet stand.
- Balanced cast aluminum sanding drums.
- Two different grits and level sanding drums are designed for fast and fine finish at one pass.
- First drum is cast aluminum; second drum is coated with rubber for fine sand paper.
- Automatic feeding operates by non-slipping rubber grips conveyor.
- Raise or lower the table easily by large hand wheel.
- Three spring loaded pressure rolls keep the object flat on conveyor without sliding.
- Full power industrial motor for durability usage.
- Magnetic switch with overload protection.
- Precision sealed long life bearing.
| SPECIFICATIONS | DS-2500 | DS-3700 |
| Max. Sanding Width | 25" | 37" |
| Max. Sanding Thickness | 4" | 4" |
| Table Dimensions | 25" x 34¼" | 37" x 34¼" |
| Sanding Drum Dia. | 6" | 6" |
| Speed of Sanding Drum | 1700 RPM | 1700 RPM |
| Feeding Speed | 12 FPM | 12 FPM |
| Sanding Speed | 5 HP | 5 HP |
| Feeding Motor | ¼ HP | ¼ HP |
| N.W. | 1050 LBS | 1120 LBS |
| G.W. | 1180 LBS | 1270 LBS |
