  1. Inicio
  2. Maquinas - Madera
  3. Molduradoras
Identificador: 253 Abierta

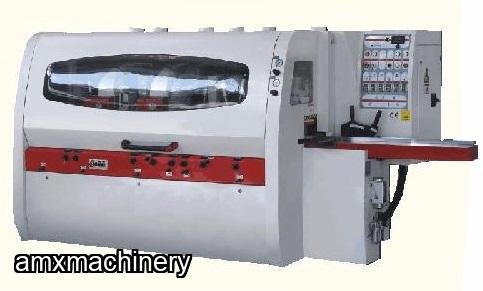

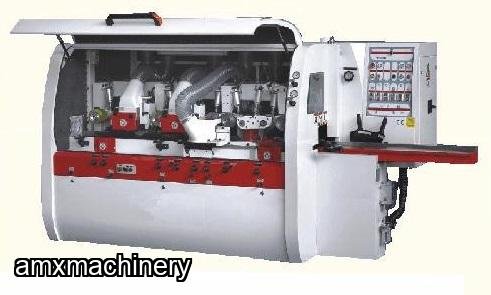

MOLDURADORA 6" - 8" ANCHO
MOLDURADORA 6" - 8" ANCHO
MOLDURADORA 6" - 8" ANCHO
MOLDURADORA 6" - 8" ANCHO
MOLDURADORA 6" - 8" ANCHO
MOLDURADORA 6" - 8" ANCHO
MOLDURADORA 6" - 8" ANCHO
MOLDURADORA 6" - 8" ANCHO
  • Detalles
  • Vendedor
  • Historial

MOLDURADORA 6" - 8" ANCHO

Contacte al Vendedor
Wish List
Report

Información del vendedor

AMXmachinery
Registrado Desde:
03.03.2020 23:18:57
Envienos sus comentarios
n/a
Ver otras Articulos
El listado no se vendio.
  • Descripción
  • Payment
  • Preguntas y Respuestas
  • Otros Artículos del Vendedor
Descripción

PARTE # 2TA-SM-155A - MOLDURADORA - 6" ANCHO,  5 CABEZALES

PARTE # 2TA-SM-156A - MOLDURADORA - 6" ANCHO,  6 CABEZALES

PARTE # 2TA-SM-205A - MOLDURADORA - 8" ANCHO,  5 CABEZALES

Nueva con garantia

Features:

  • Hard chrome plated table for maximum wear resistance.
  • Fully enclosed safety guard reduces noise and completely prevents chips splashing.
  • Anti-impact plate for over-width and over-thickness protection.
  • Oversized top and bottom rollers run synchronized, ensuring smooth feeding.
  • FRP plastic steel safety guard features maximum durability and impact resistance.
  • The three independent sections, pneumatic pressure for the infeed rollers, in-process rollers and outfeed rollers can be set with individual pressure allowing for consistent feeding results and outstanding effect.
  • The smooth initial feeding of the stock is achieved by the independently powered infeed rollers.
  • Exclusively designed template inserted pressure plate suits various stock thickness and profile variations.
  • Special pressure plate adapted with table feeding roller design, provides smooth and precise cutting of dry and wet wood, reducing the possibility of material jams.
  • The machine base is one piece coated from high quality cast iron (FC-25) for maximum stability of structure.
  • Base is machined by CNC machine equipment to ensure the utmost working accuracy.
  • The first bottom horizontal spindle can fit with a trimming cutter for trimming a groove at the workpiece side to achieve perfect straightness.
  • The specially designed short stock feeding mechanism combined with auxiliary pressure wheels permits the machine to perform machining on extra short stocks.
  • All spindles are precision constructed and especially heat treated to provide maximum cutting stability and permanent accuracy.
  • Each spindle is provided with a mechanical digital read out, that gives accurate adjustment.
  • Every cutter spindle can be adjusted "up and down" and "in and out" for quick setup.
  • Industrial full power motor for maximum cutting capacity.
  • Precision sealed long-life high speed ball bearing.

SPECIFICATIONS

SM-155A

SM-156A

SM-205A

Max. (Min.) Working Width

6" (3/4")

6" (3/4")

8" (3/4")

Max. (Min.) Working Thickness

4-3/4" (5/16")

4-3/4" (5/16")

4-3/4" (5/16")

Min. Working Length

9½"

9½"

9½"

1st Spindle Horsepower

7½ HP

7½ HP

7½ HP

2nd, 3rd Spindle Horsepower

5½, 5½HP

5½, 5½HP

7½,7½ HP

4th, 5th, 6th Spindle Horsepower

10, 7½, ~ HP

10, 7½, 7½ HP

15, 10, ~ HP

Feed Motor

3 HP

4 HP

5½ HP

Elevation

1/2 HP

1 HP

1 HP

Spindle Diameter

40 MM

40 MM

40 MM

Cutter Speeds (RPM)

6500

6500

6500

Variable Feed Speeds (FPM)

16 ~ 66

17 ~ 66

16 ~ 82

Cutterhead Diameter







       1st Bottom Head

5"

5"

5"

2nd ,3rd Vertical Head

5" ~ 6-1/4"

5" ~ 6-1/4"

5" ~ 6-1/4"

4th ~ 6 th Head

5" ~ 7"

5" ~ 7"

5" ~ 7"

Pneumatic Air 90 PSI (CFM)

5

5

5

Dust Outlet Diameter

5" x 5

5" x 6

5" x 5

N.W. (LBS)

5850

6400

7200

G.W. (LBS)

6700

7200

8100
