Description

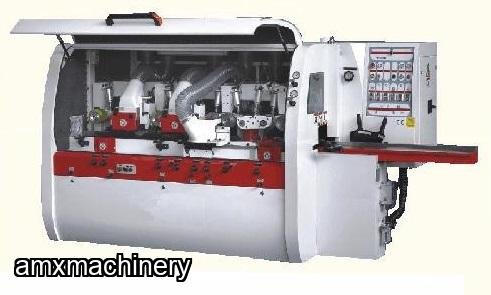

PARTE # 2TA-SM-236C - MOLDURADORA - 9" ANCHO, 6 CABEZALES
PARTE # 2TA-SM-236U - MOLDURADORA - 9" ANCHO, 6 CABEZALES
PARTE # 2TA-SM-237U - MOLDURADORA - 9" ANCHO, 7 CABEZALES
Nueva con garantia

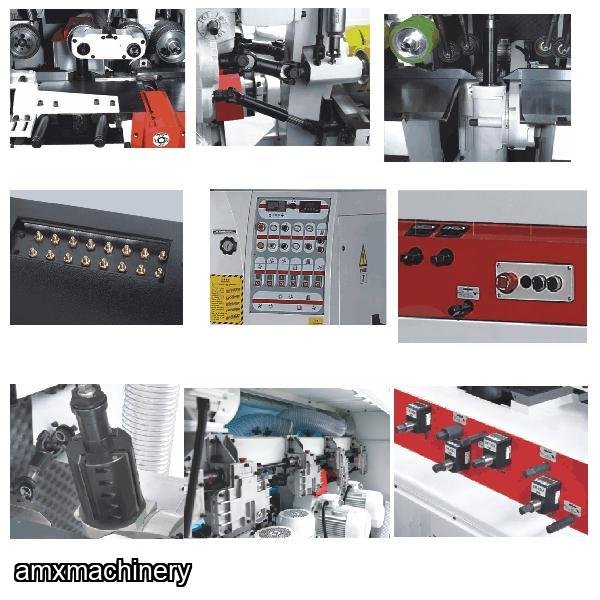

Features:
- Hard chrome plated table for maximum wear resistance.
- Fully enclosed safety guard reduces noise and completely prevents chips splashing.
- Anti-impact plate for over-width and over-thickness protection.
- Oversized top and bottom rollers run synchronized, ensuring smooth feeding.
- FRP plastic steel safety guard features maximum durability and impact resistance.
- The three independent section, pneumatic pressure for the infeed rollers, in-process rollers and outfeed rollers can be set with individual pressure allowing for consistent feeding results and outstanding effect.
- The smooth initial feeding of the stock is achieved by the independently powered infeed rollers.
- Exclusively designed template inserted pressure plate suits various stock thickness and profile variations.
- Special pressure plate adapted with table feeding roller design, provides smooth and precise cutting of dry and wet wood, reducing the possibility of material jams.
- The machine base is one piece coated from high quality cast iron (FC-25) for maximum stability of structure.
- Base is machined by CNC machine equipment to ensure the utmost working accuracy.
- The first bottom horizontal spindle can fit with a trimming cutter for trimming a groove at the workpiece side to achieve perfect straightness.
- The specially designed short stock feeding mechanism combined with auxiliary pressure wheels permits the machine to perform machining on extra short stocks.
- All spindles are precision constructed and especially heat treated to provide maximum cutting stability and permanent accuracy.
- Each spindle is provided with a mechanical digital read out, that gives accurate adjustment.
- Every cutter spindle can be adjusted "up and down" and "in and out" for quick setup.
- Industrial full power motor for maximum cutting capacity.
- Precision sealed long-life high speed ball bearing.
SPECIFICATIONS | SM-236C | SM-237U |
Max. (Min.) Working Width | 9" (3/4") | 9" (3/4") |
Max. (Min.) Working Thickness | 4-3/4" (5/16") | 4-3/4" (5/16") |
Min. Working Length | 9½" | 9½" |
1st Spindle Horsepower | 10 HP | 10 HP |
2nd, 3rd Spindle Horsepower | 10, 10 HP | 10, 10 HP |
4th, 5th, 6th Spindle Horsepower | 15, 15, 15 HP | 15, 15, 15 HP |
7th Spindle Housepower | ~ | 5.5 HP |
Feed Motor | 7½ HP | 7½ HP |
Elevation | 1½ HP | 1½ HP |
Spindle Diameter | 40 MM | 40 MM |
Cutter Speeds (RPM) | 6500 | 6500 |
Variable Feed Speeds (FPM) | 16 ~ 82 | 16 ~ 66 |
Cutterhead Diameter |
|
|
1st Bottom Head | 4" ~ 5" | 4" ~ 5" |
2nd ,3rd Vertical Head | 5" ~ 6-1/4" | 5" ~ 6-1/4" |
Top Head | 5" ~ 7" | 5" ~ 7" |
Last Bottom Head | 5" ~ 7" | 5" ~ 7" |
Pneumatic Air 90 PSI (CFM) | 5 | 5 |
Dust Outlet Diameter | 5" x 6 | 5" x 7 |
N.W. (LBS) | 9800 | 10200 |
G.W. (LBS) | 10700 | 11060 |
Optionales:
- AUTO FEED HOPPER, MAGAZINE
- AUTO DIGITAL THICKNESS CONTRO
- KNIFE CALIBRATE SETUP STAND
