Identificador: 1519
Abierta
Descripción

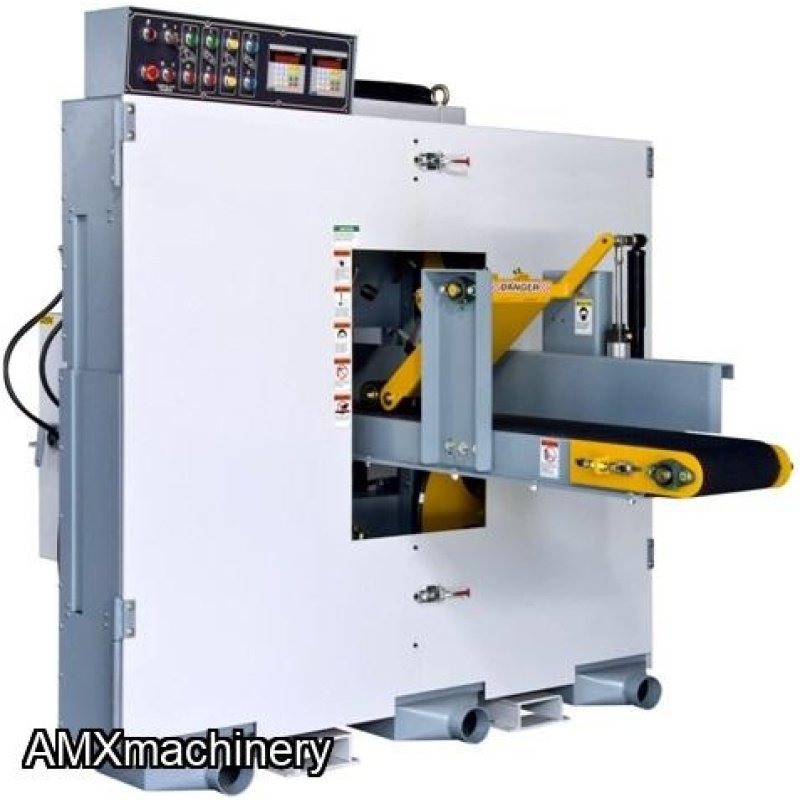

PART: 2CK-HR66-E - DUAL BAND TWIN BAND HORIZONTAL BAND RESAW
2 MOTORS 20 HP - 11.8” WIDE X 9.8” HEIGHT
NEW WITH WARRANTY
With 2′ digital readout control panel
Hydraulic blade tension
Saw wheel elevation is driven by motor
Conveyor is driven by hydraulic motor
|
Max. board/cant size |
11.8″
(W) x 9.8″ (T) |
|
Distance from upper blade to conveyor table |
.79″
– 6.7″ |
|
Distance from lower blade to conveyor table |
.47″
– 4.9″ |
|
Conveyor belt size |
11.2″
x 215.7″ |
|
Diameter of saw wheel |
28″ x 1″ wide |
|
Variable feed speed |
0
– 68 FPM |
|
Saw blade size |
168″ x 1″ x 2 pcs. |
|
Motor |
20 HP x 2 pcs. |
|
Gear box motor |
1/4 HP x 2 pcs. |
|
Dust hood |
4″ x 2 pcs. |
