PARTE: 12505 - SIERRA ESCUADRADORA VERTICAL – HOLZHER 1265 SUPER CUT

PARTE: 12505 - SIERRA ESCUADRADORA VERTICAL – HOLZHER 1265 SUPER CUT

USADA - MUY BUENAS CONDICIONES

Model:  1265S

Year of Manufacture:     2008

Condition:         Very Good

Electric: 230 Voltage 60 Cycle 3 Phase

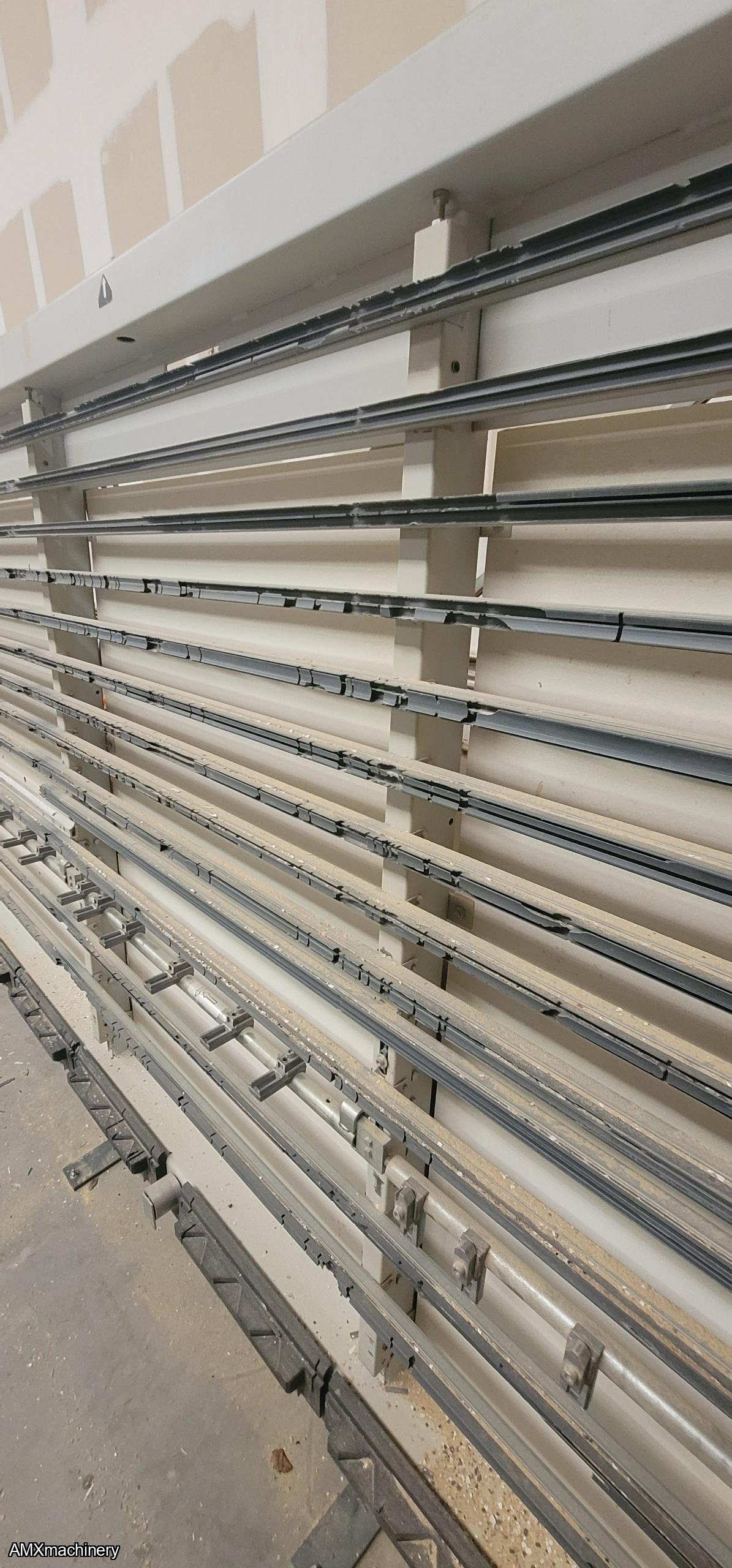

Holz Her Vertical Panel Saw

Specifications:

Main motor 4 HP

Depth of cut 2” max

Scoring unit with insert knives

Saw head rotates 90 degrees for rip or cross cutting

Manual shifting back grid

gauging bar with flip stop for midway fence with scale

Bottom roller with manual control for easy movement of panels

Integrated dust collection

Working dimensions:

Cutting dimensions (inches)

Length x height 129 x 64

Edging height 62 1/2

Cutting depth 2 (max)

Cutting depth depends on material type

Saw blade dia. 8.6’’ (220 mm)

Saw blade speed (rpm) at 60Hz 6540

Extraction Air requirement (cfm) 825

Air speed (fpm) 3936

Unit connection (mm) 65 (2 1/2’’)

Static under pressure (Pa) 900

Machine dimensions Floor space required (in./mm)

Length 163 / 4150

Depth 56 / 1420

Height 89 / 2260

Shipping Footprint:

163 (length) x 4 (width) x 89 (height)

Weight: 2500 lbs
