ID: 2280
Open
Description

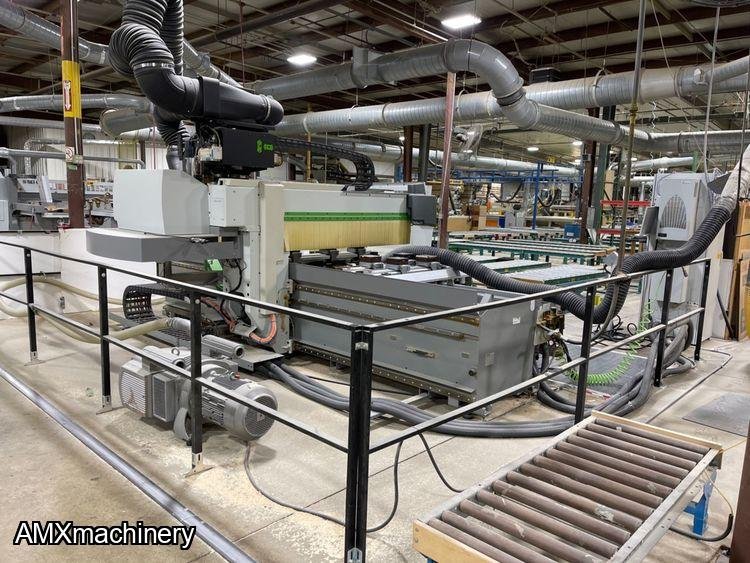

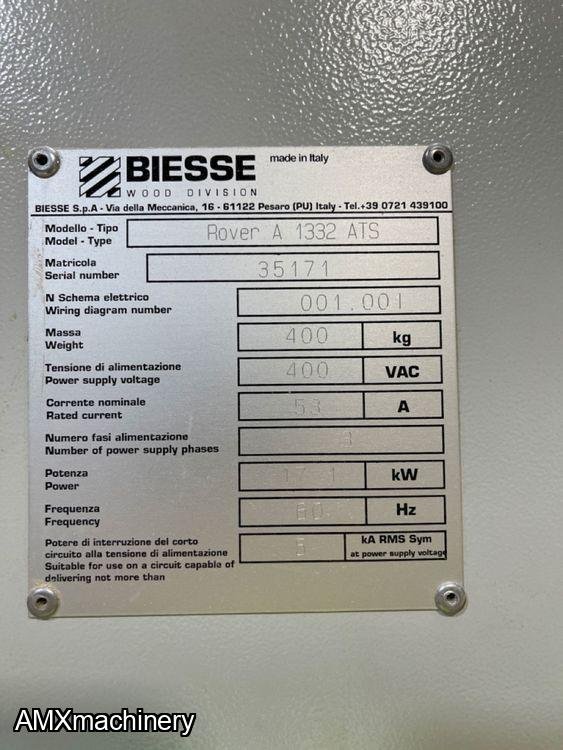

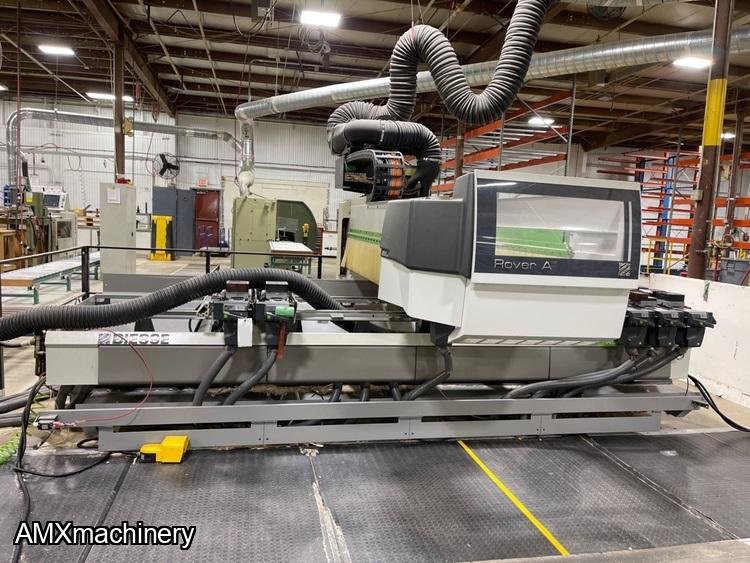

PARTE: 12525 - CENTRO DE TRABAJO CNC - ROVER A 1332 ATS
Year: 2012
Specifications:
Working Field:
X - Axis: 3280mm (129.1")
Y - Axis: 1320mm (52")
Z - Axis: 170mm (7")

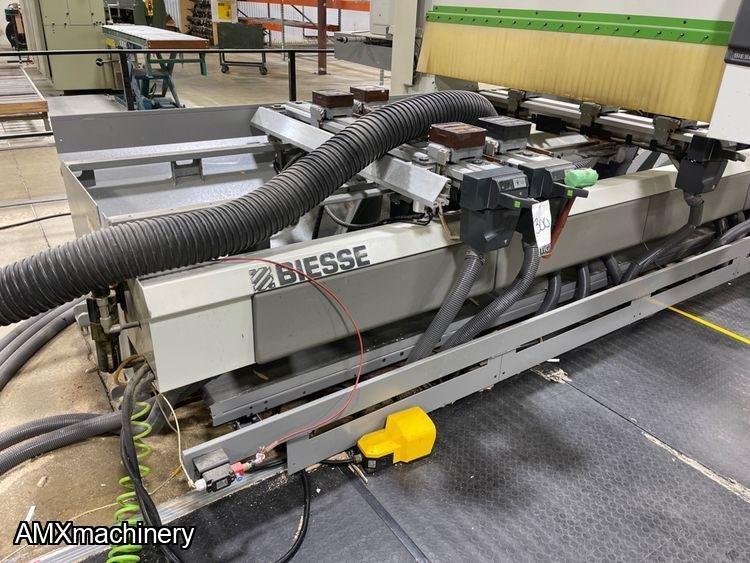

(6) ATS Panel Support Rails

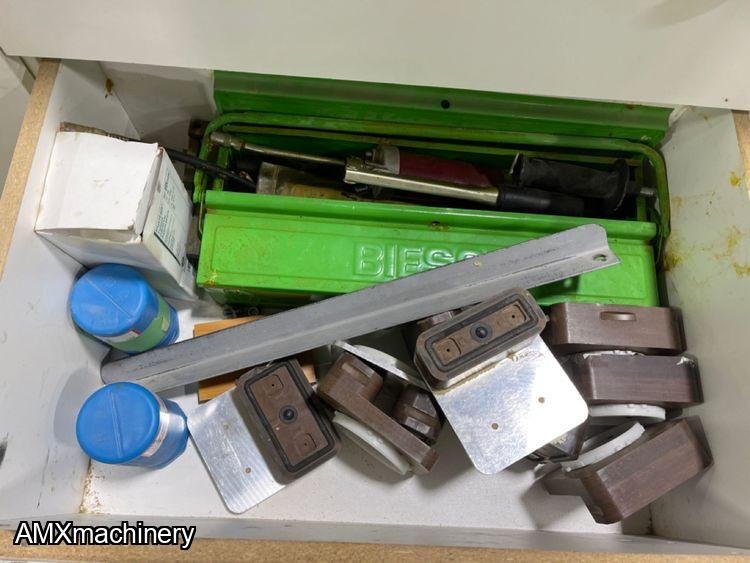

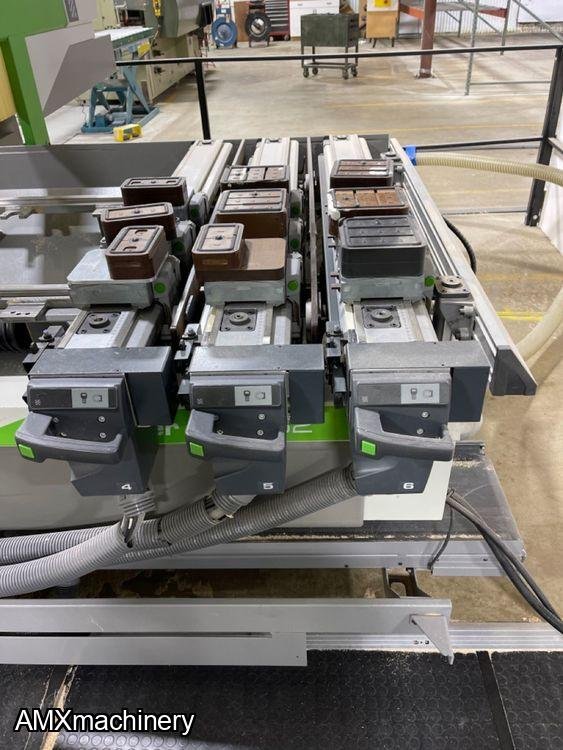

Biesse's ATS (auto locating pods)
Panel Lift Supports for Loading & Unloading of Sheets
Multi Zone Working Areas
Front, Rear & Side Stops

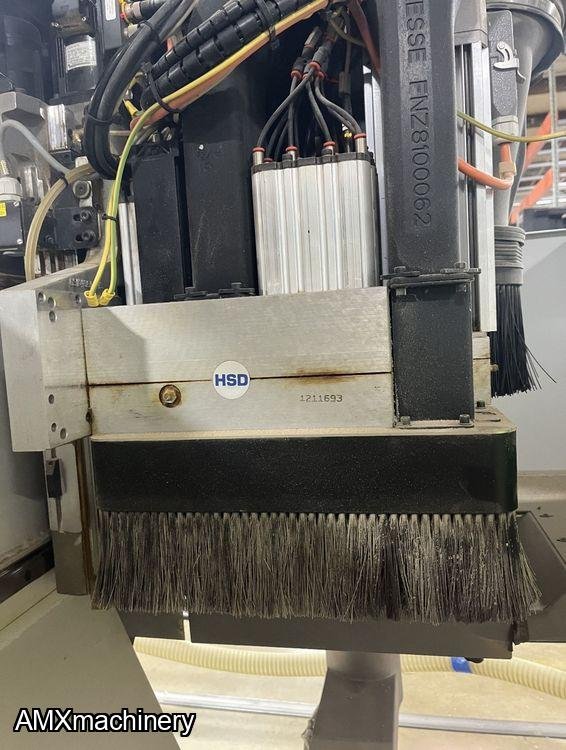

17.7 HP HSD Electrospindle (HSKF63)

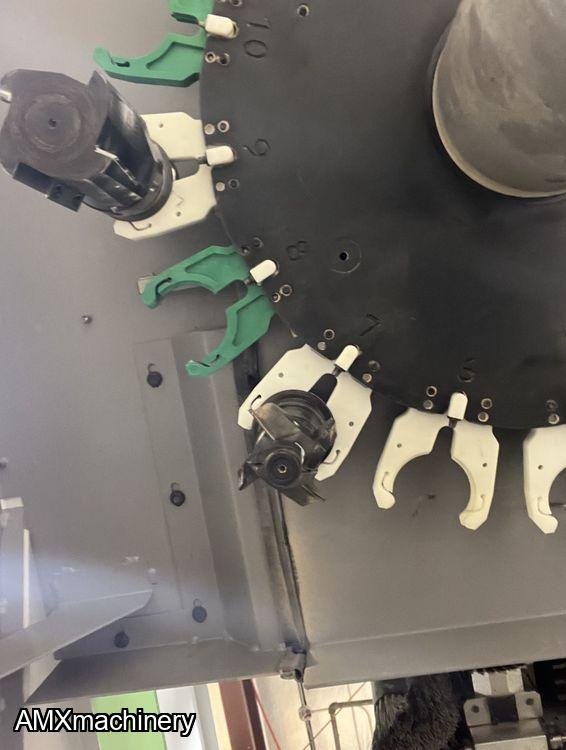

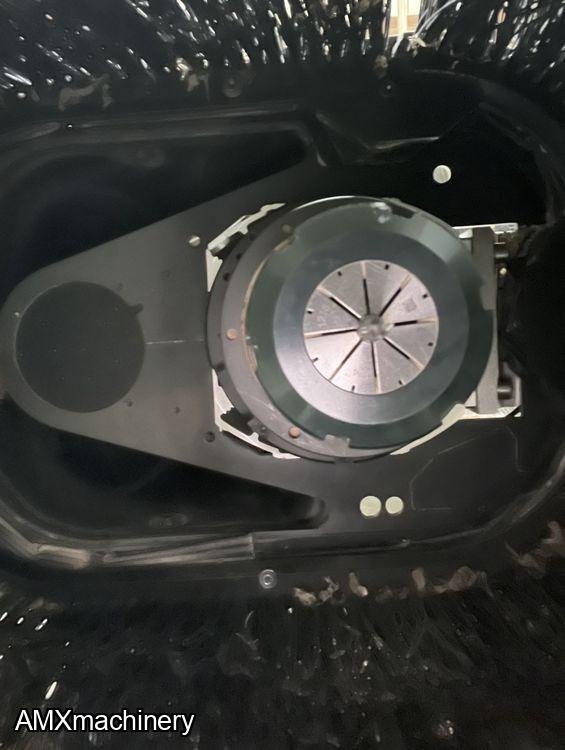

12 Position Rotary Tool Changer

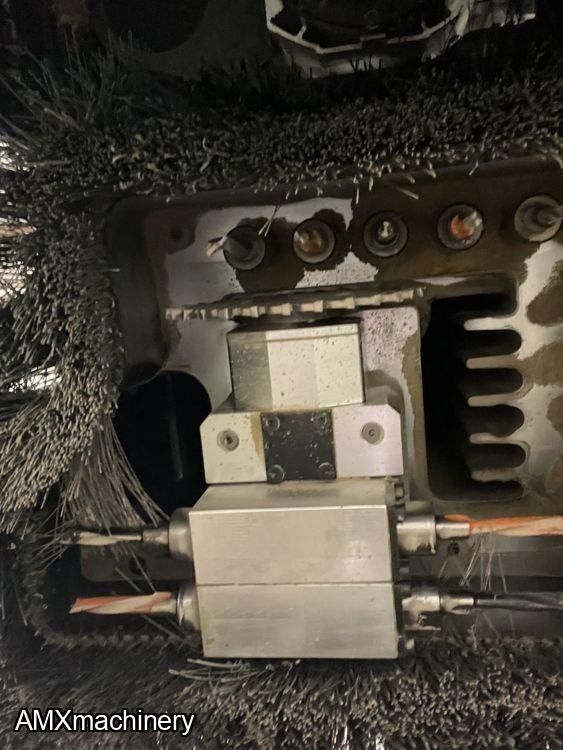

BH 17L Boring Head w/ quick change system
(10) Vert. Spindles (7 in X & 3 in Y)
(3) Horz. Spindles (2 in X & 1 in Y)
Saw Blade Unit 120mm
Auto Lubrication
Remote Keyboard Controls

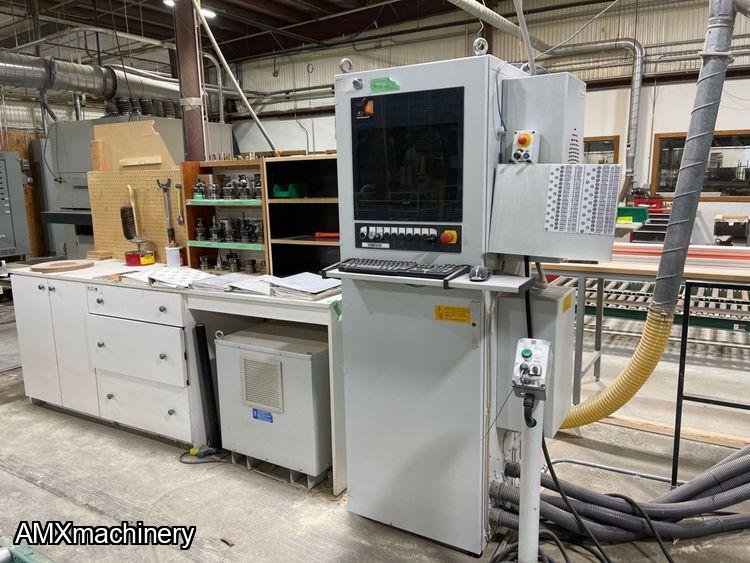

PC Driven XP600 Control
Windows XP Operating System
PC Computer w/19" Color Monitor
CD -ROM Reader
20 GB Hard Disk w/Keyboard & Mouse
Becker Vacuum Pump
B-Solid Software Included
|
