Identificador: 358
Abierta
Descripción

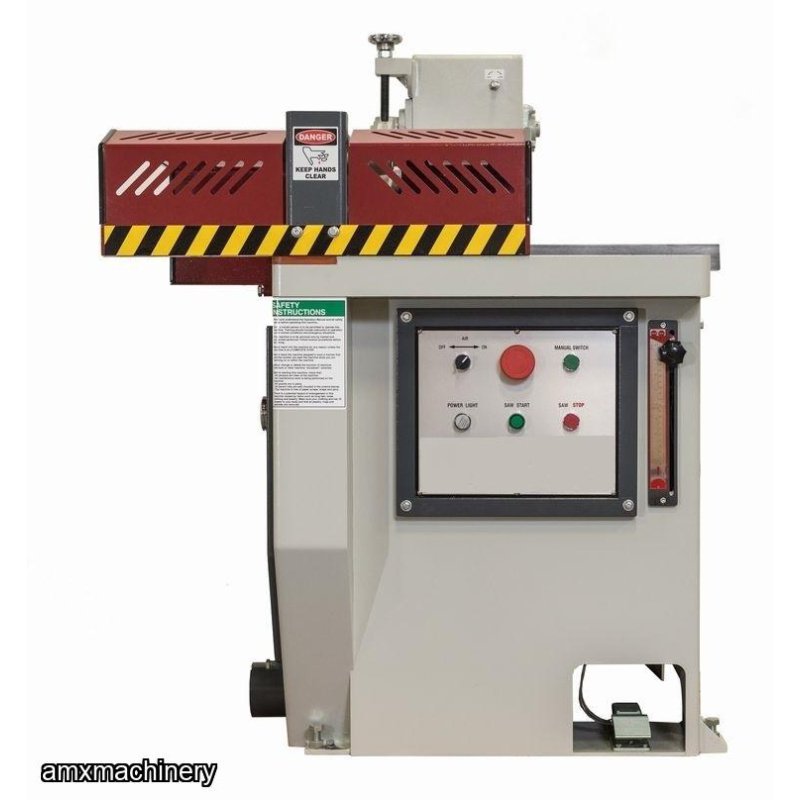

PARTE: 2NT-NTCS24L – SIERRA TRONZADORA – DISCO 24” – MOTOR 15 HP – IZQUIERDA – LEFT
PARTE: 2NT-NTCS24R – SIERRA TRONZADORA – DISCO 24” – MOTOR 15 HP – DERECHA – RIGHT - OPCIONAL
Nueva con garantía
CARACTERISTICAS
Capacidad máxima de corte: 2" x 21", 4" x 19", 6" x 15", 8" x 8"
15 HP motor, 3PH 230V with 24V magnetic controls
24” Carbide tipped blade included
1” Saw arbor diameter
Cycle operation: Pneumatic
Quick access on front of the machine to adjust blade stroke.
Safety interlock on blade access door
Table size: 28-3/4” x 45”
2100 RPM
Net / Gross weight: 1,285 lbs. / 1,458 lbs.
Machine dimensions: (L) 32" x (W) 45" x (H) 56"
Packing dimensions: (L) 36" x (W) 51" x (H) 61"
(1) Tool box and manual
Warranty is one year parts
All machines are tested stateside prior to shipment providing trouble free start up.
Shipping Dimensions 8' In feed 8' Out Feed: 100'' x 28'' x 19'' 235 Lbs.
DATOS TECNICOS:
Main Motor Hp. = 15 hp.
Voltage/ Freq. = 230 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 32 Amps
Electronics = CE Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 24 Volt Control Voltage
Assisted Start = Wye Delta
Pass-Line = 34''
Cut Envelope = 2'' x 21'' 8'' x 8''
Max. Width = 2'' x 21''
Max. Thickness = 8''
Arbor Rpm = 2100
Blade Size = 24'' Tungsten Carbide Tipped
No. of Teeth = 120 Tooth
Tooth Spacing = 5/8 In.
Blade Kerf = 4 mm
Dust Collection = (2) 4'' @ 900 CFM
Dust Port Out = 4'' Top 4'' Bottom
Arbor Diameter = 1'' Arbor
Cycles/Minute = 40 Cuts Per Minute
Hold Down Style = T Clamp
Emergency Stop = Push Button
Safety Feature = Safety Interlock Switch
Guarding = Full Guard with Clear View
Operation Style = Pneumatic Foot Pedal
Fence Type = Adjustable Fence
Fence Dims. = 2" x 25''
Adjust. Stroke = 7-3/4'' Adj. on Arbor Stroke
Frame Const. = 1/4'' Steel Construction
Worktable Dims. = 28-3/4'' x 45''
Table Const. = Cast Iron
Decible Rating = 68 dB
Net Weight = 1285 Lbs.
Gross Weight = 1458 Lbs.
Machine Dims. = 31-3/4'' x 45'' x 56''
Packaging Dims = 36'' x 51'' x 61''
