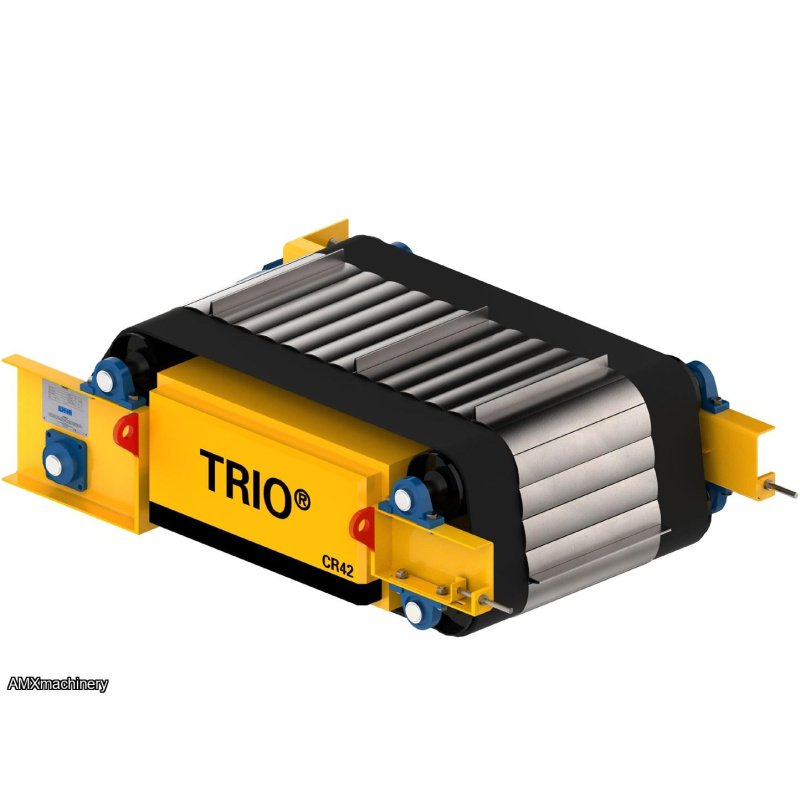

PARTE: 2RS-TRIO-CR42 – SEPARADOR MAGNETICO – HEAVY DUTY – TRIO CR42

PARTE: 2RS-TRIO-CR42 – SEPARADOR MAGNETICO – HEAVY DUTY – TRIO CR42

Nueva con garantía

TRIO Model CR42

Self-Cleaning Electro Magnetic separator complete as follows
Heavy Duty Steel Frame
42" x 48" air cooled magnet with wound coils and class H insulation
Designed for overhead suspension (4) contact points
5 HP TEFC 1800-RPM Electric Motor
Class I Shaft Mount Gear Reducer
Belt Drive complete with guard, drive belts, sheaves and bushings
Self-Cleaning Belt complete with HD Stainless Steel Amor Cladding
Magnet Rectifier
(2) Drum Pulleys with tensioners
Weight: 6200 LBS

Designed for heavy-duty applications and can be supplied in either electro or permanent magnetic arrangements.

TheTrio® CR and CRS series separators use an electrically powered magnetic field which can be easily adjusted using an AC-DC converter.

The CR series, feature self-cleaning stainless-steel-clad conveyor belts which can collect and discharge materials quickly to their desired locations.

TheTrio® CRP and CRPS series permanent magnets do not require any electrical power to generate a magnetic field.

The CRP series are also equipped with stainless-steel-clad conveyor belts which can be configured to enable self-cleaning functionality and driven either by electric or hydraulic power.

AllTrio® can be installed on a stationary crushing production line or incorporated onto a portable working station.



Features:

• A robust and proven design

• Able to feature either electro or permanent magnet configurations

• Self-cleaning functionality*

• Oil lubricated heavy-duty gearbox*

• Bolted replaceable stainless-steel belt armour*

• Machined crown and vulcanized lagged head pulley*

• Heavy duty fabricated tail pulleys*

• Standard XT style bushings*

• Service is available through the Weir Minerals global service network
