Description

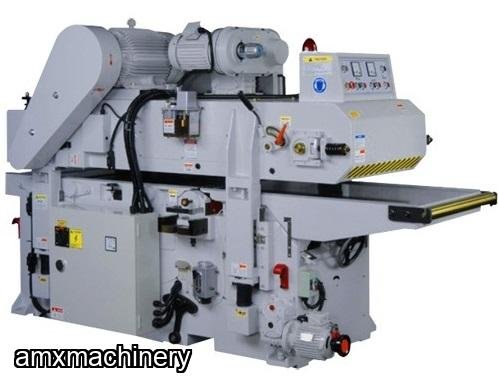

PARTE: 2TA-PL-18 - CEPILLO 2 CARAS - 18" ANCHO
PARTE: 2TA-PL-24 - CEPILLO 2 CARAS - 24" ANCHO
PARTE: 2TA-PL-38 - CEPILLO 2 CARAS - 38" ANCHO
OPCIONES:
CABEZAL CON CUCHILLAS EN ESPIRAL
CT-SCH-14T 14MM x 14MM - NAVAJAS PARA CABEZAL EN ESPIRAL
CT-SCH-15T 15MM x 15MM - NAVAJAS PARA CABEZAL EN ESPIRAL
FEATURES:
- - Upper & lower Straight Cutterheads for accurate and powerful two sided planning in one pass.
- - Optional Auto digital thickness control for quickly and accrue set up.
- - The work table surface was precision ground and then electro chrome plated and polished to a smooth mirror finish. The durable wear resistance surface is easy to clean and maintain.
- - A heavy duty feed conveyor with metal spikes firmly holds stock securely to the work table and feeds positively giving a smooth finish for rough or final planning.
- - A stepless variable speed control for smooth adjustment of feed rate depending on the material hardness, depth of cut & width to provide the best finish surface and fast cutting performance.
- - The in feed conveyor is fitted with numerous pressure pins, so the feeding process can be firmly stabilized, it will moderately press the stock, and then accurate planning surface can be performed to prevent jumping during processing of narrow or bend material.
- - A twist torsion anti kick back device provides additional safety. It’s designed to work in conjunction with the built in conveyor stop. It safeguards mechanical parts in case of overload.
- - The heavy duty rigid cast iron frame supports the work table and helps dampen vibration and ensures years of dependable service.
- Powerful industrial motor for maximum cutting capacity.
- - All precision sealed long life bearing for durability usage.

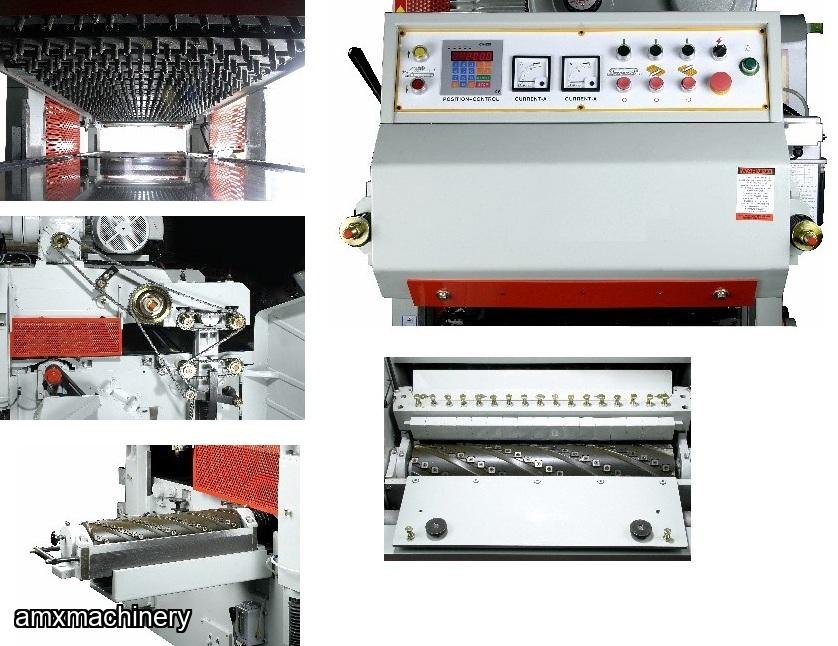

- - A swivel stand is designed for convenient knife changing on the lower spiral cutter head.
- - Changing the Carbide inserts on the upper cutter head only requires removal of the upper dust chute; the top cutter head inserts can then easily be changed.
- - The spiral insert heads design allows for fast accurate insert changes & a minimum down time.
- - Setup time is minimized to set cutter head height using the auto material thickness device.
- - The top and bottom cutter heads are precision balanced to provide consistently smooth chatter free planning regardless of the feed rate or hardness of material being planned.
- - A powerful ½ HP motor is utilized to quickly & conveniently make adjustments in thickness when setting the upper cutterhead.
SPECIFICATIONS | PL-18 | PL-24 | PL-38 |
Max. Planning Width | 17-3/4" | 24" | 38" |
Max. Planning Thickness | 6-5/8" | 6-5/8" | 7" |
Max. Cutting Depth | ¼" | ¼" | 3/8" |
Min. Planning Length | 12" | 12" | 13" |
Feeding Speed (Variable) | 10' ~ 70' | 10' ~ 70' | 22' ~ 52' |
Cutter Head Speed | 4200 RPM | 4200 RPM | 4000 RPM |
Number of Knives | 4 | 4 | 4 |
Upper Motor | 15 HP | 30 HP | 40 HP |
Bottom Motor | 10 HP | 15 HP | 20 HP |
Feeding Motor | 3HP | 5 HP | 5 HP |
Elevation Motor | ½ HP | 1 HP | 2 HP |
Table Size (L x W) | 88" x 16" | 93" x 24" | 111" x 38" |
N.W. | 5840 LBS | 6930 LBS | 9900 LBS |
G.W. | 6500 LBS | 7700 LBS | 11000LBS |
