Identificador: 25
Abierta
Descripción

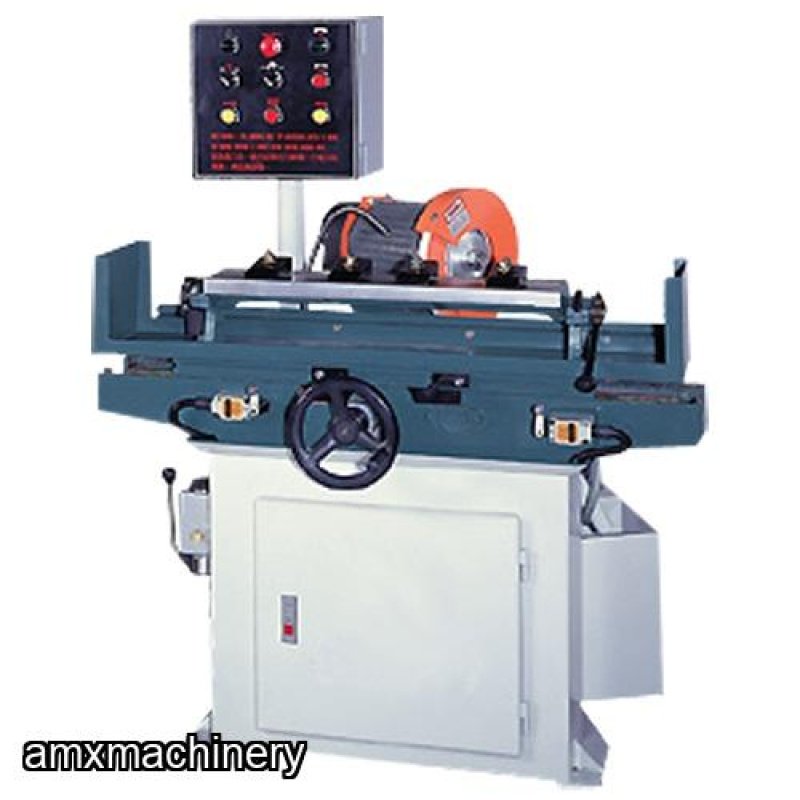

PARTE: 2TA-TG-6000 – AFILADORA DE CUCHILLAS RECTAS - 26" LARGO
Nueva con garantia
Features:
Heavy-duty straight knife grinder, rapid for grinding processing and saving time.
Economical model and efficiency for processing high powerful of any straight knife grinding such as Planner & Jointer Knife, Peeling Knife, Super Surface Knife, and Veneer Cutting Knife.
Automatic grinding table movement forward and backward, label saver.
Employed with straight linear motion guides bearing to ensure longitudinal feed traverse smoothly and accurately.
The knife can be put through a coarse wheel grinding, then a fine wheel grinding for sharpening the knife edge again to obtain the super sharp edge and extend the cutting life of the knife.
Built in coolant pump for faster grinding.
Heavy sheet metal cabinet stand and cast iron body.
High precision and durability.
SPECIFICATIONS | 2TA-TG-3000 | 2TA-TG-5000 | 2TA-TG-6000 |
Grinding Capacity |
|
|
|
Cutter (Dia. x W) | 9" x 8" | N/A | N/A |
Carbide Saw (Dia. x T) | 20" x 3/8" | N/A | N/A |
Carbide Knife (L x W x T) | 12" x 1½" x ¼" | 25" x 3" x 5/8" | 25" x 3" x 5/8" |
Router Bits (Shank) Max. | ½" | N/A | N/A |
Grinding Wheel Size | 6" x 5/8" | 4" x 2" x 5/8" | 10" x 2/3" x 1" |
Grinding Head Travel | 14" | 26" | 26" |
Grinding Wheel Speed | 5000RPM | 1700 RPM | 1700 RPM |
Fine Grinding Wheel Size | N/A | --- | 4" x 2" x 2" |
Grinding Wheel Motor | 1 HP | ½ HP | 1 HP |
Fine Wheel Motor | N/A | --- | --- |
Table Size | 28' L x 8" W | 26" L | 27" L |
Table Travel | 20" x 7" | (Wheel) | 28" |
Table Travel Motor | --- | ¼ HP | ¼ HP |
Coolant Pump Motor | 1/8 HP | N/A | 1/8 HP |
N.W. (LBS) | 748 LBS | 340 LBS | 660 LBS |
G. W. (LBS) | 924 LBS | 430 LBS | 836 LBS |
Pago y Devoluciones
- Forma de pago
- Transferencia/Deposito Bancario
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery
LIJADORA CANTOS
PARTE # 2AM-360 - LIJADORA DE CANTOSMotor: 1.5 HP Direct DrivenVoltage:361: 115 or 208-240/1/50-60362: 208-240/1 or 3/50-60364: 460/3/50-60Variable Speed: AC Inverter 400-1800 rpmArbor: 1” Dia. by 4” TallVertical Adjustment: YESHorizontal Adjustment: YESWheel Tilt: 60o Forward; 40o BackFence: StandardTable Height: 36 inchesTable Size: 36” by 33”Floor Space: 33” by 33”Weight: 375 lbs.
AMXmachinery
CORFAB MIDWEST 1520
PARTE # 11631 - CORFAB MACHINE - MIDWEST AUTOMATION 1520EN PERFECTAS CONDICIONES, RECONSTRUIDA TOTALMENTELISTA PARA OPERARALIMENTACION Y TROMPOS: 3 HP, 230V, 3 FASES, 60 HZUNIDAD HOT MELT 230 V, 1 FASEAIRE 100 PSIVELOCIDAD 26 FT/MINDIMENSIONES TOTALES: 25.5 PIES LARGO X 80" ANCHO X 58" ALTOALTURA TRABAJO 36"PESO ENVIO: 4500 LBSCORE WIDTH: 14" MIN TO 48" MAXBUILD UP STRIP: WIDTH 1/2" TO 1-1/2" - THICKNESS 3/8" TO 3/4"This machine will do the following profiles: 90°, 180°,“D” wrap, self-edge...
AMXmachinery
BRIQUETEADORA PARA MADERA– MOTOR 10 HP – WEIMA
PARTE: 12277 – BRIQUETEADORA PARA MADERA– MOTOR 10 HP –
WEIMA
USADA – BUENAS CONDICIONESHydraulicaly Controled Press ClampStorage
Bin Complete with Bin DischargeMotor
Size 10 HPPerformance
(depends on material) 60- 80KgBriquette
Dia. 50mmHopper
Opening: 55" x 55"The
most economical method for disposing of wood chips, saw dust, and sanding dustElectrical
Cabinet w/ Push-Button Controls
Year:
2005Our shop tested this and it makes briquettes as
de...
AMXmachinery
SIERRA DOBLE
PARTE # 1N-SDO-001 - SIERRA DOBLE - 4 PIESMaquina nueva con garantía.Capacidad de corte largo: Desde 18 pulgadas a 4 piesCapacidad de corte de ancho y alto: Desde 3/4 pulgada a 4 pulgadas Se alimenta por enfrente y se descarga por atrásFuncionamiento:El carro en el centro se mueve de atras para adelante, pasando el material por los 2 discos y cae el material por atras de la maquina.Opcional:- Abertura maxima 6 pies- 2 discos de 16" diametro carburo de tugsteno
