Identificador: 2662
Abierta

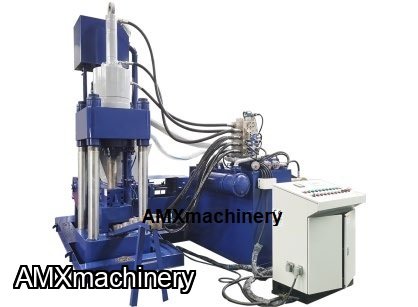

PARTE: 3CH-XBJ-630 - BRIQUETEADORA DE METAL – VERTICAL – HIDRAULICA – 1500 KG/HR
AMXmachinery
Descripción
PARTE: 3CH-XBJ-630 - BRIQUETEADORA DE METAL – VERTICAL – HIDRAULICA – 1500 KG/HR
Nueva con garantía
Alimentación automática

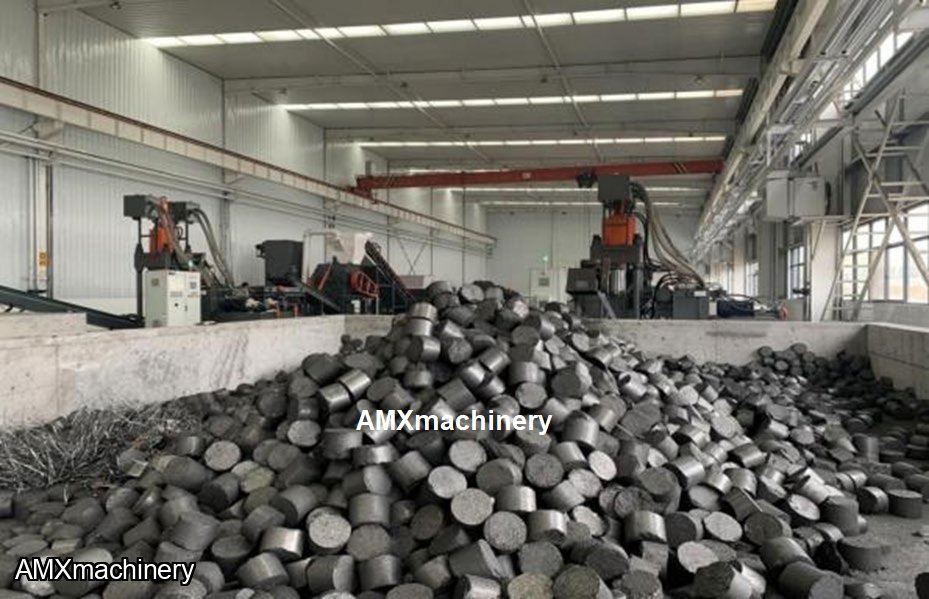

Las briqueteadoras de metal pueden compactar diferentes clases de materiales como hierro fundido, aluminio, cobre, magnesio, titanio, molibdeno, metal, etc., en bloques de alta densidad sin aditivos.
Specifications:
Main cylinder: Nominal force 630 kN
Feed cylinder: Nominal force 235 kN
Block cylinder: Nominal force 785 kN
Briquette size: 160 mm
Briquette density: Steel chips: 5000kg/m3 approximate
Productivity: 3 block/min approximate
Output: Steele chips: 1500 kg/h approximate
Operation: PLC automatic control
Equipment cooling method: industrial refrigeration machine
Total power: 70 kW
System working pressure: 20 – 22 Mpa
Power specification: 380V, AC, 50 Hz, 3 Phase
Motor: 30 kW, 1460 rpm
Pump: nominal pressure 31.5 MPa, displacement 100 ml/r
Oil tank volume: 3000 Lt
Machine weight: 15,000 kg
Contactenos para mas informacion,
Pago y Devoluciones
- Forma de pago
- Transferencia/Deposito Bancario
