PARTE: 3NN-VENEERSOLIDM1 - PEGADORA DE CANTO LONGITUDINAL PARA CHAPA

PARTE: 3NN-VENEERSOLIDM1 - PEGADORA DE CANTO LONGITUDINAL PARA CHAPA

AMXmachinery

Contact Seller
Description

PARTE: 3NN-VENEERSOLIDM1 - PEGADORA DE CANTO LONGITUDINAL PARA CHAPA

Chapa Pre-Engomada requerida



Machine Specification

Veneer Strip Thickness (depending on veneer condition):approx. 0.35 ~ 1.5 mm

(solutions of splicing veneers with thickness of 1.5 ~ 3.5 mm offered)

Veneer Strip Length:min. 200 mm

Veneer Strip Width:min. 45 mm

Production Speed:up to 30 m/min.

Electric Power:approx. 5.9 kw

Compressed Air:5 bar

Heating Temperature:100 ~ 220 °C

Heating Zone:800 mm

Dimensions (L x W x H):1500 x 1500 x 1500 mm

Net Weight:approx. 950 kg

Color:RAL 8019 / RAL 9003



The butt-jointed longitudinal veneer splicers, different from the traditional paper taping or zig-zag thread stitchers, are ideal for processing high quality glue-spliced veneer faces.

By longitudinal veneer splicers, the well-cut and pre-glued veneer strips are fed into the machine manually for a perfect joint, especially suitable for splicing short veneers. This model which is a perfect entry level splicer for “custom shops” with lighter application requirements also meets all the splicing performance

features of veneer splicing machines. This machine is also capable of splicing components for Diamond Match applications. Combined with Double Knife Veneer Guillotines (CutMate D series) and Double Sided Veneer Glue Applicator (GlueMate 700), a perfect veneer cutting, gluing and splicing work can be achieved.



Features

- with high cost-performance value

- complied with European safety standards

- rigid welded machine body for stable splicing work

- the bottom transporting chains guided by wear-resistant rails

- special-designed pressurized and heating mechanical structures

- pre-glued and dried veneers required prior to feeding into the machine for jointing

- splicing up to 3.5 mm pre-glued veneers by adjusting production speed and temperature

- the top head unit mounted by means of pneumatic cylinders and guided by two linear guides

- the latest designed transporting chains of engineering plastics for reducing the heat on veneers

- reflective photocell sensor in the infeed section to ensure a perfect alignment of the jointed veneers

- both top and bottom central heating strips coated with chromium material for easy cleaning and maintenance

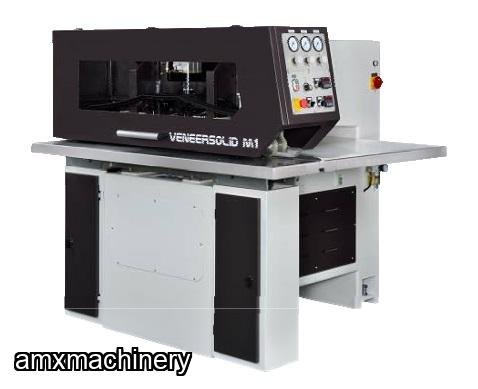

 VeneerSolid M1

- GERMANY FESTO pneumatic system, the well-known and the top brand for easy parts purchase and after-sales service

- narrow heating zone with individual temperature controllers for minimizing the heat to avoid deforming splicing veneers

- the top and bottom transporting chains driven by one single motor for synchronization with one inverter controlling the running speed

- SSR (solid state relay) heating controller, different from the heater with traditional magnetic contactor, for more accurate temperature control and longer life without sparks of contacts

- thermosetting glue used for accurately and firmly bonding veneer edges with no visible joint lines (especially suitable to splice veneers for high-level furniture and decorative plywood)
