Identificador: 2323
Abierta

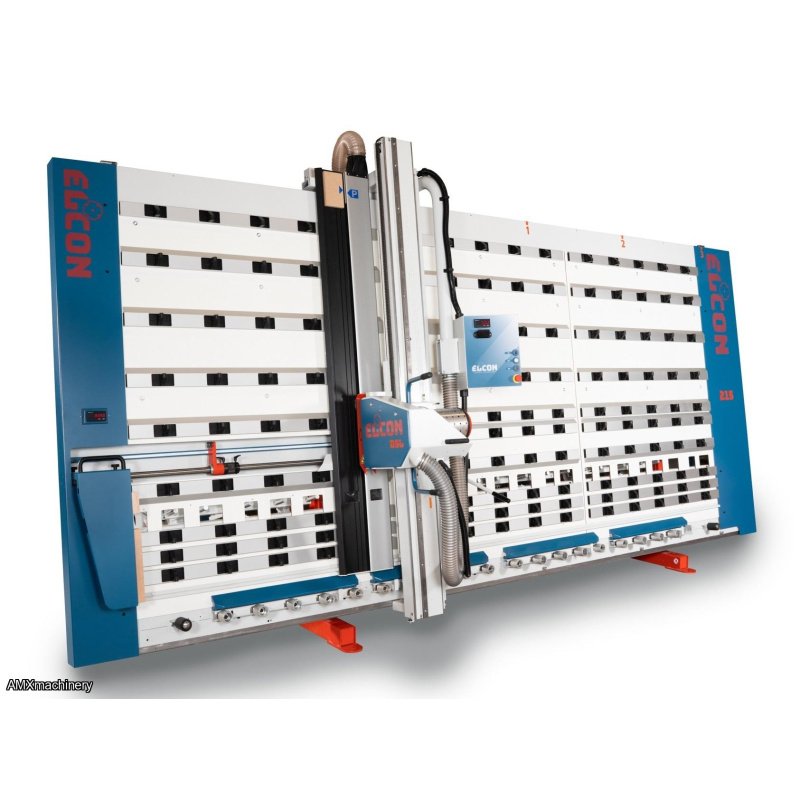

PARTE: 4EL-DS - SIERRAS ESCUADRADORAS VERTICALES - ELCON - SERIE DS
AMXmachinery
Descripción
PARTE: 4EL-DS - SIERRAS ESCUADRADORAS VERTICALES - ELCON - SERIE DS
SERIE DS-155
SERIE DS-185
SERIE DS-215
SERIE DSL-155
SERIE DSL-185
SERIE DSL-215
SERIE DS1/2L
SERIE DS1/2L
SERIE DS1/2L
|
Model & Dimensions (mm) |
155 |
185 |
215 |
|
Maximum cutting length |
3300 |
3300 |
4300 |
|
Maximum cutting height - Horizontal |
1505 |
1805 |
2105 |
|
Maximum cutting height - Vertical |
1550 |
1850 |
2150 |
Description:
The DS models are provided with all basic functions for professional use, making it also suitable for plastics and aluminium. A choice of accessories is optional like scoring or a v-grooving attachment.
Equipped with:
-1 meter point
4,0kW motor
Options:
Variable rotation speed for 4.0kW motor
Automatic shifting back frame (pneumatic)
Pneumatic mid fence
Pneumatic lifting transportrollers
Aluminium bottom rollers incl clamp
Pneumatic panel clamp
Pneumatic panel clamp (extra)
Extension to measuring stop
Cutting length 4.300 mm (type 185)
Cutting length 5.300 mm (type 215)
Digital read out horizontal
Digital read out vertical
Programmable vertical cutting
V-grooving set 90 degrees
Lubrication for non-ferro materials
Extra dust extraction at the right hand side in side panel
Pago y Devoluciones
- Forma de pago
- Visa/Mastercard/American Express, Transferencia/Deposito Bancario
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery
CEPILLO 2 CARAS - CAPACIDAD 24”
PARTE:
12334 - CEPILLO 2 CARAS - CAPACIDAD 24”
USADO - BUENAS CONDICIONES
Standard Specifications:
- 24" x 6" work
piece capacity
- 12" min. length,
(6" min. butted) x 1/4" min. thickness
- 30 HP upper cutter head
motor, 20 HP lower head motor
- Whisper helical carbide
cutterhead, (1/2" max. depth of cut)
- 1 HP platen/thickness
elevator motor
- 5 HP variable speed feed
motor, (25 to 100 ft/min. feed speed)
- 2" concentric
chipbreakers with pressure rollers
...
AMXmachinery
ALIMENTADOR AUTOMATICO – PARA REASERRADORA - 1/2 HP
PARTE: 2EX-XF-19R – ALIMENTADOR AUTOMATICO – PARA REASERRADORA
- 1/2 HP
Nuevo con garantía
PRESION CON RESORTES
PARA SIERRAS CINTAS DE 24” O MAS GRANDES
1/2 HP – 208-240V – 1 FASE
1/2 HP – 208-240V - 3 FASES
10 VELOCIDADES CAMBIANDO COMBINACION ENGRANES
VELOCIDAD MIN: 5 PIES/MIN
VELOCIDAD MAX: 60 PIES/MIN
2 RUEDAS DE 6-7/8” X 1-9/16”
GUARDA DE RODILLOS 15-3/4” X 7-7/8”
BRAZO GIRA 30 GRADOS
ANCHO MAXIMO 8-1/4”
PESO 95 KG
AMXmachinery
2AA-H550EII – SIERRA CINTA – CAPACIDAD 21.6”
PARTE: 2AA-H550EII – SIERRA CINTA –
CAPACIDAD 21.6” – AMADA
NUEVA CON GARANTIA
Machine
Specifications
Cutting
Capacity Round (Diameter) 7.87"-18.90"
Rectangle
(W x H) 21.65" x 18.90"
Work
Load Capacity 4,409 lbs.
Saw
Blade Dimensions (L x T x W) 16' x 0.050" x 1.5"
Blade
Speed Inverter Blade Speed Control
Saw
Blade Motor 7.5 HP
Hydraulic
Pump Motor 2 HP
Cutting
Fluid Pump Motor 1/2 HP
Voltage
Required*
AC220V±10%,
3 PH, 60 Hz
*All
Oth...
AMXmachinery
LAMINATE SLITTER
PARTE # 2EV-5031 - LAMINATE SLITTER - EVANS 5031Laminate Slitter, 31" capacity- 110 Volt, 1 Ph., 1/3 HPStandard Features:- 31" capacity- 70 feet per minute- 3-blade system for inlay quality cuts- Self-aligning fence- 36” Working Height- Crated weight 865 LBS. Shipping dimensions 68” long X 54” wide X 49” highOptional:- 220 Volt 50 Hz (export)
