Descripción

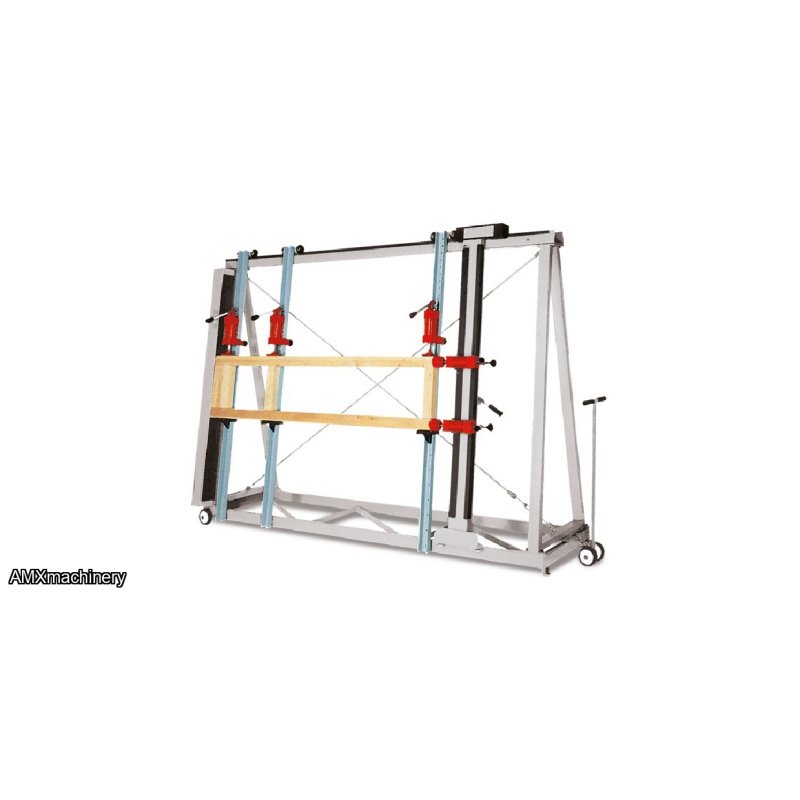

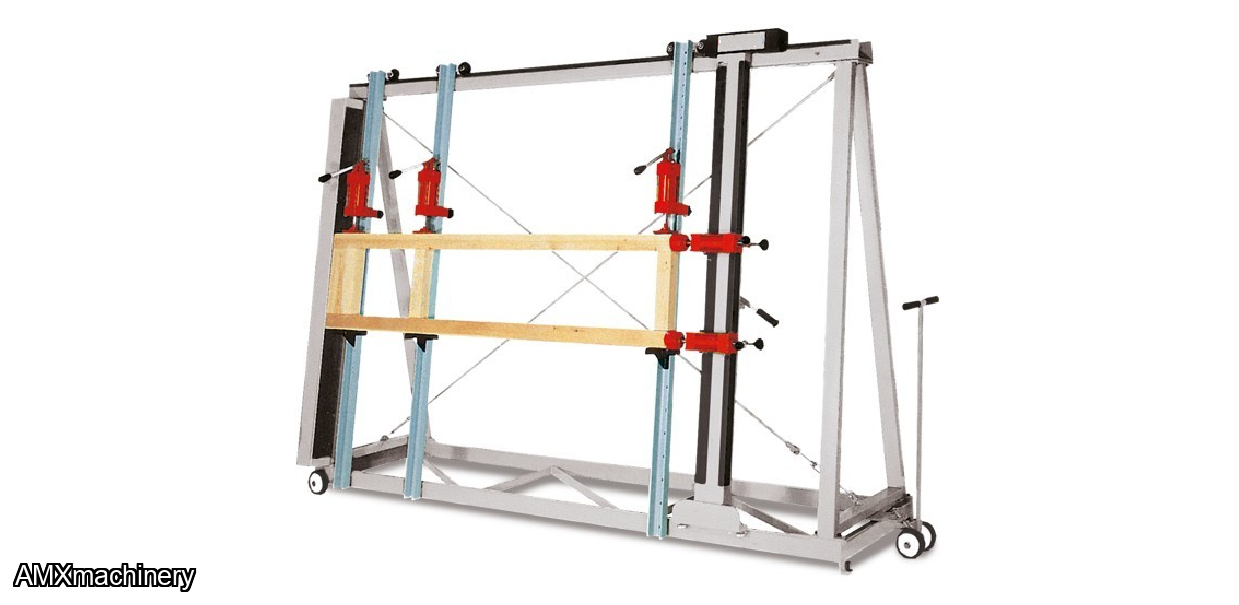

PARTE: 4ST-STH/ORM - PRENSA PARA PUERTAS Y TABLEROS
HYDRAULIC PRESS FOR DOORS AND WINDOWS
CLASSICS FOR GLUING
Is a hydraulic press for gluing door and window frames.
Its solid frame on wheels, two of which are steerable, allows front loading, reducing and optimising space in the workshop.
The working unit consists of manually operated vertical and horizontal hydraulic cylinders, which are practical and functional
and can be positioned according to the size of the frame to be glued.
Technical specifications
Vertical beam with cylinder
- nr. 3 sliding (manual hydraulic)
Horizontal cylinders
- nr. 2 sliding (manual hydraulic)
Cylinder thrust
- 1500 kg
Extra working length and height
- option on demand
