ID: 1267
Open
Description

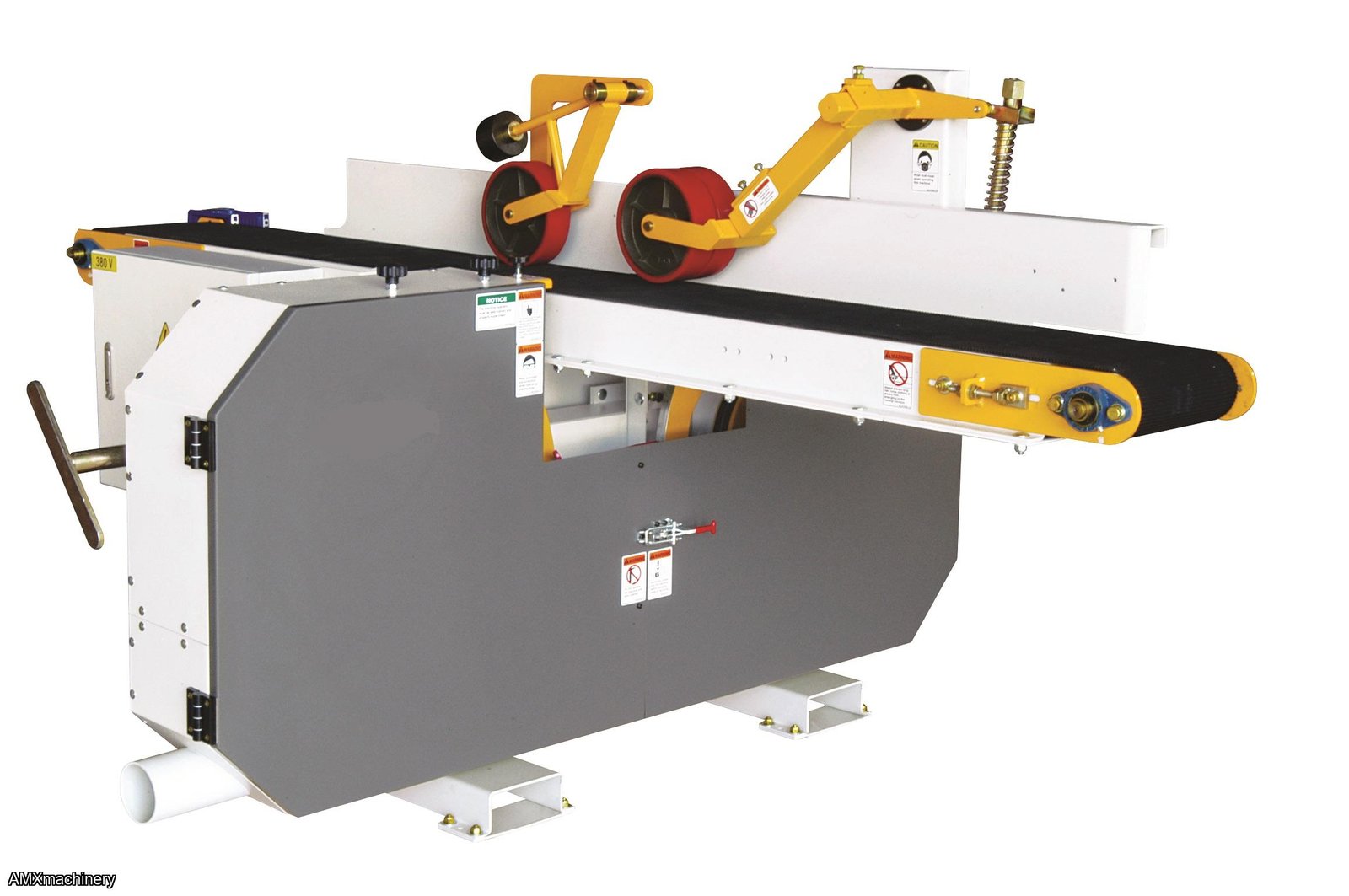

PARTE: 3HP-HP-12E - REASERRADORA HORIZONTAL – 1 SIERRA BANDA – 300 MM ANCHO X 250 MM ALTO
Nueva con garantía
Specifications:
1.Max. workpiece size: 300mm(W) x 250mm(H)
2.Distance from blade to conveyor Table: 4-125mm
3.Conveyor belt size: 285mm x 5470mm
4.Saw wheels dimension: Φ28" x 1"(Thickness)
5.Feed speed: 5-25 M/min
6.Saw blade size: 168" x 1"
7.Saw wheel motor: 20HP
8.Conveyor motor: 2HP motor with 30:1 gear box and 2HP inverter
9.Inverter controls conveyor feed speed
10.Dust hood diameter: ψ4" x4
11.Net weight: 901 KG
12.Packing dimensions with pallet:
- Frame: 2170 x 1100 x 1120mm / 901 KGS
- Conveyor: 2870 x 620 x 750mm / 207 KGS
13._______Volt, _______Hertz
Payments & Returns
- Payment Methods
- Visa/Mastercard/American Express
Post Message
Sign in to ask the seller a question.
AMXmachinery
PEGADORA DE SABANAS - FISHER RÜCKLE
PARTE
# 12161 – PEGADORA DE SABANAS - FISHER RÜCKLE
USADA – MUY BUENAS CONDICIONES
Year of manufacture 1993
Opening width mm 2.850
Veneer thickness min mm 0,4
Veneer thickness max mm 2
Strip width min mm 70
Strip width max mm 430
Width of lifting table mm 430
Feedrate max m/min 24
Gluing aggregate Yes
Cross splicing machine Yes
Lift table Yes
Trimming unit Yes
Joint Only edge gluing
Operating status dismantled/ stored
AMXmachinery
PARTE: 1SL-DC-DC2045 - COLECTOR DE POLVOS 5 HP
PARTE: 1SL-DC-DC2045 - COLECTOR DE POLVOS 5 HPNUEVO CON GARANTIAMOTOR: 5 HP, 220V, 3 FASES, 60 HZCAPACIDAD DE SUCCION: 2,500 CFMNUMERO DE BOLSAS Y FILTROS: 2PESO: 80 KGSTIPO DE EMPAQUE: 1 CAJA
AMXmachinery
PARTE: 12387 - COLECTOR DE ASERRIN - DONALDSON TORIT
PARTE:
12387 - COLECTOR DE ASERRIN - DONALDSON TORIT
USADO - BUENAS CONDICIONESThe dust collector Filter Area
has an estimated up to 8,128 sq.ft. of filtration surface area with (32)
cartridge filters, estimated 8,100-20,300 cfm, 16 valves, a square design with
a rotary airlock discharge. Disassembled parts overall sizes: Dust
Collector-Overall Size 88"W (with fittings) x 84"D x 118"H (with
fittings), Legs Overall Size 86"W x 185"H, Manifold Overall Size
80"W x 19"D x 35"H, Pyrami...
-500x500.jpg)
AMXmachinery
LIJADORA DE CEPILLOS QUICKWOOD
PARTE: 11799 – LIJADORA DE CEPILLOS – QUICKWOODGOOD CONDITIONS- MODEL: RO-1100- (460/60/3 electrics)- 44" wide x 4" thick max. work-piece dimensions- (2) counter-rotating "carrousels" with (4) rotating sanding heads each- (8) rotating "hex" spindles can be equipped with a variety of materials- (3 to 16) RPM of carrousel and (300 to 1,200) RPM variable spindles- Electronic digital speed readouts- (33) 5" diameter "quick discs" per spindle, (264) total- 6 HP main motors, 1.5 HP rotation motors...
