ID: 1269 Open

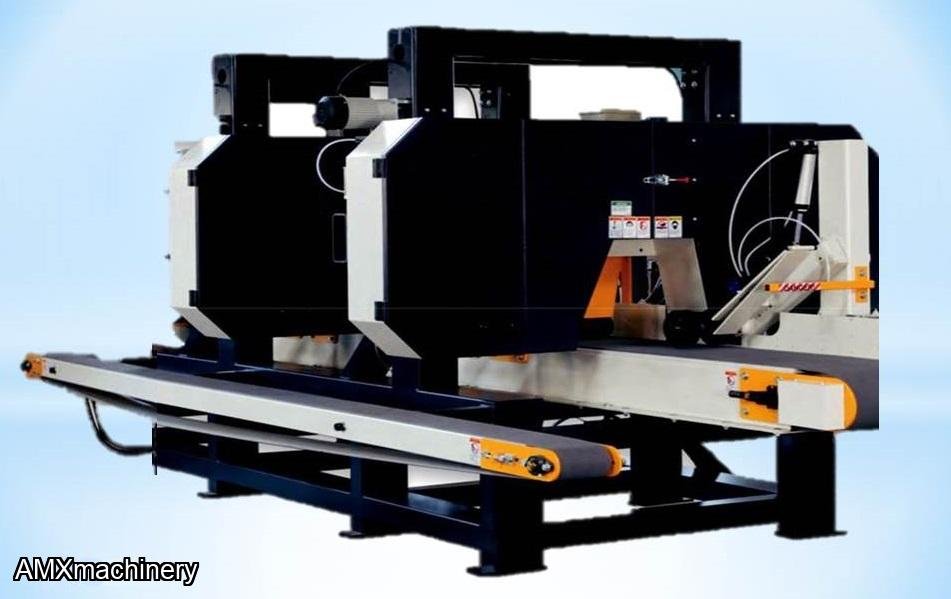

REASERRADORA HORIZONTAL – 2 SIERRA BANDA – 400 MM ANCHO X 250 MM ALTO

AMXmachinery

Contact Seller

Description

PARTE: 3HP-HP-400-2 - REASERRADORA HORIZONTAL – 2 SIERRA BANDA – 400 MM ANCHO X 250 MM ALTO

Nueva con garantía – Uso Rudo

Specifications:

1.With Digital Readout

2.Max. Workpiece Size: 400mm(W) x 250mm(H)

3.Conveyor Belt Size: 385mm(W) x 8130mm(L)

4.Saw Wheel Dimension: Φ28" x 2"(Thickness)

5.Saw Blade Size: 180"(L) x 2"(W)

6.Dust Hood Diameter: 4" x4

7.In-feed Speed: 4-20M/min

8.Cutting Size: 4-250mm(T)

9.Controlling Blade Tension: Air/Hydraulic Compensation System

10.Main Motor: 30HP x2

11.Hydraulic Motor: 3HP

12.Elevation Motor: 1/4HP 6P x2

13.Machine Dimensions/Weight: 3610 x 2130 x 1900mm /2700kgs

Packing Dimensions/Weight: 3710 x 2230 x 2100mm /3040kgs

14.Mist Coolant System

15.Air Cylinder Hold Down Pressure Roller

16.Min. Length of Working Piece: 600mm

17.With Inverter Motor: 30HP x2

18.Rubber Pressure Roller

19.With Return Conveyor

20.Saw kerf: 1.35mm

20._______Volt, _______Hertz
