Description

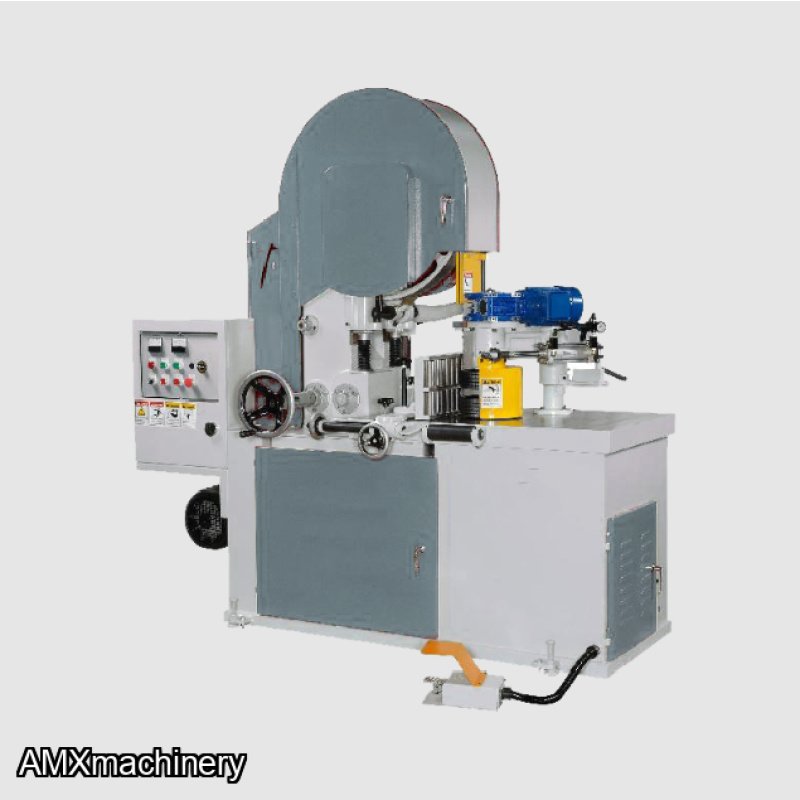

PARTE: 2LO-BS-800PF - REASERRADORA VERTICAL - 32"
- The side guide is micro metrically adjustable providing convenient adjustment for narrow blades.
- The saw wheels are laminated with rubber for accurate blade tracking and slippage prevention.
- The table is made of cast iron and the surface is precision ground.
- The table can tilt to a maximum of 45 degrees front downward for bevel cuts.
- Blade tension can be conveniently adjusted by means of a band wheel. A tension scale allows the operator to correctly adjust the tension for different blade widths.
- The cast iron top and bottom saw wheels are precision machined and dynamically balanced for smooth running.
- The see through guard provides operator safety and protection.
- The foot brake permits the quick shut down of machine operations.
- The heavy gauge steel frame ensures stable and vibration-free cutting.
- 4" diameter exhaust chute supplied as standard.
- The foot brake permits the quick shut down of machine operation.
- A foot pedal allows feeder fast swing away.
- An infinitely variable feeder speed for cutting various type of wood material, both soft and hard.
- A centralized control panel located at the normal operating position for convenient machine control.
- An amp meter indicates the percentage of motor load.
- The heavy gauge steel frame ensures maximum stability.
- The big table 55” x 33-1/2", provides solid support for large sawing operations
Specification:
| SPECIFICATIONS | BS-700PF | BS-800PF | BS-900PF |
| Saw Wheel Diameter | 27-1/2" | 31-1/2" | 35-1/2" |
| Max. Distance :Fence to Feed Wheel | 7-1/4" | 7-3/4" | 8-5/8" |
| Max. Distance :Blade to Feed Wheel | 7-1/2" | 7-1/2" | 7-1/2" |
| Max. Cutting Height | 7-3/4" | 10" | 11-7/8" |
| Length of Blade | 190" | 209" | 227" |
| Max Blade Width | 4" | 4" | 4" |
| Table Height from Floor | 32-7/8" | 36-3/4" | 38-3/8" |
| Blade Linear Speed | 4944 FPM | 4944 FPM | 7500 FPM |
| Feed Feeder Speed (Variable) | 26 ~ 105 FPM | 26 ~ 105 FPM | 26 ~ 105 FPM |
| Saw Wheel Drive Motor | 10 HP | 15 HP | 20 HP |
| Feed Drive Motor | ½ HP | ½ HP | ½ HP |
| Net Weight | 2460 LBS | 2960 LBS | 3750 LBS |
| Machine Size (L x W x H) | 89"x43"x88" | 94"x45"x98" | 102"x51"x100" |
