Descripción

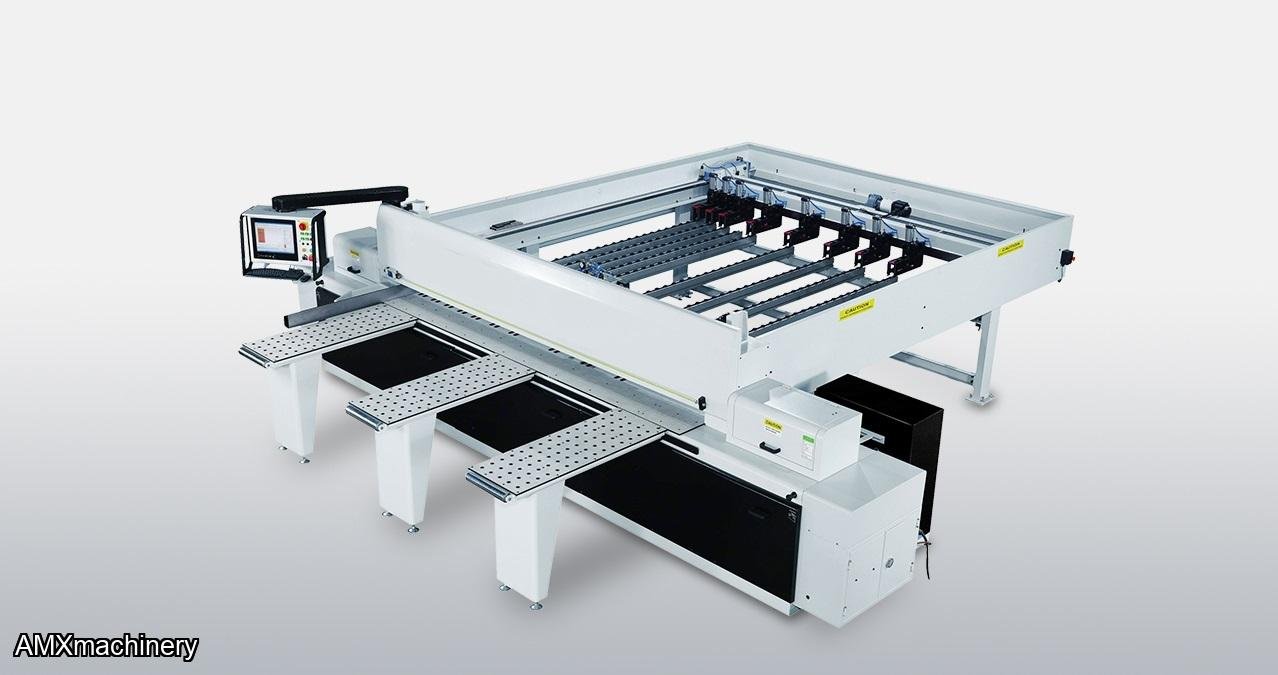

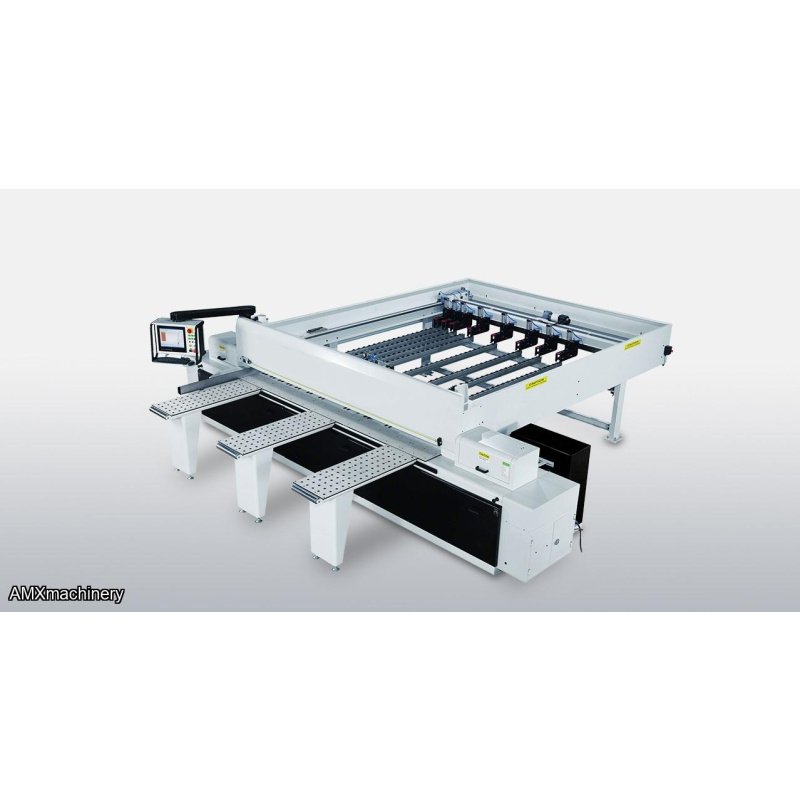

PARTE: 2CK-TPS-SH - SIERRA DE PANELES AUTOMATICA
Production panel sizing solution for the small to mid-sized manufacturer. The industrial machine design combined with user friendly PC control interface ensure accurately dimensions sheet components with a chip free finish. Available in 8’, 10’, 12’ with front loading. The powerful 18HP saw motor and carriage runs on two round hardened guide rails on (8) copper wheels. The saw carriage cutting speed is variably adjusted according to your cutting height requirement. A double side aligner ensures panels are squarely cut during crosscutting operations. The onboard PC control allows the operator to program right at the machine or import a cutting list which can be run though the standard optimization software.
- Available in 8’, 10’, or 12’ models
- Front loading operation
- User friendly PC control on screen pattern editing and built-in optimization software
- Powerful 18HP saw motor with variable cutting speed and quick return speed
- Saw carriage runs on hardened round guides and (8) copper wheels
- Programmable pusher beam with reliable rack and pinion adjustment
- Equipped with 7/8/9 pneumatic grippers
- Double side aligner for accurate crosscutting operations
- 4” maximum cutting height for multiple sheet operation
- (3) or (4) air flotation tables to assist in loading of panels
|
MODEL |
TPS-10SH |
TPS-12SH |
TPS-8SH |
|||
|
CAPACITY
|
Max. cutting length |
2600 |
3200 |
3800 mm |
||
|
Max. cutting width (depth) |
2600mm / 3200 mm / 3800mm |
|||||
|
Max. cutting height |
100 mm |
|||||
|
Max. gripper opening |
110 mm |
|||||
|
Max. saw blade projection |
105 mm |
|||||
|
MAIN SAWBLADE
|
Main sawblade motor |
18HP (11.2KW) |
||||
|
Main sawblade diameter |
Ø405 mm |
|||||
|
Spindle diameter |
Ø1” (25.4mm) |
|||||
|
Main sawblade speed |
4,400 R.P.M. |
|||||
|
SCORING SAWBLADE
|
Scoring sawblade diameter |
Ø180 mm |
||||
|
Spindle diameter |
Ø1” (25.4mm) |
|||||
|
Scoring sawblade speed |
7,000 R.P.M. |
|||||
|
SAW CARRIAGE
|
Saw carriage drive motor |
2HP with inverter (1.5KW) |
||||
|
Forward Speed (adjustable) |
1~45 M/min |
|||||
|
Return Speed |
70 M/min |
|||||
|
PUSHER
|
Pusher system drive motor |
1KW |
||||
|
Pusher system pull speed |
1~70 M/min |
|||||
|
Pusher system push speed |
1~60 M/min |
|||||
|
OTHERS
|
High pressure blower motor |
3HP (2.2KW) |
||||
|
Side aligner motor |
90W |
|||||
|
Working air pressure |
5~6 kg/cm2 |
|||||
|
Table height from floor |
850 mm |
|||||
|
Grippers |
7 units |
8 units |
9 units |
|||
|
Floating table |
3 units |
3 units |
4 units |
|||
|
Voltage |
220V / 440V / 575V |
|||||
|
Hertz |
60HZ |
|||||
|
Net weight |
4200kg |
4500 kg |
4700 kg |
|||
|
Gross weight |
4700kg |
5100 kg |
5300 kg |
|||
