ID: 327
Open
Description

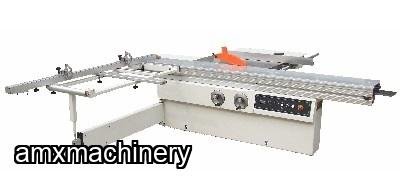

PARTE # 2TA-TS-P3200MA - SIERRA ESCUADRADORA - 3200 MM
NUEVA CON GARANTIA
Heavy duty construction provides vibration free operation. Easy to set up and adjust.
Manual raise, lower and tilt of main blade and scoring saw.
Scoring unit provides clean, accurate, chip free cutting, ready for edge banding.
Sealed main shaft bearings (lubricated for life) with vibration dampening system.
Highly accurate, freely moving sliding table with wear resistant guide rails and rollers.
Specially designed roller carriage, utilizing aluminum pro files for lighter weight.
Stable, torsion free cross slides with low resistance swinging support arm.
Extra attention paid to the sliding table mechanism, ensuring absolute rigidity of the entire sliding assembly.
Base welded from cold, rolled heavy gauge steel plate, providing a rugged assembly and long term accuracy of the entire machine.
Industrial grade, high power rated motor for long life and heavy duty performance.
Telescoping cross cut fence, extendable to the full 63” stroke of the sliding table. Fence can be utilized for up to 45 degree miter cutting.
All painted surfaces with special heavy grade priming and finish for long term protection.
All none painted aluminum surfaces, anodized
SPECIFICATIONS | LB-TS-P1600MA | LB-TS-P2500MA | LB-TS-P3200MA |
Sliding Carriage Dimensions | 63" x 14" | 98" x 13" | 126" x 13" |
Max. Cutting Length | 63" | 98" | 122" |
Ripping Capacity | 49" | 49" | 49" |
Saw Blade Inclination | 90° ~ 45° | 90° ~ 45° | 90° ~ 45° |
Maximum Depth of Cut at 90° | 3.3" | 3.3" | 3.3" |
Maximum Depth of Cut at 45° | 2.6" | 2.6" | 2.6" |
Main Saw Maximum Blade Dia. | 14" | 14" | 14" |
Saw Blade Shaft Dia. | 30 MM | 31 MM | 32 MM |
Blade Rotation Speed (RPM) | 2800/4000/5600 | 2800/4000/5600 | 2800/4000/5600 |
Saw Blade Motor Power | 5 HP | 5 HP | 7.5 HP |
Scoring Saw Blade Dia. | 125 MM | 125 MM | 125 MM |
Saw Blade Shaft Dia. | 20 MM | 20 MM | 20 MM |
Blade Rotation Speed (RPM) | 8000 | 8000 | 8000 |
Scoring Motor Power | 1 HP | 1 HP | 1 HP |
Saw Up & Down, Tilting Motor | MANUAL | MANUAL | MANUAL |
Power | 220V 3PH | 220V 3PH | 220V 3PH |
N.W. | 960 LBS | 1650 LBS | 1800 LBS |
