Descripción

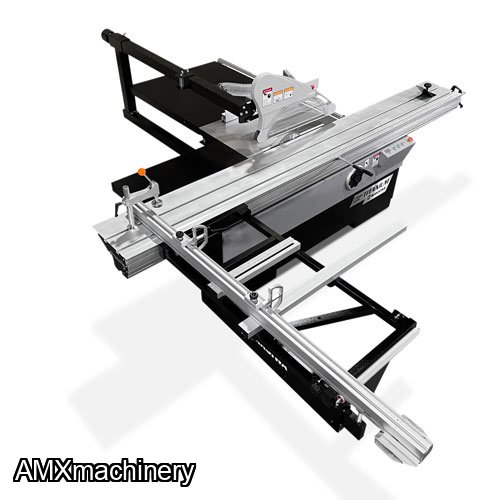

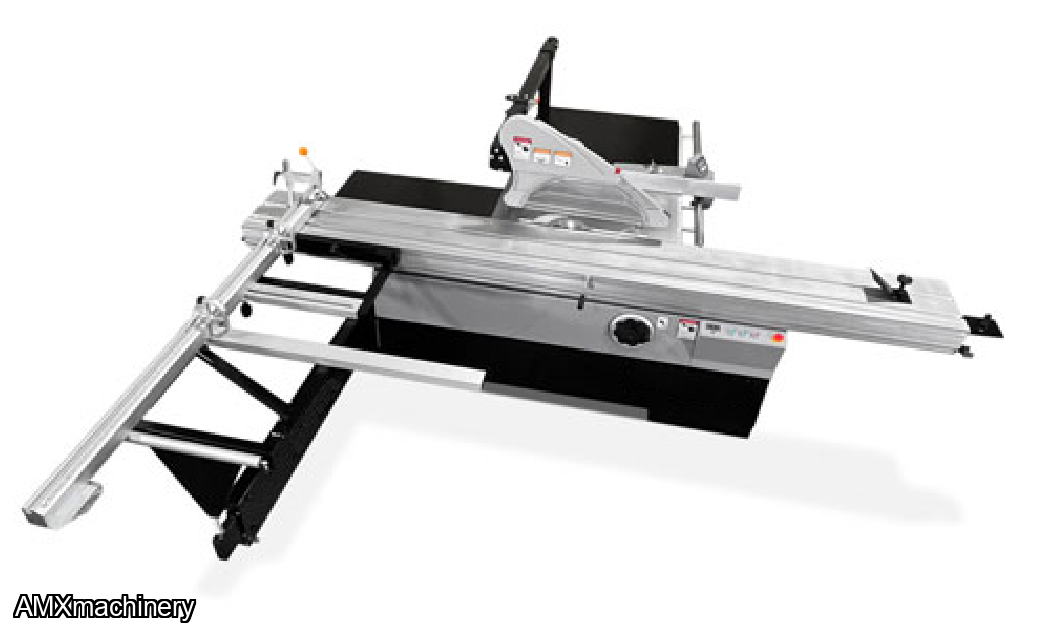

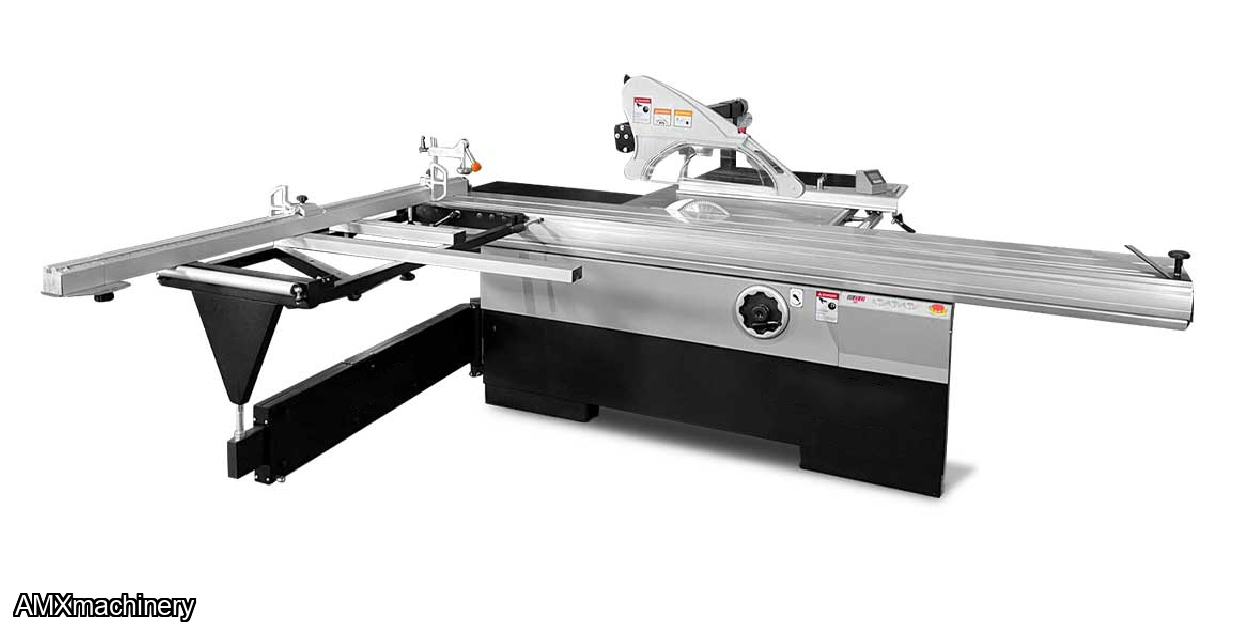

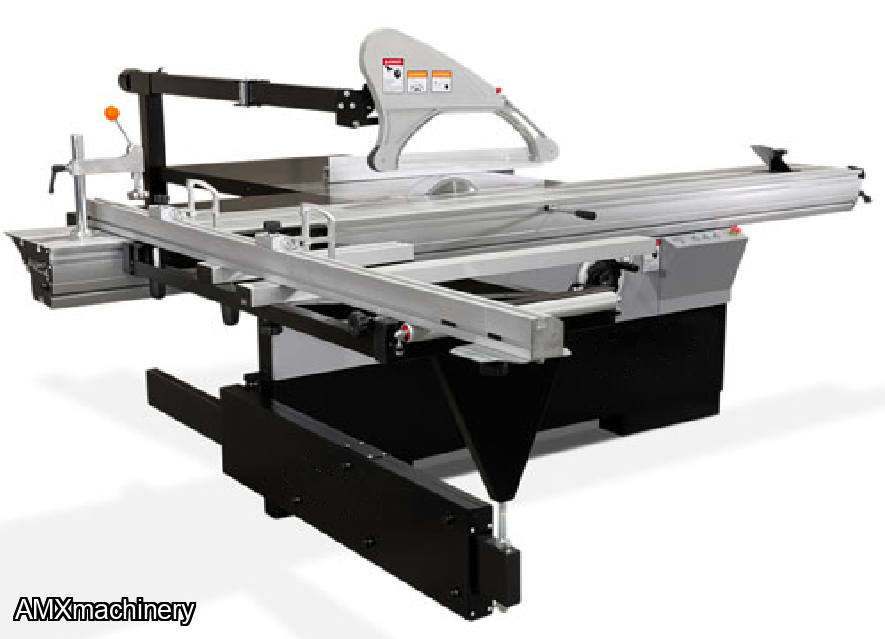

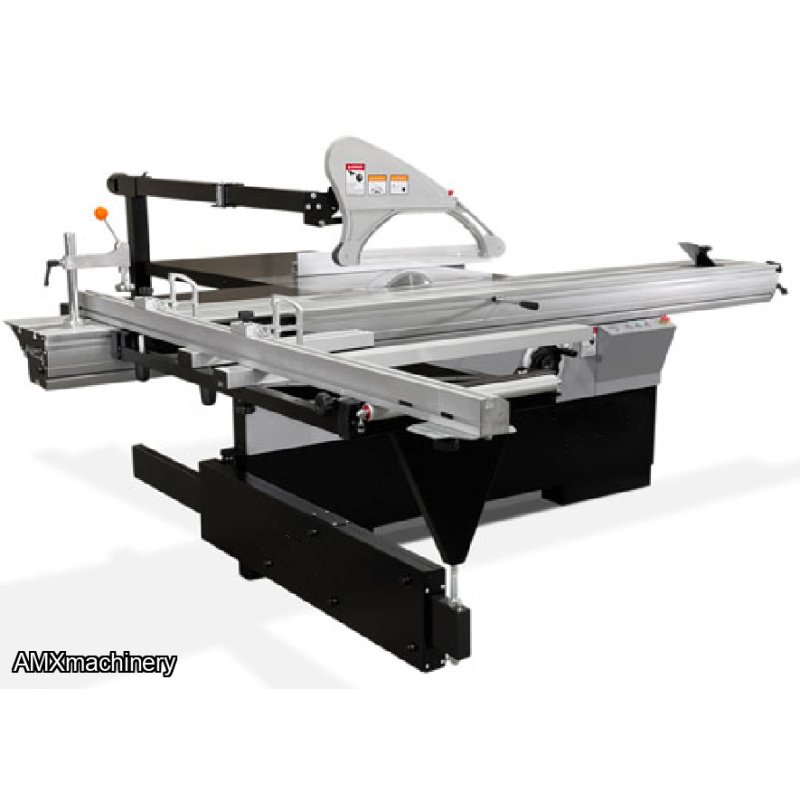

PARTE: 2MK-BMT.3200.IR - SIERRA ESCUADRADORA - 5 HP
Engineered by our expert team, this advanced panel saw is crafted with superior components and materials, ensuring you receive the best in performance and reliability.

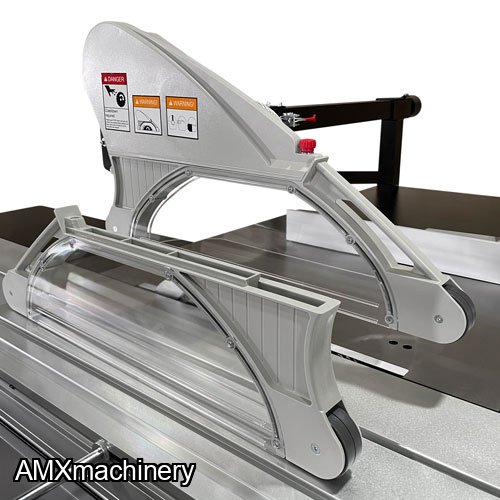

Featuring an innovative table system, delivers unmatched smoothness and precision, making it easy to handle even heavy loads with effortless movement. Additionally, it comes standard with a dual overhead saw guard and a 4” dust port, promoting a cleaner workspace while enhancing safety during operation. Elevate your woodworking projects with the precision and power.
| SPECIFICATIONS | SAE | METRIC |
|---|---|---|
| Main Motor | 5 HP / 4000 RPM 3.7 kw | 5 HP / 4000 RPM 3.7 kw |
| Max Blade Diameter | 12" | 305 MM |
| Main Blade Arbor | 1 3/16 " | 30 MM |
| Main Blade Max cutting Height at 90° | 3 1/2" | 90 MM |
| Main Blade Cutting Height at 45° | 2 7/16" | 63 MM |
| Scoring Motor | 3/4 HP / 8000 RPM .55 kw | 3/4 HP / 8000 RPM .55 kw |
| Scoring Blade | 4 3/4" | 120 MM |
| Scoring Blade Arbor | 25/32" | 20 MM |
| Scoring Blade Type | Conical | Conical |
| Max Ripping Capacity | 51" | 1300 MM |
| Crosscut Capacity | 126 " | 3200 MM |
| Crosscut Fence Capacity Closed/Open | 78"/120" | 1981/ 3048 MM |
| Machine Working Dimensions (LxWxH) | 132" x 137" x 65" | 3352 x 3479 x 1651 MM |
| Cast Iron Table Dimension | 35 " x 21 " | 896 x 548 |
| Sliding Table Dimension | 126" x 14" | 3200 x 358 MM |

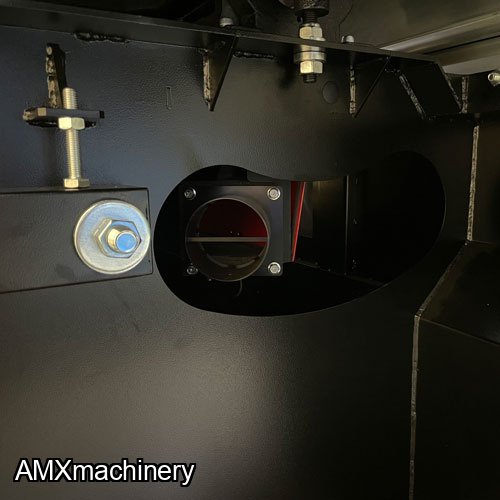

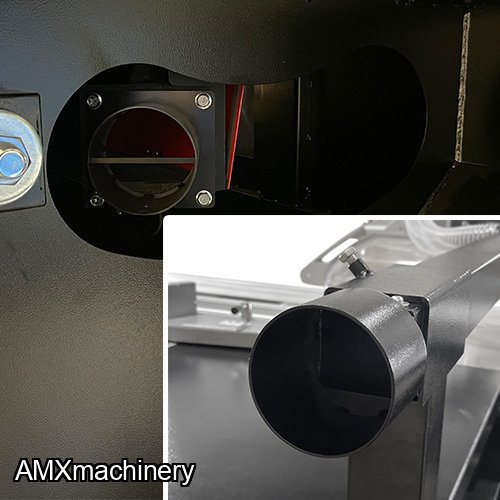

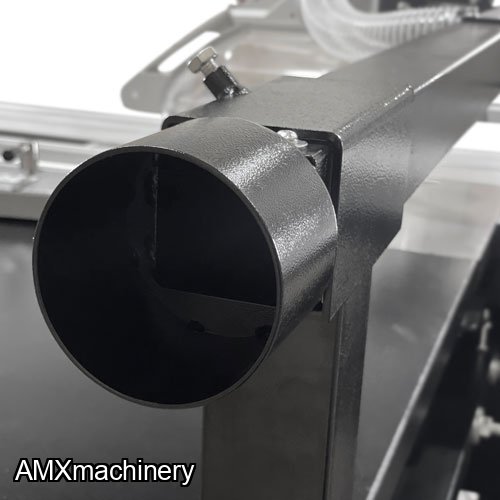

| Dust Collection Port (2) | 4" | 100 MM |
| Minimum Dust Collection Requirements | 1000 CFM | 28M/MIN |
| Electrical Specs | 1 Phase 220V 30 Amps 60 Hz | 1 Phase 220V 30 Amps 60 Hz |
| Main Body Crate Dimensions (LxWxH) | 83" x 45" x 45" | 2108 x 1143 x 1143 MM |
| Main Body Crate Weight | 1254 Lbs | 569 Kgs |
| Sliding Table Crate Dimensions (LxWxH) | 133" x 18" x 15" | 3378 x 457 x 381 MM |
| Sliding Table Crate Weight | 274 Lbs | 124 Kgs |
