Identificador: 2862 Abierta

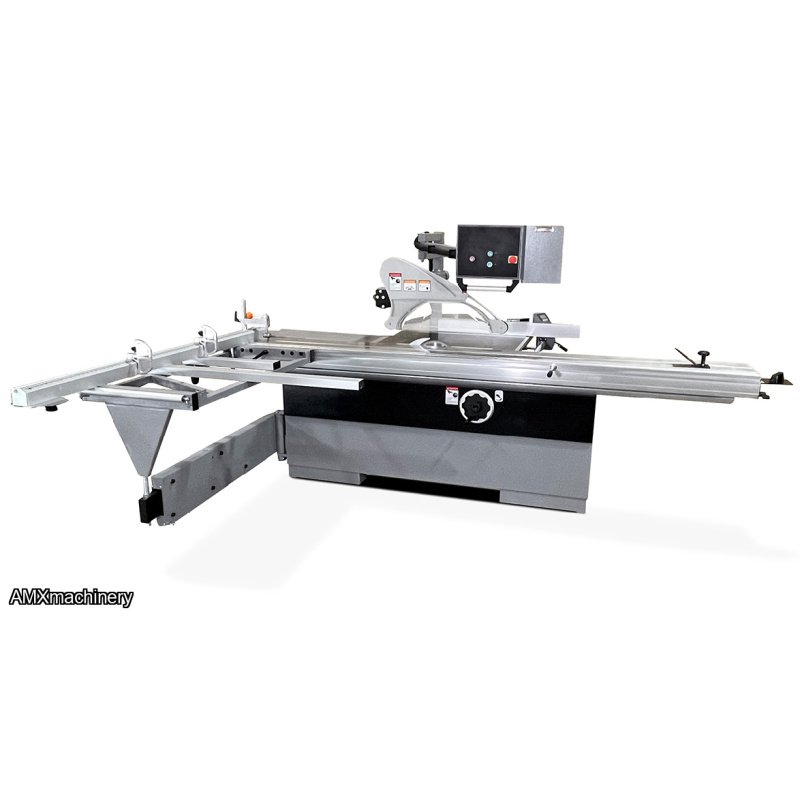

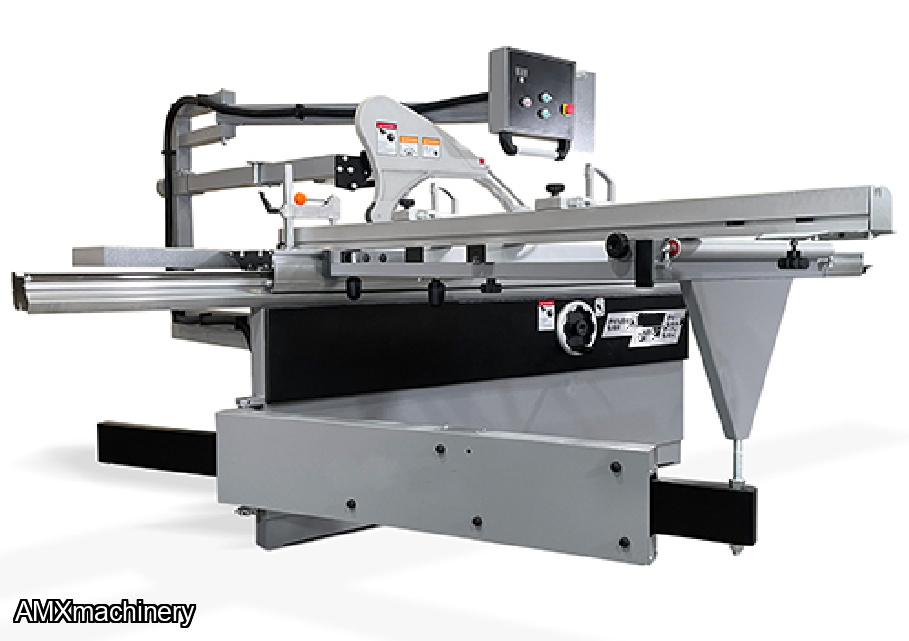

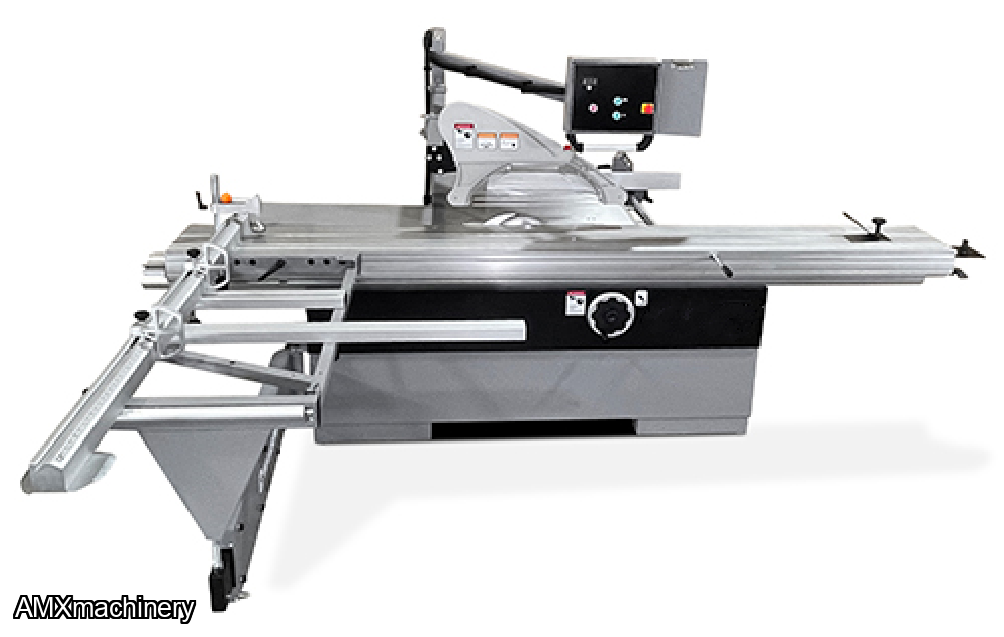

SIERRA ESCUADRADORA DESLIZANTE - 7.5 HP
SIERRA ESCUADRADORA DESLIZANTE - 7.5 HP
SIERRA ESCUADRADORA DESLIZANTE - 7.5 HP
SIERRA ESCUADRADORA DESLIZANTE - 7.5 HP
SIERRA ESCUADRADORA DESLIZANTE - 7.5 HP
SIERRA ESCUADRADORA DESLIZANTE - 7.5 HP
SIERRA ESCUADRADORA DESLIZANTE - 7.5 HP
SIERRA ESCUADRADORA DESLIZANTE - 7.5 HP
SIERRA ESCUADRADORA DESLIZANTE - 7.5 HP
SIERRA ESCUADRADORA DESLIZANTE - 7.5 HP

SIERRA ESCUADRADORA DESLIZANTE - 7.5 HP

AMXmachinery1

Contacte al Vendedor
Descripción
PARTE: 2MK-BMP.3200.IR - SIERRA ESCUADRADORA DESLIZANTE - 7.5 HP

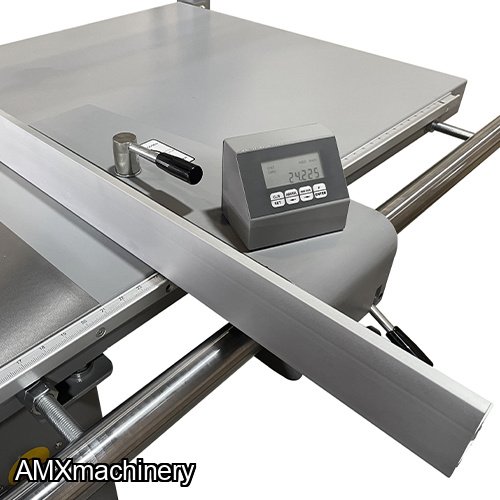

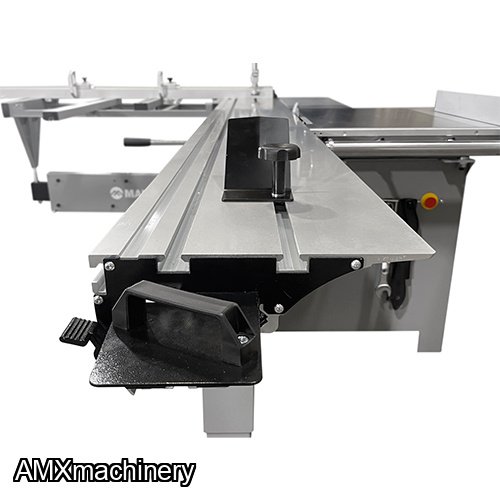

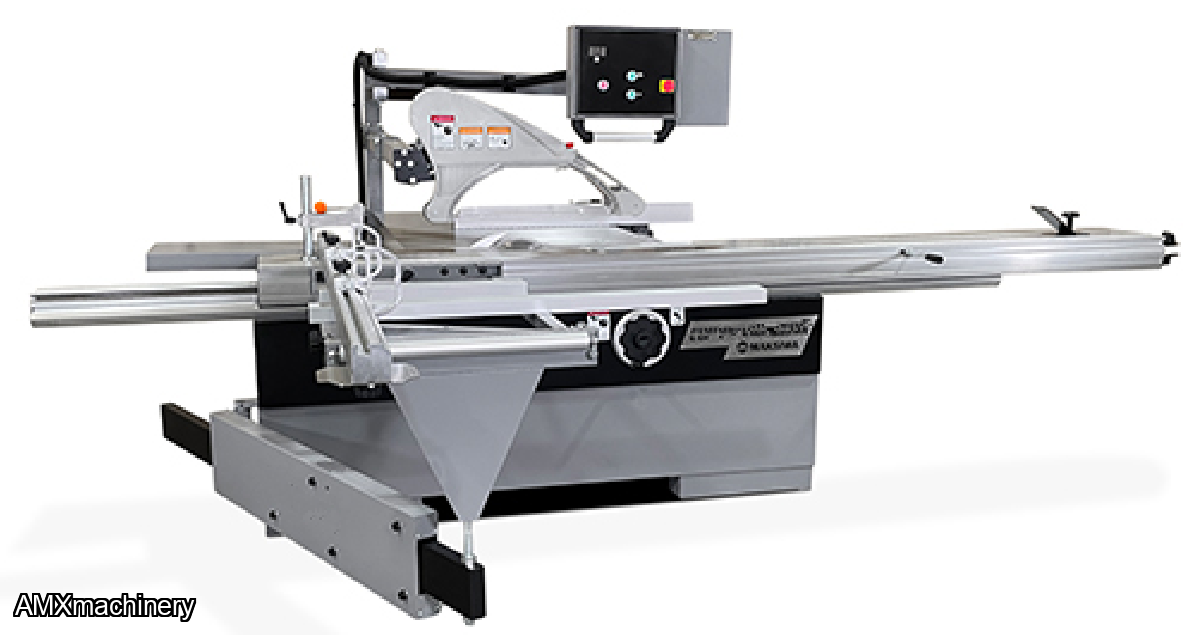

Is a powerful sliding panel saw from Maksiwa, equipped with a 7.5HP main motor and ¾ HP Scoring motor (3 phase). The 126” sliding table is constructed of anodized aluminum and runs on precision linear guide rails that gives you an ultra-smooth movement allowing you to move the table effortlessly. Designed with a European style 51″ rip fence, it has a digital readout with a micro adjustment for fine-tuning; simply lock it in place and adjust fence incrementally. The rip fence consists of a heavy-duty casting riding on a micro-polished solid steel bar.

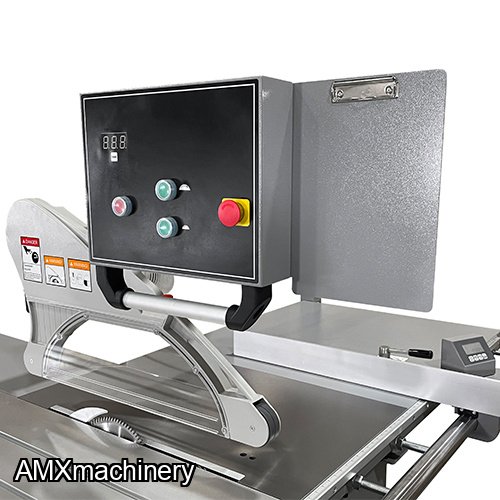

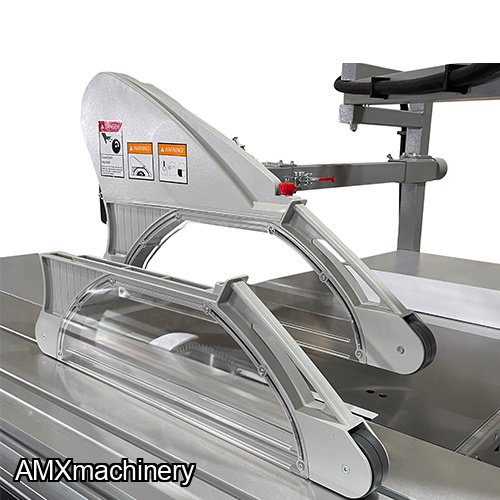

Our heavy-duty anodized aluminum crosscut fence features two solid flip-stops, telescoping function (max 120″), 45° miter and is ergonomically designed to make it easier to read the tape. The control panel is conveniently located on an eye-level position with easy access to the main operation buttons. It comes standard with two overhead guards 90° and 45° featuring a quick-change and swing-away function, easily switch from one to the other in a matter of seconds and move the guard out of the way easily if necessary. It also includes a push handle, hold-down clamp and wedge clamp.

Technical Information
Main Motor7.5 HP/ 4000 RPM 5.5 Kw
Max Blade Diameter14" | 355mm
Main Blade Arbor1 3/16" | 30mm
Main Blade Max cutting Height at 90°3 1/2" | 90 mm
Main Blade Cutting Height at 45°2 7/16" | 63mm
Scoring Motor3/4 HP / 8000 RPM .74Kw
Scoring Blade4 3/4" | 120mm
Scoring Blade Arbor25/32" | 20mm
Scoring Blade TypeConical
Max Ripping Capacity51" | 1300mm
Crosscut Capacity126" | 3200 mm
Crosscut Fence Capacity Closed/Open78" / 120" | 1981mm / 3048 mm
Machine Working Dimensions (LxWxH)132" x 137" x 75" | 3352 x 3479 x 1905 mm
Cast Iron Table Dimension (LxWxH)35" x 21" x 34" | 896 X 548 X 864 mm
Sliding Table Dimension (LxW)126" x 14 " | 3200 x 358 mm
Dust Collection Port (2)4" | 100mm
Minimum Dust Collection Requirements1000 CFM | 28m/min
Electrical Specs3 Phase 220V 30 Amps 60 Hz
Main Body Crate Dimensions (LxWxH)83" x 45" x 45" | 2108x 1143 x 1143 mm
Main Body Crate Weight Net/Gross1470 LBS | 667 KGS
Sliding Table Crate Dimensions (LxWxH)133" x 18" x 15" | 3378 x 457 x 381 mm
Sliding Table Crate Weight Net/Gross274 LBS | 124 KGS
