SIERRA OPTIMIZADORA - CORTES RECTOS

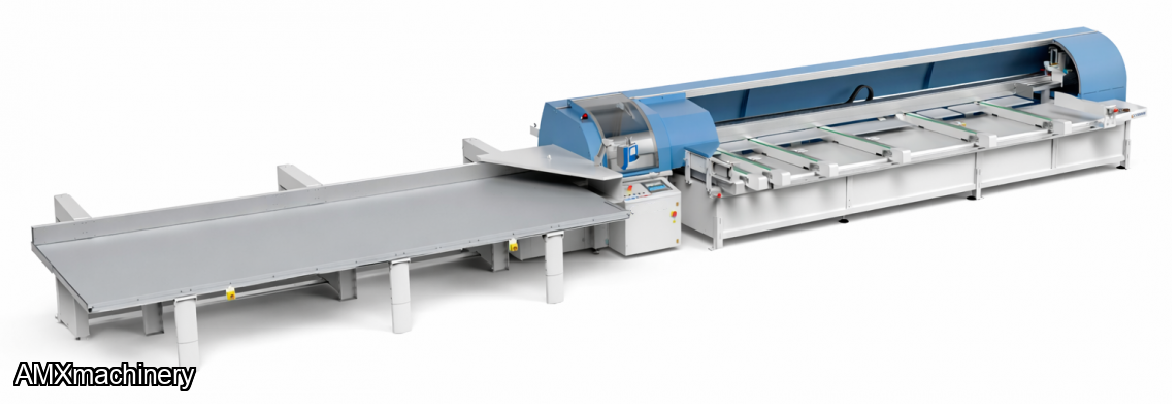

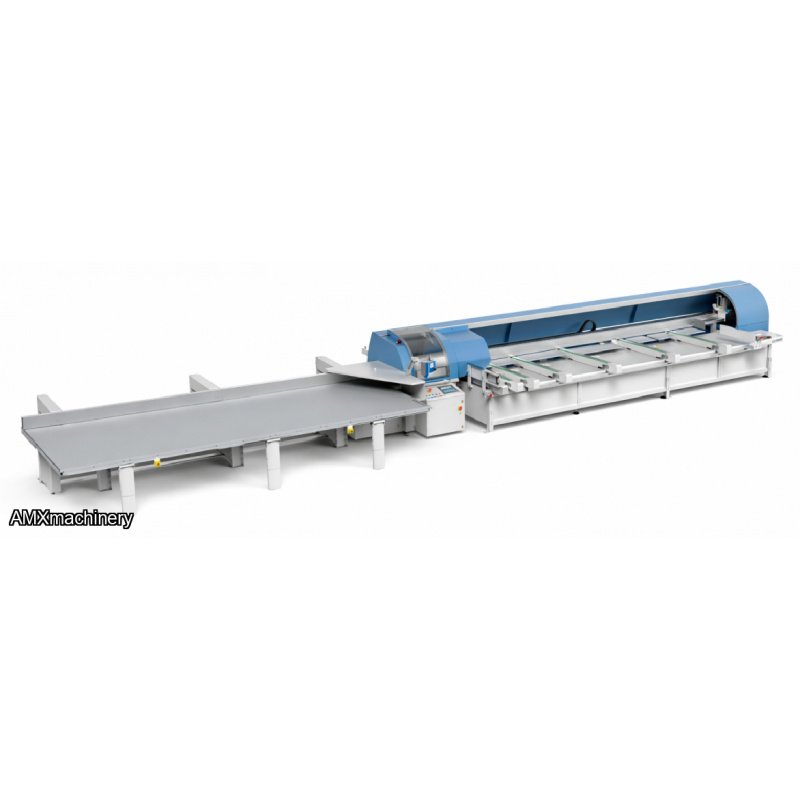

AUTOMATIC CROSSCUT SAW WITH ELECTRONIC PUSH-FEED

OPTIMISED STACK CUTTING

Is a crosscut saw electronically pusher-controlled with automatic loading and complete optimisation and defection of wood.

With its specific hydraulically driven cutting unit and a powerful 9.2 kW motor, it is the ideal solution

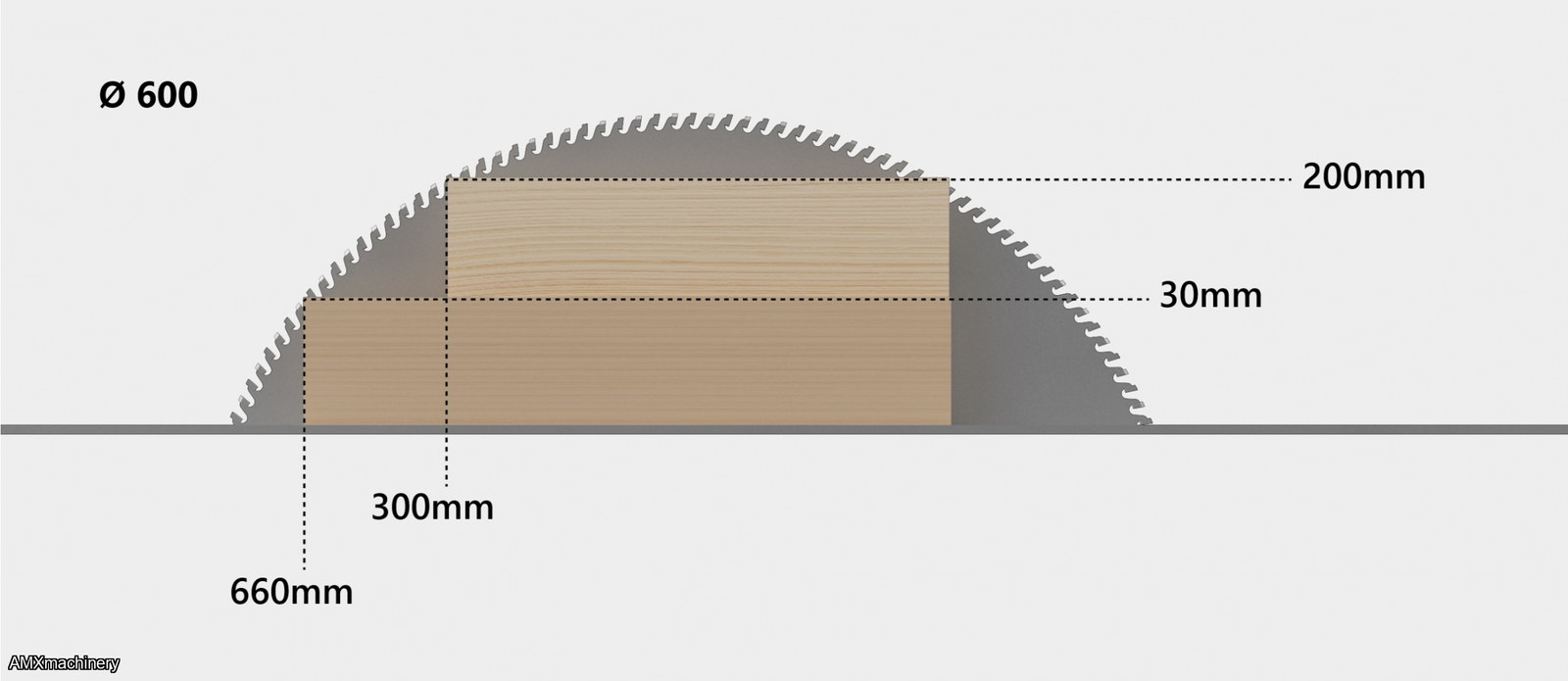

to cut in packs using the large cutting sections of the 600 mm diameter blade, precisely and quickly.

Thanks to increasingly ambitious technical choices, the electronic pusher runs on a linear guide and high-performance skids.

The push-feed system by rack, pinion and brushless motor guarantees the pushing of a stack boards of up to 750 kg.

Automatic loading takes place via 1450 mm conveyor belts and acts as a buffer for the most demanding operator.

The software architecture relies on a Beckhoff electronic control with a high-resolution 12’ touch-screen monitor,

simple and intuitive 3D graphic interface with Windows operating system.

Cutting lists can be created directly on the on-board software or imported via connection

to Ethernet or USB network ports.

The software allows the cutting list to be automatically optimised to reduce waste and optimise the machining process

according to 4 criteria: maximum length, minimum waste, sequence and priority.

A photocell allows automatic measurement of the workpiece to be cut (OPTI function).

A second photocell detects fluorescent marks for eliminating knots and defects (OPTI PLUS function).

Label and inkjet printers can be integrated into the cutting line.

On request, it is possible to implement an automatic single-bar unloading system designed for unloading stack material.

The unloader is also available with a trapdoor for the evacuation of end trim and tail trim.

Technical specifications Cutting unit

Blade diameter

• 600 mm

Blade rotation speed

• 2600 rpm

Blade motor power

• kW 9,2 (HP 12,5)

Blade driving

• Hydraulic Automatic

Working table height

• 1000 mm

Working table inclination

• 8°

Minimum crosscutting section

• 20 x 10 mm

Max operating pressure

• 6-8 bar

Extraction outlets

• 2 x Ø100 mm

Net weight

• 2100 kg

Technical specifications Push-feed

Loading Capacity

• from 4000 upto 14000 mm

Maximum speed

• 90 mt / min

Max positioning speed

• 90 mt / min

Max return speed

• 90 mt / min

Positioning accuracy

• +/- 0,4 mm

Max boards weight

• 350 kg upto 7000 mm - 750 kg from 8000 mm

Cutting execution cycle

• 4 seonds

Technical specifications Notching unit

Motor power

• kW 4 (HP 5,5) - kW 5,5 and kW 7,5 option

Max cutter diameter

• 280 mm (hole Ø40 mm)

Max cutter width

• 100 mm

Milling stroke

• 400 mm

Manual milling depth adjustment

• from 0 upto 75 mm (electronic depth positioning option)

Net weight

• 750 kg
