Descripción

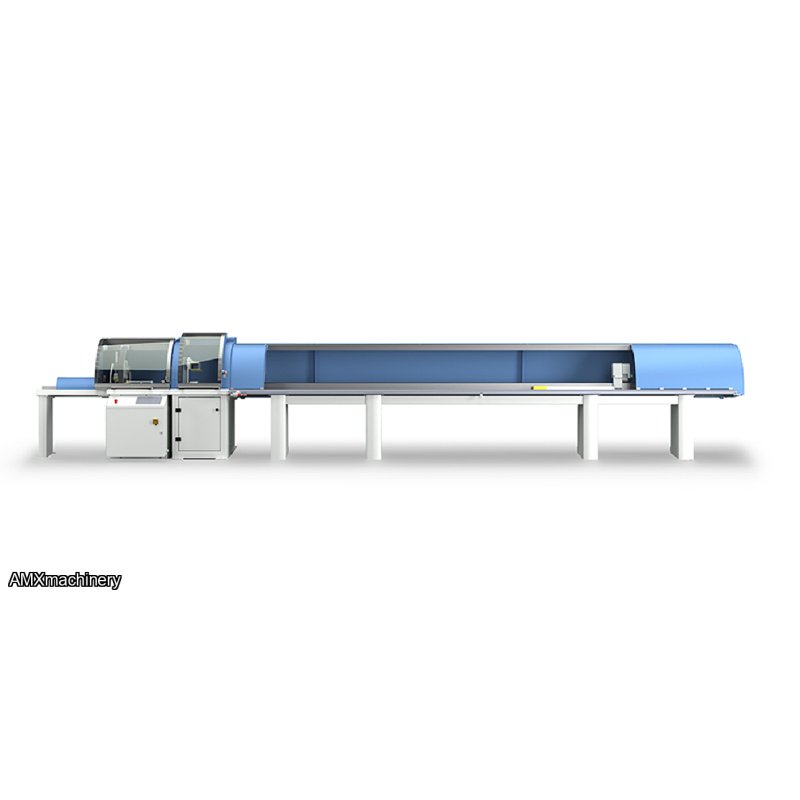

PARTE: 4ST-TR500/F MATRIX - SIERRA OPTIMIZADORA - CORTES RECTOS
AUTOMATIC CROSSCUT SAW WITH ELECTRONIC PUSH-FEED
MATRIX, A STROMAB PHILOSOPHY
Is a crosscut saw electronically pusher-controlled with complete optimisation and defection of wood.
An optimal solution for all 90° up-cutting requirements, it can work with either single bars or packs.
This special configuration integrates the notching unit, turning it into a true machining centre combining cutting and milling.
The push-feed is built with a rack and pinion feed system and brushless motor to ensure
uncompromised positioning and maximum cutting accuracy.
The software architecture relies on an electronic programmer with a high-resolution 12’ touch-screen monitor,
simple and intuitive graphic interface with Linux operating system.
The cutting lists can be created directly on the software on board the machine or imported via connection
to Ethernet or USB network ports.
The software allows automatic optimisation of the cutting list to reduce waste and optimise the machining process
according to 6 criteria: maximum length, minimum waste, sequence, table sequence, volume and priority.
A photocell allows automatic measurement of the workpiece to be cut (OPTI function).
A second photocell detects fluorescent marks for the elimination of knots and defects (OPTI PLUS function).
Possibility of integrating label and ink-jet printers to the cutting line.
Automatic loading and unloading systems can be implemented on request.
Clear choices for complex solutions.

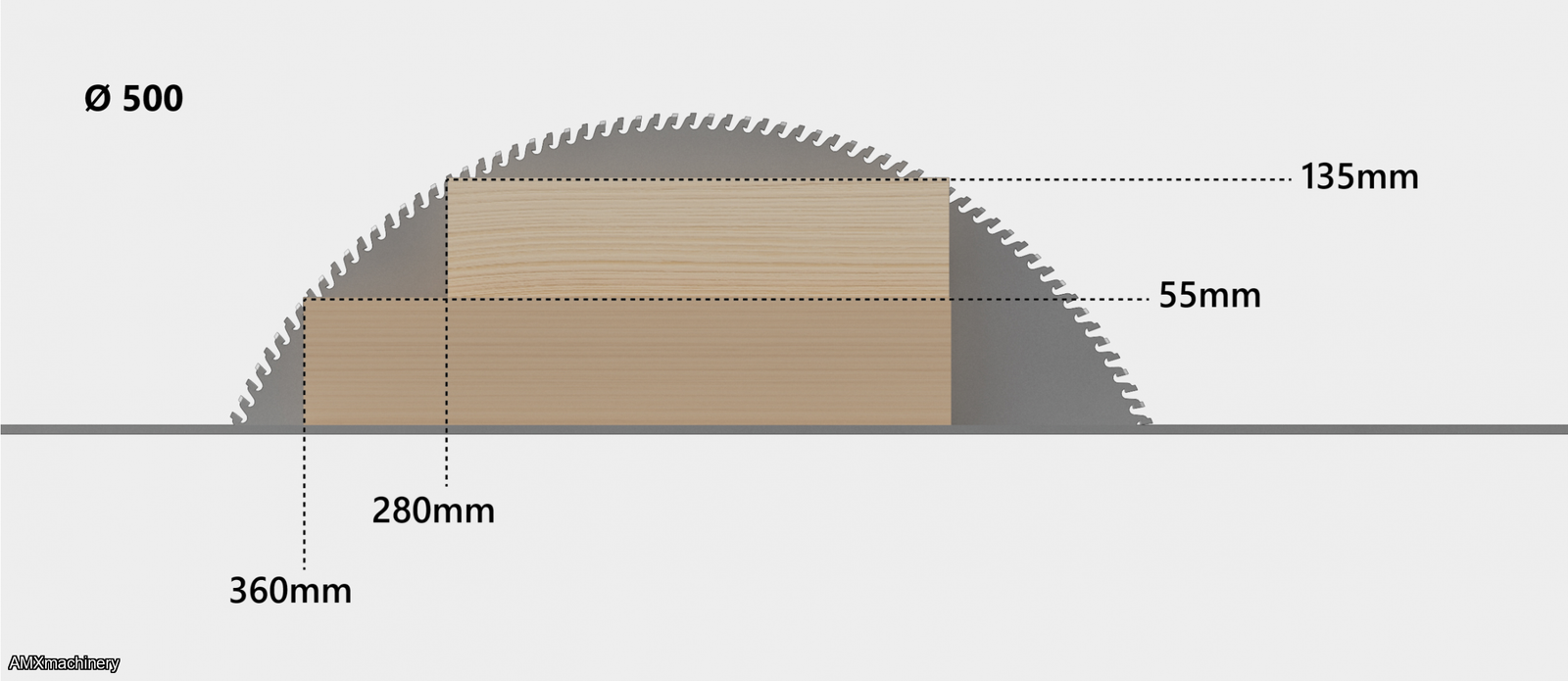

Technical specifications Cutting unit
Blade diameter
- 500 mm
Blade rotation speed
- 3500 rpm
Blade motor power
- kW 7,5 (HP 10)
Blade driving
- Pneumatic Automatic
Working table height
- 1000 mm
Working table inclination
- 8°
Minimum crosscutting section
- 20 x 10 mm
Max operating pressure
- 6-8 bar
Extraction outlets
- 3 x Ø100 mm
Net weight
- 1900 kg
Technical specifications Push-feed
Loading Capacity
- from 2000 upto 6000 mm
Maximum speed
- 90 mt / min
Max positioning speed
- 90 mt / min
Max return speed
- 90 mt / min
Positioning accuracy
- +/- 0,4 mm
Max boards weight
- 80 kg
Cutting execution cycle
- 4 seonds
Technical specifications Notching unit
Motor power
- kW 4 (HP 5,5) - kW 5,5 and kW 7,5 option
Max cutter diameter
- 280 mm (hole Ø40 mm)
Max cutter width
- 100 mm
Milling stroke
- 400 mm
Manual milling depth adjustment
- from 0 upto 75 mm (electronic depth positioning option)
Net weight
- 750 kg
