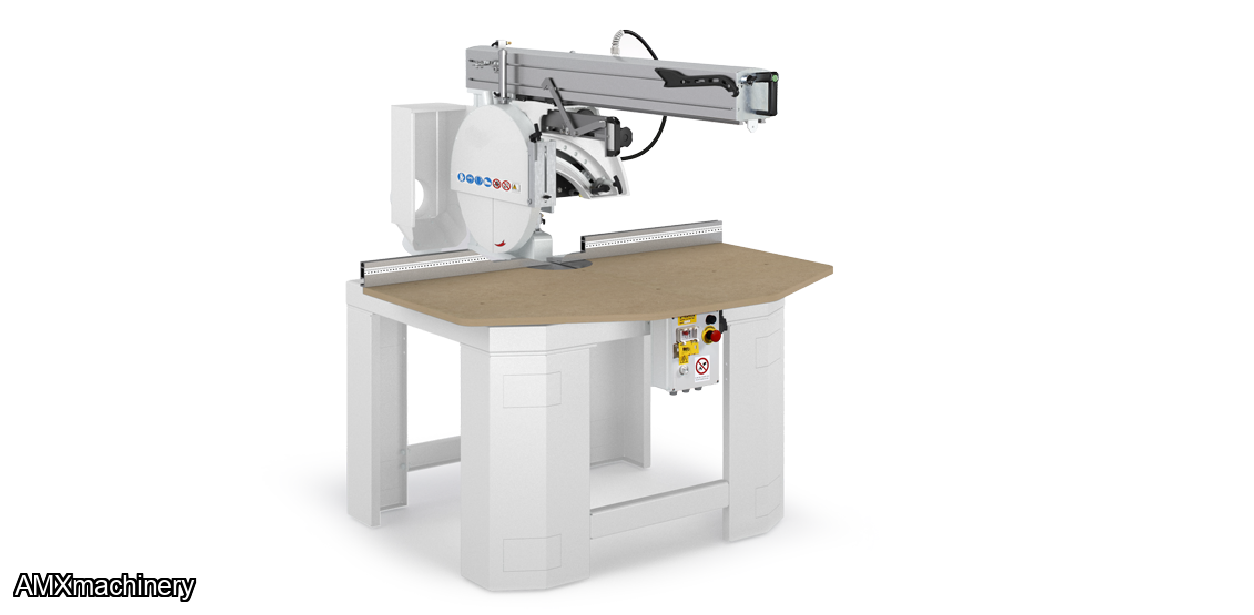

SIERRA RADIAL UNIVERSAL

Was built to meet the needs of cutting large sections in combination with blade tilting and arm rotation.

All machine movements, tilting, rotation and blade feed are manually controlled by the operator.

The machine's fixed zero point ensures that both rotation and tilting are always dimensionally stable

with respect to the length indicated on the measuring system.

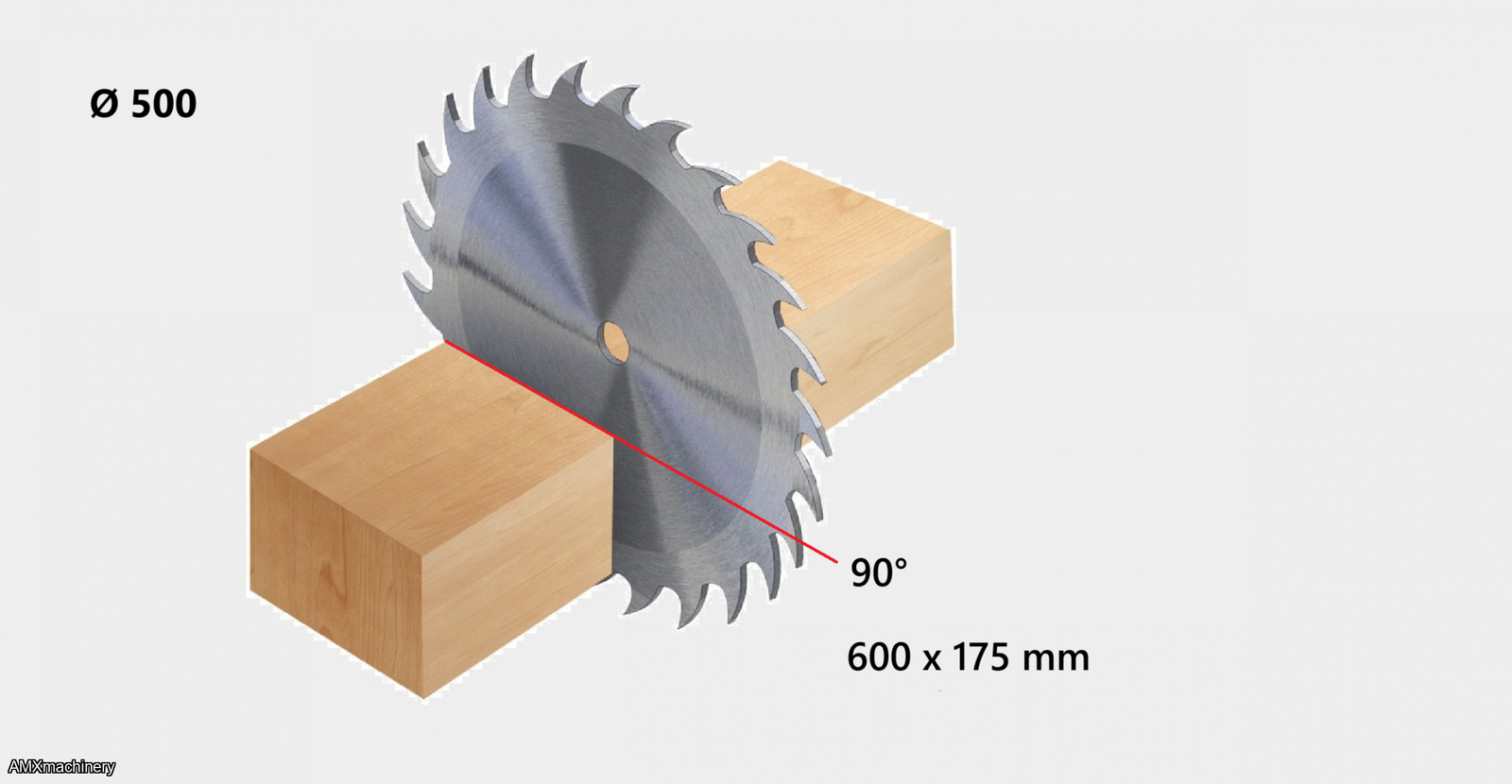

With a blade diameter of 500 mm and a motor power of 4 kW, it can cut up to 175 mm thickness and 600 mm width.

Technical specifications Cutting unit

Blade diameter

• 500 mm

Blade rotation speed

• 2800 rpm

Blade motor power

• kW 4 (HP 5,5)

Working table height

• 900 mm

Blade feeding

• Manual

Blade inclination

• 0° -45°

Blade rotation

• -45° +45°

Max operating pressure

• 6-8 bar

Extraction outlets

• 1 x Ø150 mm + 1 x Ø40 mm

Net weight

• 330 kg
