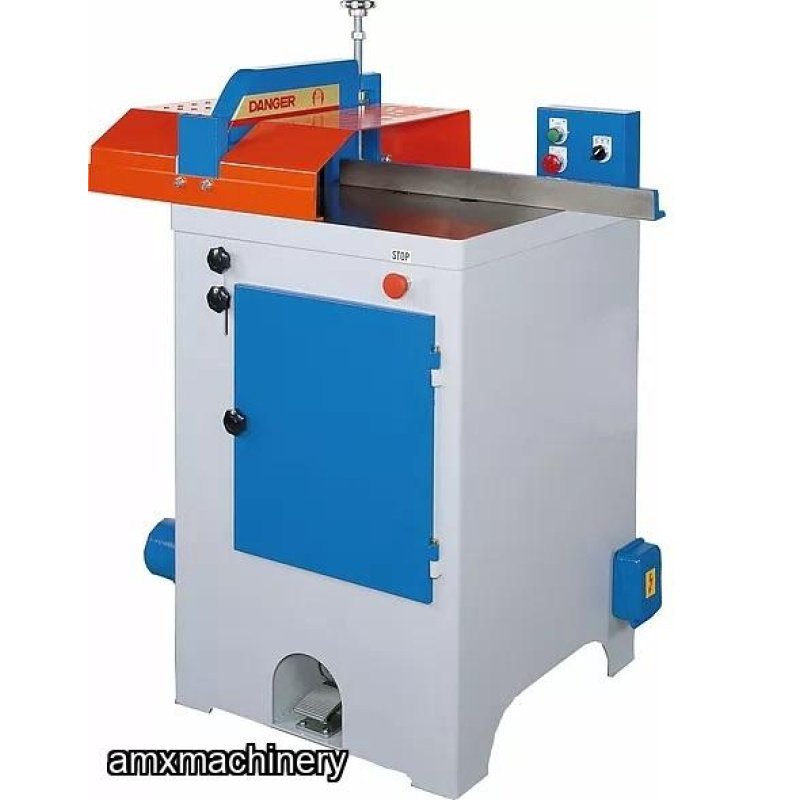

SIERRA TRONZADORA 14"

PARTE: 3YH-YFC-14 – SIERRA TRONZADORA – 5 HP – SIERRA 14” – AMX MACHINERY

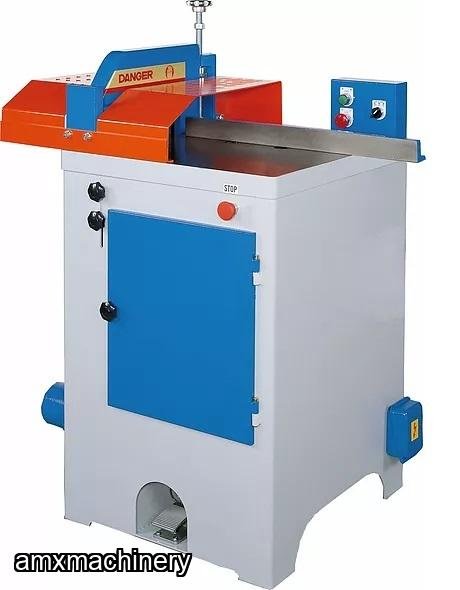

MAQUINA EN FOTO: IZQUIERDA

OPCIONAL: DERECHA

SPECIFICATIONS

Cutting capacity (Thickness x Width)：1" x 10", 2" x 9", 3" x 8"

Cycle speed：95 cuts/min

Cycle operation：Pneumatic

Saw blade diameter (Option)：ø14"

Saw arbor diameter：ø1"/ 30mm

Saw blade speed ：4100 rpm

Dust exhaust diameter：ø4" x (1)

Saw arbor motor：5HP / 7.5HP

Table size：630X 590mm

Net weight：240 kgs

Gross weight：290 kgs

Packing dimensions(LxWxH)：770x 760x 1300mm

FEATURES

​​Table surface is precision ground, assuring cutting accuracy.

The sawblade on the left side is standard machine, shown as picture. (Option, the sawbalde on the right side)

Cycle speed is adjustable and up to 95 strokes per minute.

Motion cycle is pneumatic operated and controlled by foot switch. (Option, dual hand buttons)

Powerful 5HP (7.5HP) motor drive.

T-clamp is easily adjusted for workpiece thickness variation.

Convenient and fast sawblade replacement.

Proper dust collection design to keep cabinet clean.

Roller Conveyor (Option)

Standard length is 1M. Available in any length.

Outfeed roller conveyor is with extension stop and aluminum extruded rear fence.

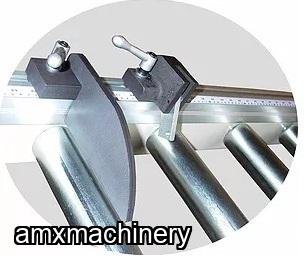

Extension Stop (Option)

Extension stop is used on outfeed roller conveyor. It is convenient for length stop and for repetitive cutting in a mass production line.

There are 3 kinds of extension stop, fix stop, flip stop and lift stop.

Safety Switch (Option)

When operator approaches the cutting area, the safety switch controls T-clamp and unable to cut workpiece.

Safety Guard (Option)

The complete safety for fast cutting operation and to avoid operator to approach the cutting area.
