PARTE: 4EL-M125400 – SIERRA VERTICAL – 1250 X 3300 MM - ELCON 125 EDGE
PARTE: 4EL-M155400 – SIERRA VERTICAL – 1550 X 3300 MM - ELCON 155 EDGE
PARTE: 4EL-M185400 – SIERRA VERTICAL – 1850 X 3300 MM - ELCON 185 EDGE
PARTE: 4EL-M220400 – SIERRA VERTICAL – 2200 X 4300 MM - ELCON 220 EDGE

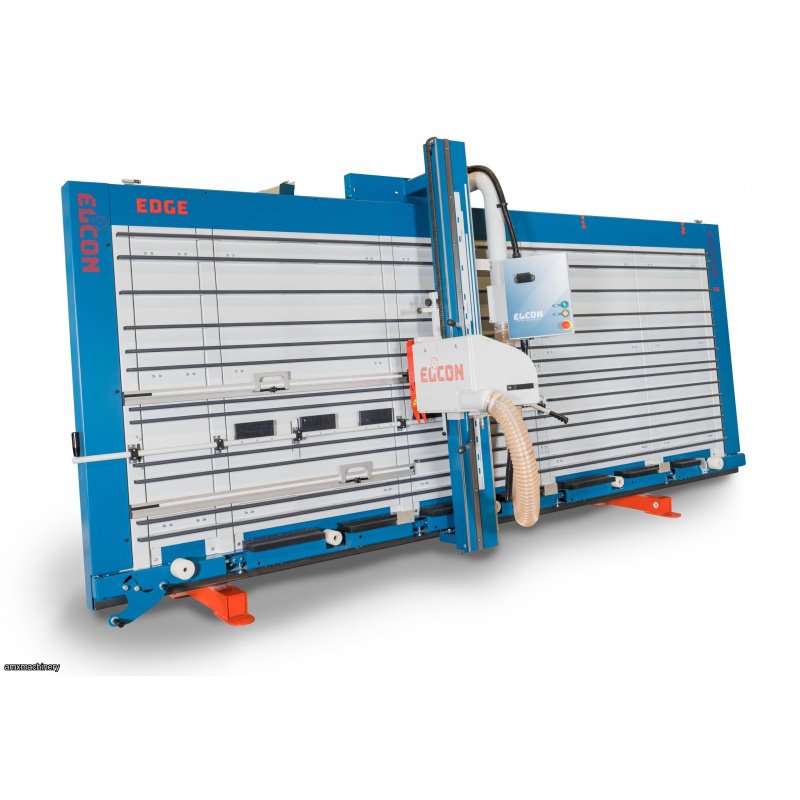

The New EDGE.
Trendy and eye catching design and well equipped.
Looking like a picture in a frame, the all new Edge was developed from scratch. It features a new and lighter frame, yet it is still as rigid as it’s bigger brothers. Ensuring a long life span whilst maintaining accuracy. It comes with an automatic shifting back frame to prevent from damaging the support strips. This is done electrically, with actuators, so no compressed air needed.

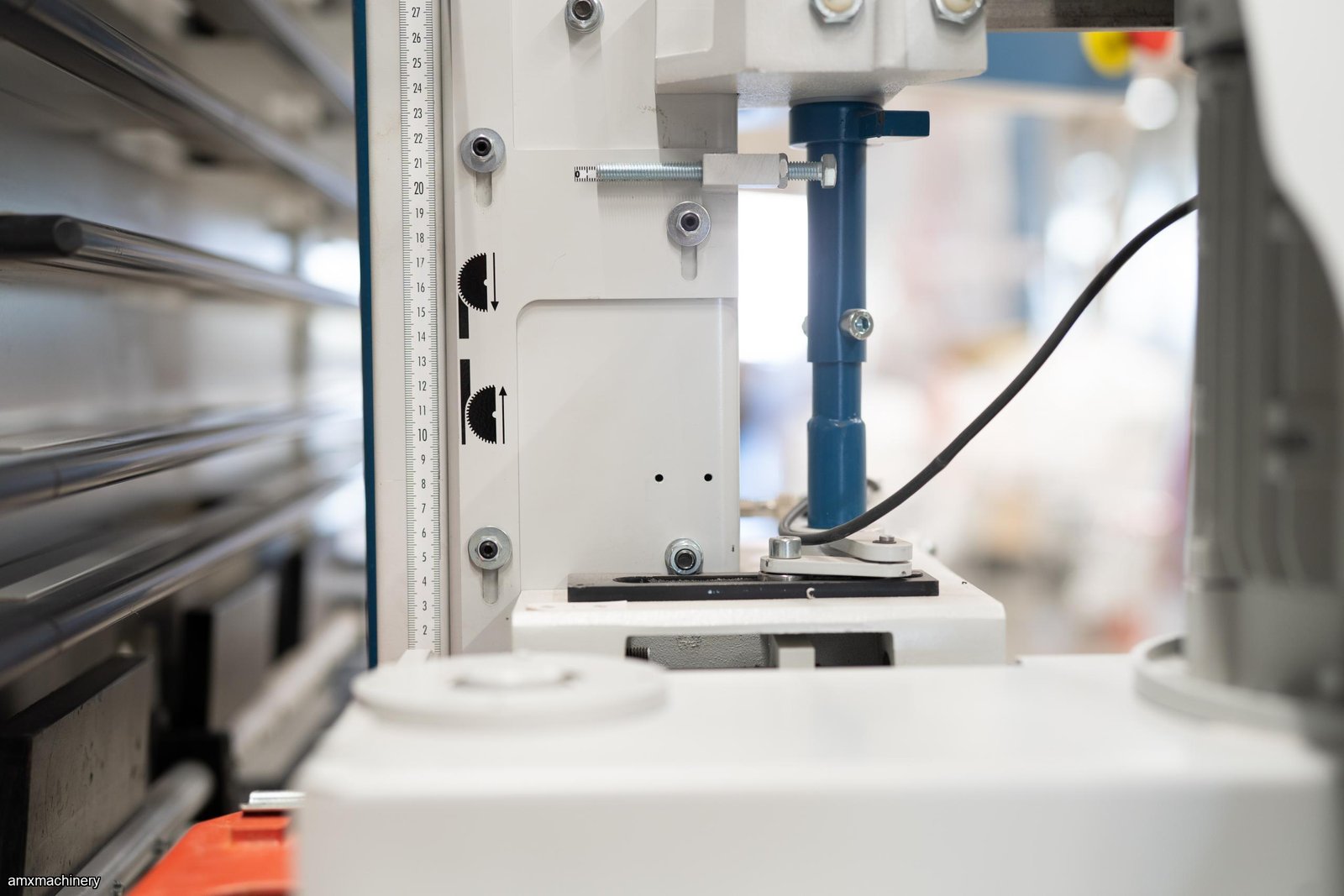

It also includes XXL support blocks, large diameter foot operated bottom rollers and a user friendly mid fence to work ergonomically, in a standing position. A 3kW-S6 motor to cut through 60mm panels and manual scoring are part of the standard equipment. For workshops with limited ceiling height or working with small panel sizes, the EDGE comes in four different heights ranging from 125 up to 155, 185 and 220cm. Standard cutting lengths are 3.300 (125,155 and 185) and 4.300 (220).
Need a longer or higher EDGE? Feel free to contact us to discuss the possibilities.
The New EDGE.
Trendy and eye catching design and well equipped.
Looking like a picture in a frame, the all new Edge was developed from scratch. It features a new and lighter frame, yet it is still as rigid as it’s bigger brothers. Ensuring a long life span whilst maintaining accuracy. It comes with an automatic shifting back frame to prevent from damaging the support strips. This is done electrically, with actuators, so no compressed air needed.
It also includes XXL support blocks, large diameter foot operated bottom rollers and a user friendly mid fence to work ergonomically, in a standing position. A 3kW-S6 motor to cut through 60mm panels and manual scoring are part of the standard equipment. For workshops with limited ceiling height or working with small panel sizes, the EDGE comes in four different heights ranging from 125 up to 155, 185 and 220cm. Standard cutting lengths are 3.300 (125,155 and 185) and 4.300 (220).
Need a longer or higher EDGE? Feel free to contact us to discuss the possibilities.
