TALADRO HORIZONTAL - CON CABEZAL SENCILLO O MULTIPLE

PARTE: 2CA-BR-25 - TALADRO HORIZONTAL - CON CABEZAL SENCILLO O MULTIPLE

VIAJE Y SUJECION NEUMATICO

Standard with Drill Chuck

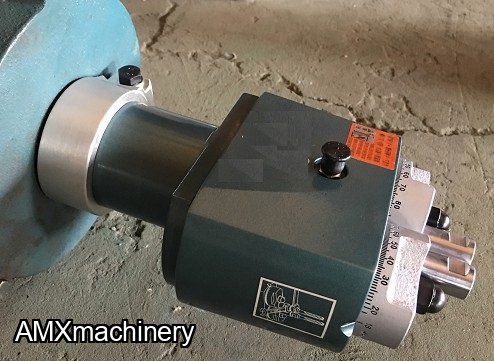

Optional with Multiple Drill Head

Features:

• Pneumatic clamp and drill head travel, for fast and easy operating.

• Precision large travel piston to insure accurate drilling position.

• Heavy-duty cast iron frame for durability long period of use.

• Suitable and affordable for industrial and small workshop use.

• Capable of using “multiple drill heads" to get any drilling figure.

All Features:

• The machine is ruggedly constructed throughout and convenient operation facilitated by the use

of a foot switch control.

• Multiple spindle gear heads supplied as optional.

• Workpiece clamping and drill head feeding is pneumatically operated for a high efficiency

performance.

• Furnished with a spray gun for cleaning dust.

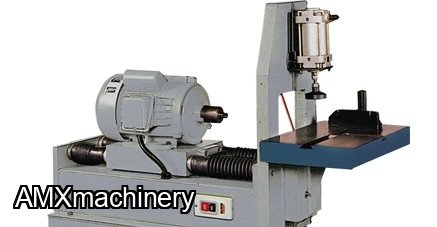

• Cast iron base and table for durable usage.

Optional Accessories:

• Multiple Drill Head

SPECIFICATIONS

Horizontal Motor 2 HP

Drill Speed 3450 RPM

Drill Bit Type 7/16" x 14UNC

Spindle Stroke (Max.) 5"

Table Size (W x L) 12" x 10"

Chuck 5/8"

Multi Drill Head Available YES

Air Clamp 1

Standard Drill 1

Max. Drill Optional Drill Head

N.W. 256 LBS

G.W. 360 LBS
